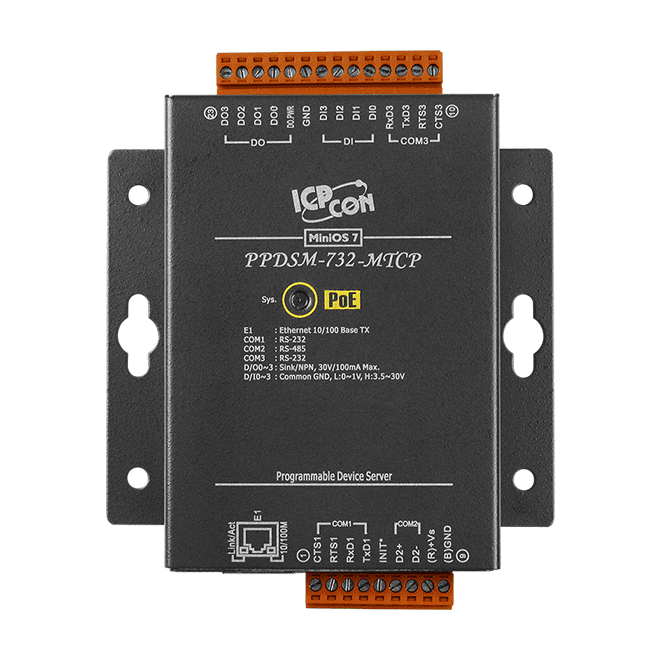

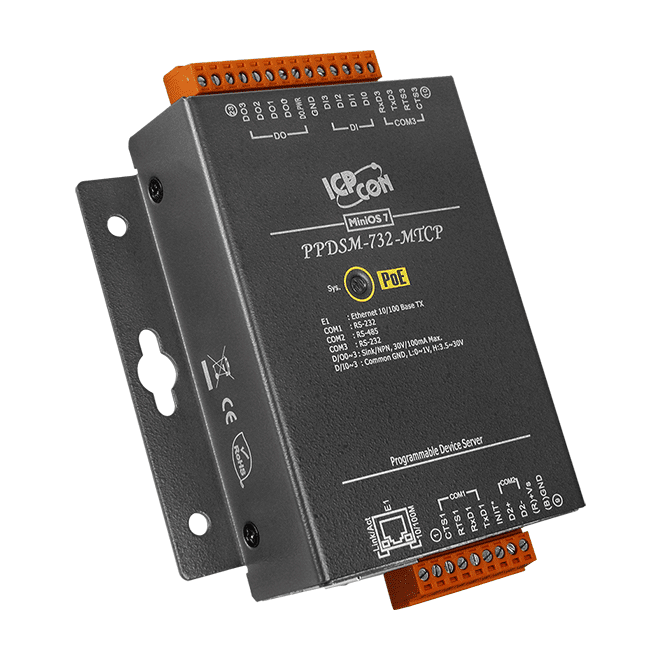

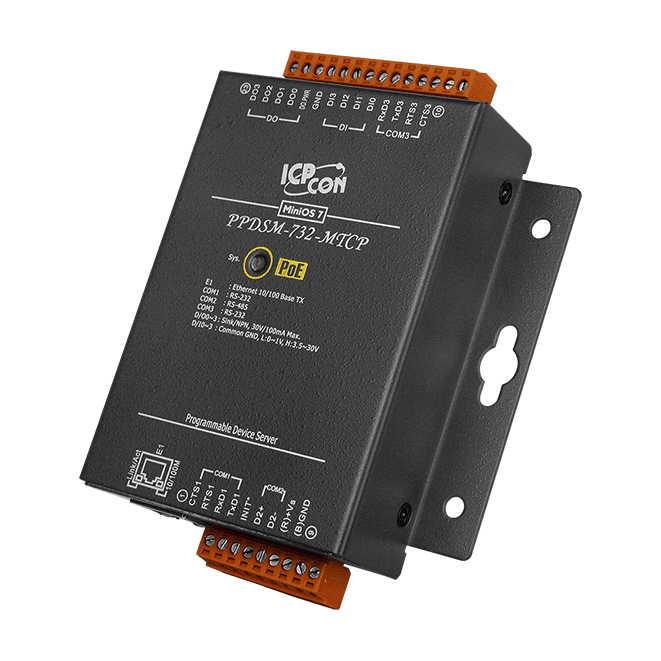

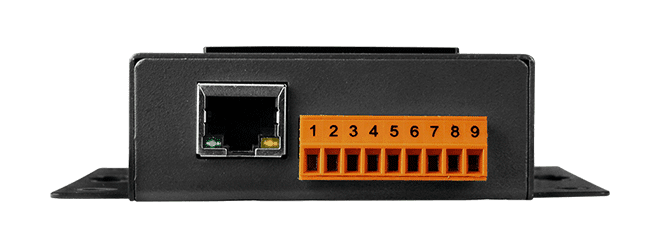

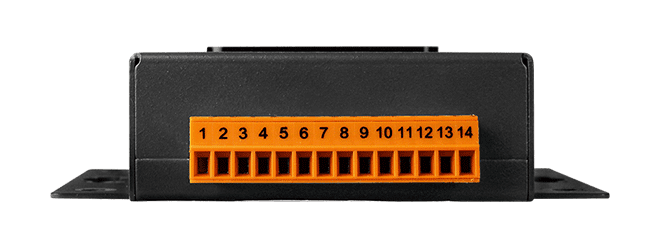

PPDSM-732-MTCP Programmable Device Server, 2x RS-232/1x RS-485, PoE
Metal-cased programmable serial-to-Ethernet device server with 2x RS-232, 1x RS-485, 4 DI, 4 DO, PoE and a Modbus TCP to RTU/ASCII gateway. Includes CA-0910 cable.
- Connects two RS-232 ports and one RS-485 port to Ethernet, with Virtual COM support via VxComm
- Modbus TCP to RTU/ASCII gateway for SCADA and HMI communications
- Four dry-contact digital inputs with latched D/I and counter functions
- Four open-collector NPN digital outputs rated 30 VDC, 100 mA max.
- IEEE 802.3af Class 1 PoE or +12 ~ 48 VDC terminal block power
- Metal case with watchdog timer and -25 ~ +75 °C operating temperature
3 770,10 kr per st.
| 1–9 st. | 3 770,10 kr | |
|---|---|---|
| 10–30 st. | 3 659,54 kr | −3 % |
| 31+ st. | 3 582,14 kr | −5 % |
Produktinformation "PPDSM-732-MTCP Programmable Device Server, 2x RS-232/1x RS-485, PoE"
PPDSM-732-MTCP is a programmable device server that links RS-232 and RS-485 serial devices to an Ethernet network. Its built-in VxComm utility can map the serial ports to standard COM ports on a Windows PC, so existing serial software can keep working over the network without rewriting the application.
The unit also acts as a Modbus TCP to RTU/ASCII gateway, allowing SCADA and HMI systems that speak Modbus TCP to reach Modbus RTU or ASCII devices. Four dry-contact digital inputs with latched D/I and counter functions, and four open-collector NPN digital outputs, add basic discrete I/O at the same node.
Power can come from IEEE 802.3af Class 1 Power over Ethernet or from a +12 ~ 48 VDC terminal block. The metal case, watchdog timer and -25 ~ +75 °C operating range suit demanding factory and building environments. The ordering code includes a CA-0910 cable.
Applications
- Factory Automation
- Building Automation
- Home Automation
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus TCP |
| Digital inputs: | 4 |
| Digital outputs: | 4 |
| Ports: | 2x RS-232, 1x RS-485, 1x RJ-45 |
| PoE: | IEEE 802.3af Class 1 |
| Power input: | +12 ~ 48 VDC, PoE |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | Wall |
| Housing: | Metal |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles. |
| Flash | 512 KB ; Erase unit is one sector (64 KB) ; 100,000 erase/write cycles |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x Power/PoE |
| Digital Input | |
| Channels | 4 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source, Common Ground |
| ON Voltage Level | +3.5 ~ +30 V |
| OFF Voltage Level | +1 V max. |
| Digital Output | |
| Channels | 4 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| Load Voltage | 30 VDC, max. |
| Load Current | 100 mA, max. |
| Ethernet | |
| Ports | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| COM Ports | |
| Ports | 2 x 5-wire RS-232 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Even, Odd, Mark, Space None parity is required when using 8 data bits and 2 stop bits on COM1/COM2. |
| Data Bit | 7, 8: for COM1 and COM2 5, 6, 7, 8: for COM3 |
| Stop Bit | 1, 2: for COM1 ~ COM3 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 2.2 W |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 102 mm x 29 mm x 125 mm (W x L x H) |
| Installation | Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
