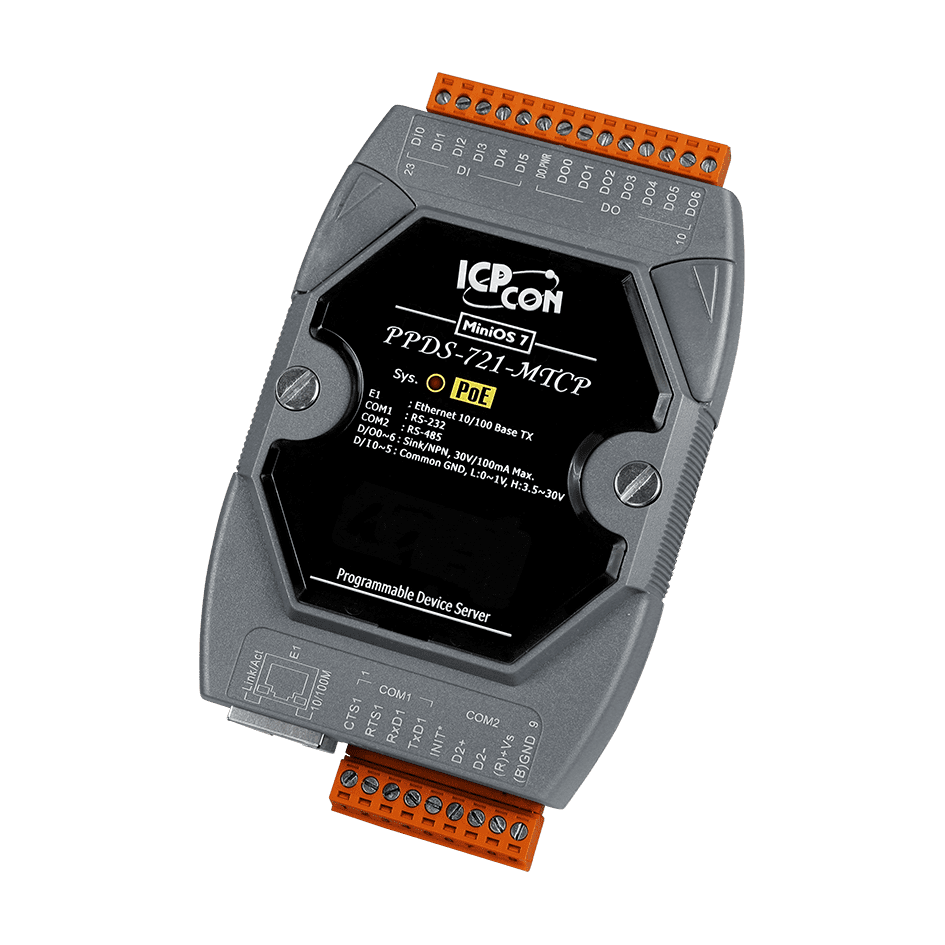

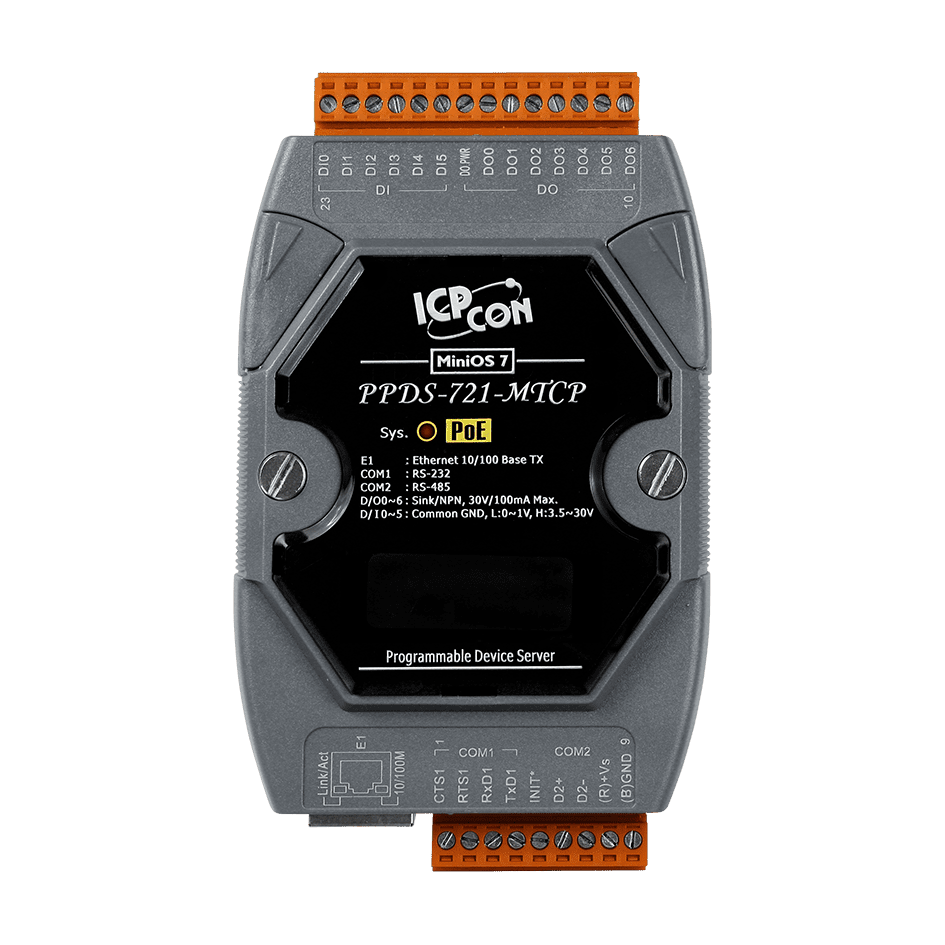

PPDS-721-MTCP Programmable Serial-to-Ethernet Device Server, Modbus Gateway
Programmable serial-to-Ethernet device server with RS-232 and RS-485 ports, 6 digital inputs, 7 open-collector outputs, PoE and a Modbus TCP to RTU/ASCII gateway.
- Serial-to-Ethernet bridging with one RS-232 and one RS-485 port
- VxComm utility provides virtual COM ports for Windows PCs
- Modbus TCP to RTU/ASCII gateway for SCADA and HMI communication
- 6 digital inputs (wet contact, source type) with latched D/I and counter functions
- 7 open-collector digital outputs (NPN sink), 30 VDC and 100 mA max. per channel
- IEEE 802.3af Class 1 PoE or +12 ~ 48 VDC terminal block power
2 487,60 kr per st.
| 1–9 st. | 2 487,60 kr | |
|---|---|---|
| 10–30 st. | 2 410,21 kr | −3 % |
| 31+ st. | 2 365,98 kr | −5 % |
Produktinformation "PPDS-721-MTCP Programmable Serial-to-Ethernet Device Server, Modbus Gateway"
The PPDS-721-MTCP links an RS-232 and an RS-485 serial device to an Ethernet network. Its VxComm utility can map the serial ports to virtual COM ports on a Windows PC, so existing COM-based software can reach serial equipment across the network without changes to the application.
Beyond simple serial bridging, the unit runs a programmable Xserver application on its built-in MiniOS7 real-time operating system and can act as a Modbus TCP to RTU/ASCII gateway for SCADA and HMI systems. It also provides latched digital inputs and counter functions for local event handling on site.
Power can be supplied over Ethernet using IEEE 802.3af Class 1 PoE, or from a +12 ~ 48 VDC terminal block. The CA-0910 cable is included with this ordering code, and the unit mounts on a DIN-rail or a wall.
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus TCP |
| Digital inputs: | 6 |
| Digital outputs: | 7 |
| Ports: | 1x RS-232, 1x RS-485, 1x Ethernet |
| PoE: | IEEE 802.3af Class 1 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles. |
| Flash | 512 KB ; Erase unit is one sector (64 KB); 100,000 erase/write cycles |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x Power/PoE |
| Digital Input | |
| Channels | 6 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Source, Common Ground |
| ON Voltage Level | +3.5 ~ +30 V |
| OFF Voltage Level | +1 V max. |
| Digital Output | |
| Channels | 7 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink(NPN) |
| Load Voltage | 30 VDC, max. |
| Load Current | 100 mA, max. |
| Ethernet | |
| Ports | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| COM Ports | |
| Ports | 1 x 5-wire RS-232 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Even, Odd, Mark, Space None parity is required when using 8 data bits and 2 stop bits on COM1/COM2. |
| Data Bit | 7, 8: for COM1 and COM2 |
| Stop Bit | 1, 2: for COM1 ~ COM2 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 2.2 W |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 mm x 35 mm x 123 mm (W x L x H) |
| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
