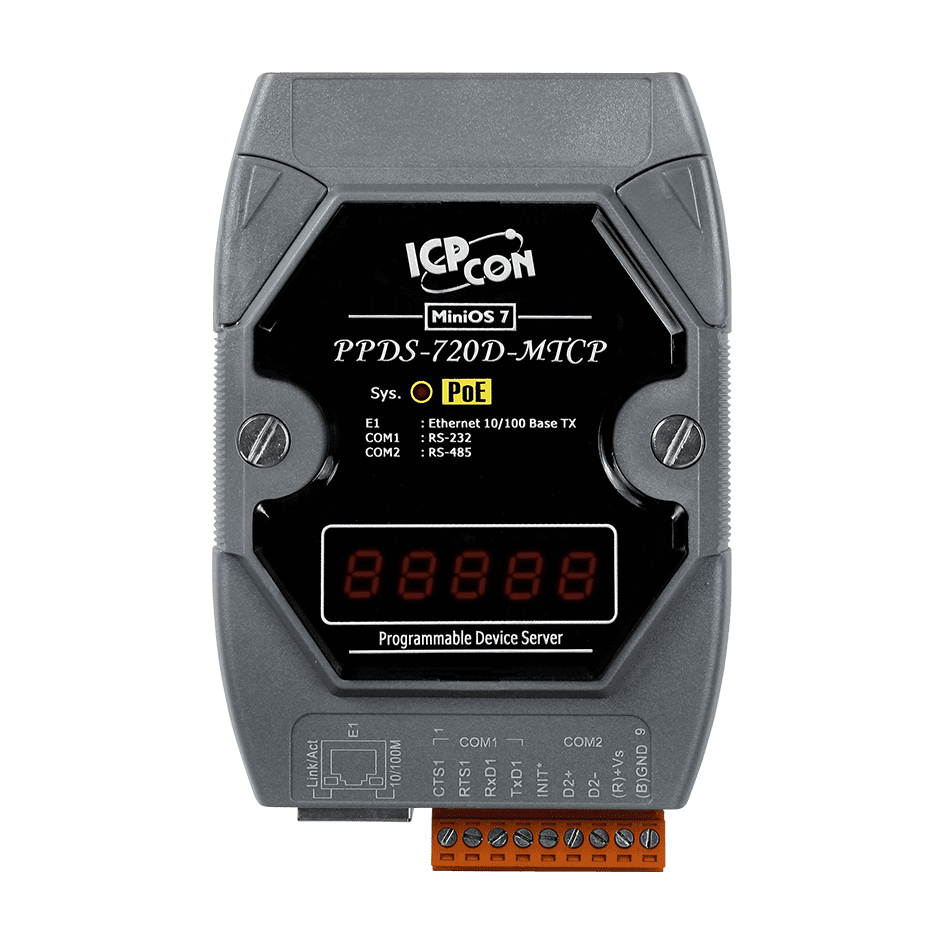

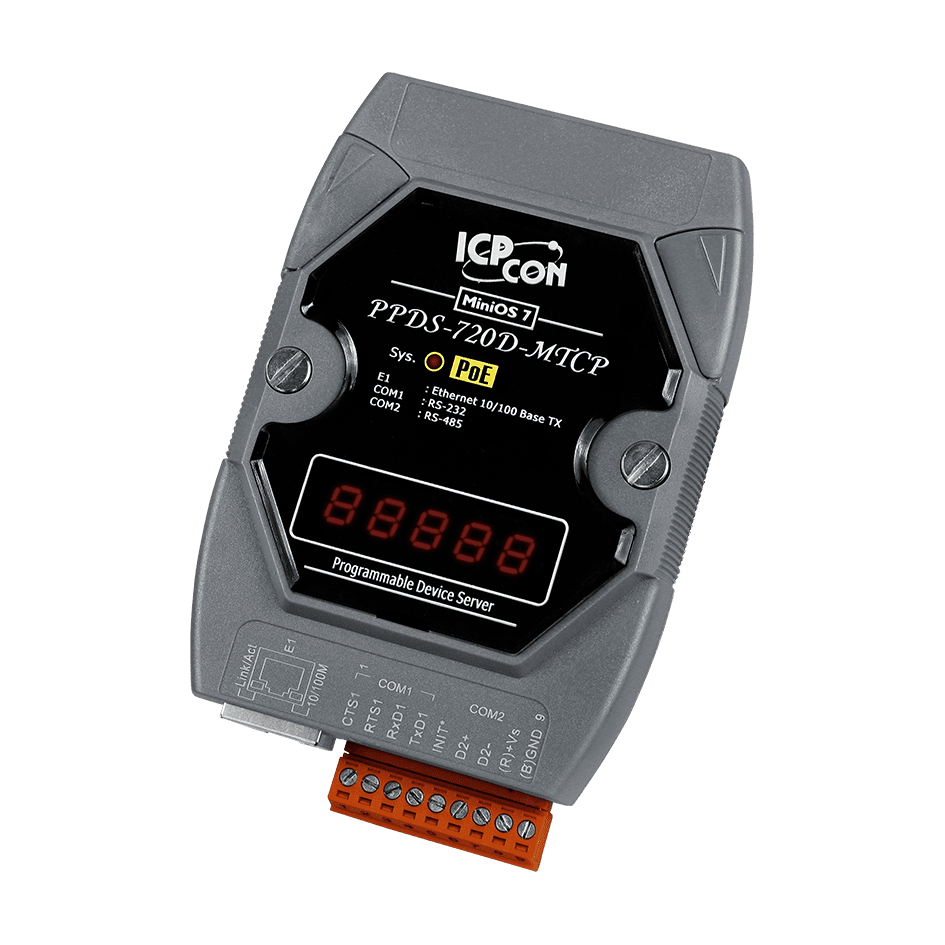

PPDS-720D-MTCP Serial-to-Ethernet Device Server with PoE, 1x RS-232/RS-485
Programmable serial-to-Ethernet device server with one RS-232 and one RS-485 port, PoE and a Modbus TCP to RTU/ASCII gateway for bringing serial devices onto Ethernet.
- Modbus TCP to RTU/ASCII gateway for SCADA and HMI communication
- Programmable device server with Xserver structure on built-in MiniOS7
- IEEE 802.3af Class 1 PoE or +12 ~ 48 VDC terminal block power input
- One RS-232 and one RS-485 serial port with 115200 bps maximum baud rate
- RS-485 port with self-tuner ASIC controller
- Serial ports with +/-4 kV ESD protection circuit and watchdog timer
2 432,32 kr per st.
| 1–9 st. | 2 432,32 kr | |
|---|---|---|
| 10–30 st. | 2 354,93 kr | −3 % |
| 31+ st. | 2 310,70 kr | −5 % |
Produktinformation "PPDS-720D-MTCP Serial-to-Ethernet Device Server with PoE, 1x RS-232/RS-485"
The PPDS-720D-MTCP connects a serial RS-232 device and an RS-485 device to an Ethernet network, so equipment with only serial ports can be reached over TCP/IP. The bundled VxComm utility can map the serial ports to standard COM ports on Windows PCs, allowing existing COM-port software to address networked devices.
Beyond simple serial-to-Ethernet bridging, the unit runs a programmable Xserver structure on the built-in MiniOS7 platform and can act as a Modbus TCP to RTU/ASCII gateway for SCADA and HMI systems that communicate over Modbus TCP. The RS-485 port includes a self-tuner ASIC controller, and the serial ports carry +/-4 kV ESD protection.
Power can come from IEEE 802.3af Class 1 PoE over a standard Category 5 cable or from a +12 ~ 48 VDC terminal block. The removable terminal block eases wiring, and the unit mounts on DIN-rail or wall. It is rated for -25 ~ +75 °C operation and carries CE, UKCA, FCC, RoHS and WEEE marks. The ordering code includes the CA-0910 cable.
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus TCP |
| Ports: | 1 x RS-232, 1 x RS-485, 1 x Ethernet |
| PoE: | IEEE 802.3af, Class 1 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles |
| Flash | 512 KB; Erase unit is one sector (64 KB); 100,000 erase/write cycles |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x Power 5 x digit 7 Segment |
| Ethernet | |
| Ports | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| COM Ports | |
| Ports | 1 x 5-wire RS-232 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Even, Odd, Mark, Space None parity is required when using 8 data bits and 2 stop bits on COM1/COM2. |
| Data Bit | 7, 8: for COM1 and COM2 |
| Stop Bit | 1, 2: for COM1 ~ COM2 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 2.9 W |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 mm x 35 mm x 112 mm (W x L x H) |
| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
