PMC-2841M IIoT Power Meter Concentrator (Metal Case), Up to 48 Modules
Metal-cased IIoT power meter concentrator that aggregates Modbus power meters and I/O modules, with browser-based configuration, IF-THEN-ELSE logic and MQTT, SNMP and CGI connectivity.
- Web-based configuration with no extra software tool and no programming required
- Connects up to 48 modules: Modbus power meters and Modbus I/O, via RS-485 (COM3/COM4, up to 16 modules each) and Ethernet (up to 16 Modbus TCP modules)
- Built-in IF-THEN-ELSE logic engine for power demand management and load shedding
- Real-time and historical power data display, statistics reports and data logging
- LINE, Telegram, WeChat and email message notification
- Modbus TCP/RTU, SNMP, MQTT, FTP and CGI protocol support
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "PMC-2841M IIoT Power Meter Concentrator (Metal Case), Up to 48 Modules"

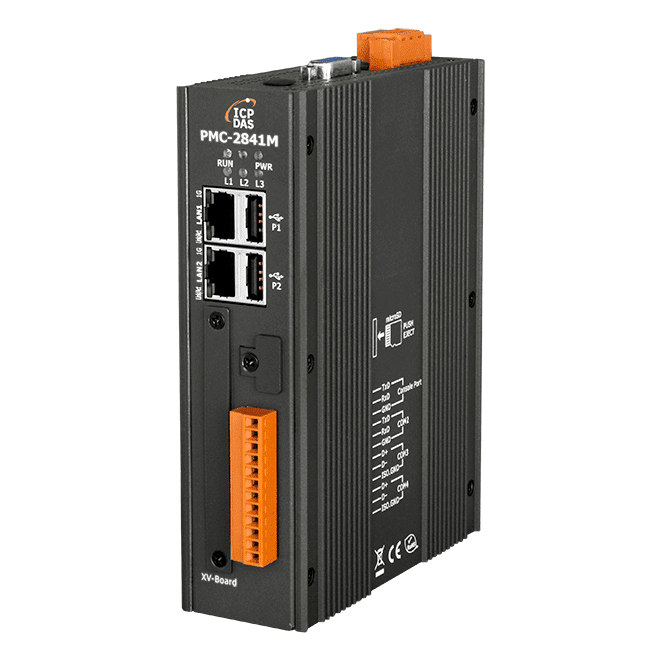

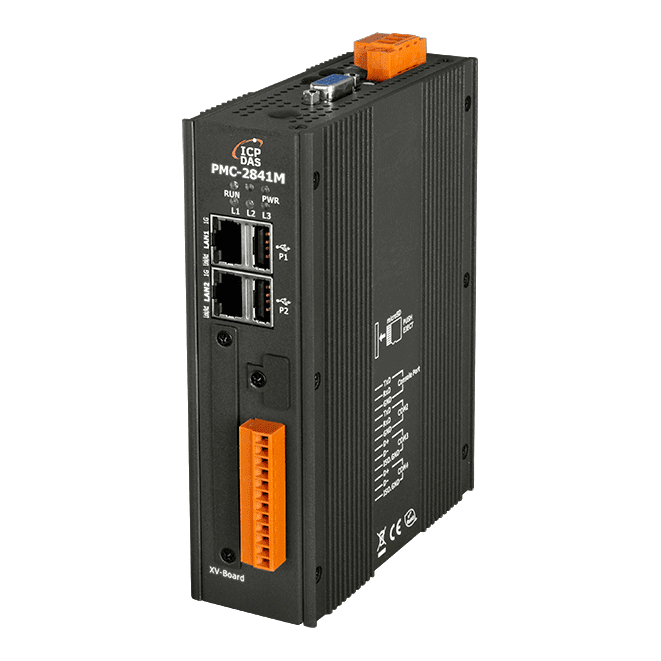

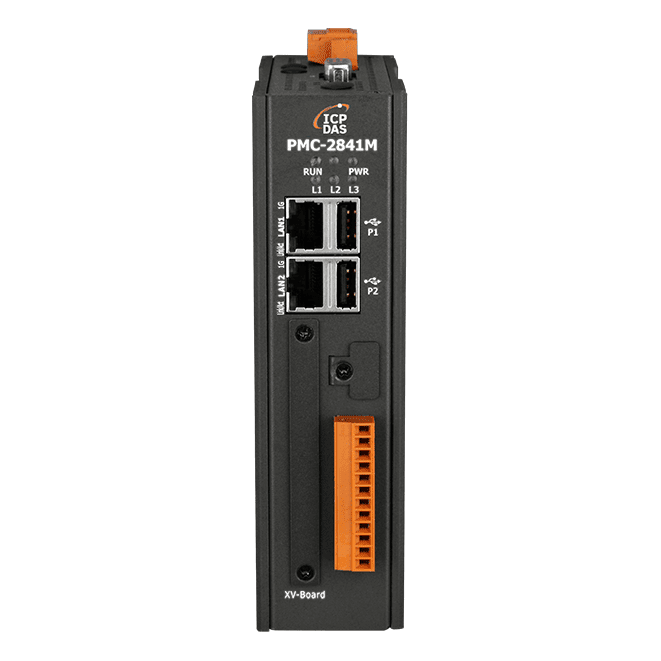

The PMC-2841M CR is a DIN-rail power meter concentrator for energy monitoring systems. It collects data from up to 48 Modbus devices, including ICP DAS Modbus power meters and Modbus I/O modules, over RS-485 and Ethernet, and presents readings in real time or as historical records with power data statistics reports.
Configuration is handled entirely through the built-in web interface, so no additional software tool or programming is needed. Control logic is set up on web pages using a built-in IF-THEN-ELSE engine, which supports power demand management and can trigger load shedding where required. Alarms can be sent by LINE, Telegram, WeChat or email.
For IoT and cloud integration, the unit supports Modbus TCP and RTU, SNMP, MQTT, FTP and CGI, along with connection to Microsoft Azure, IBM Bluemix and the IoTstar cloud management software. Security options include HTTPS, VPN, SNMP v3, SFTP, FTPS and blacklist/whitelist filtering. The unit carries CE, UKCA, FCC, RoHS and WEEE marks.
Applications
- Energy measurement, monitoring and management
| Product type: | Power Meter Concentrator |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus RTU, Modbus TCP, MQTT, SNMP |
| Ports: | 2 x RJ-45, 3 x COM |
| Isolation: | 2500 VDC (COM3, COM4) |
| Power input: | 12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Specifikationer
| Software | |
|---|---|
| Protocol | • Modbus TCP & Modbus RTU • FTP Client (Support SFTP/FTPS) & Server (Support TLS Encryption) • SNMP v2c/v3 & SNMP Trap • MQTT Client (Message Publish & Subscribe; Support SSL/TLS) • CGI Command (Sending & Receiving) • Active I/O (Modbus TCP Master/MQTT Publish/SNMP Trap) • DDNS • VPN |
| Function | • Web Interface for Configuration • IF-THEN-ELSE Logic operation (Unlimited rule supported) • Power meters & I/O modules monitoring and control • Data Logger operation • Timer operation (Unlimited set supported) • Schedule operation (More Powerful; Unlimited set supported) • Internal Register operation (70 set supported) • Instant message sending function (LINE, Telegram, WeChat) • non-SSL & SSL Email sending function • SNTP Time Synchronization |
| Power Management | • Power Data Display • Historical Power Data Report • Power Demand Management • PUE Setting and Display |
| IoT Service Integration | • ICP DAS IoTstar IoT Cloud Management Software • Microsoft Azure IoT Cloud platform • IBM Bluemix IoT Cloud platform |
| CPU Module | |
| CPU | Quad-core ARM CPU, 1.6 GHz/Core |
| Storage Expansion | microSD socket with 32 GB microSD card (support up to 2 TB microSDHC card) |
| LED Indicators | |
| Status | 1 x Power 1 x Running |
| I/O Expansion | |
| I/O Type | XV-board |
| Remote Module Support | M-7000/DL/IR Series Module Modbus RTU Slave Module Modbus TCP Slave Module |
| Power Meter | PM Series Modbus meter |
| Ethernet | |
| Ports | RJ-45 x 2, 10/100/1000 Based-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | COM 1: Reserved COM 2: RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max. COM 3: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. COM 4: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. |
| Power | |
| Input Range | 12 ~ 48 VDC |
| Consumption | 10 W |
| Mechanical | |
| Dimensions (mm) | 42 × 164 × 129 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
