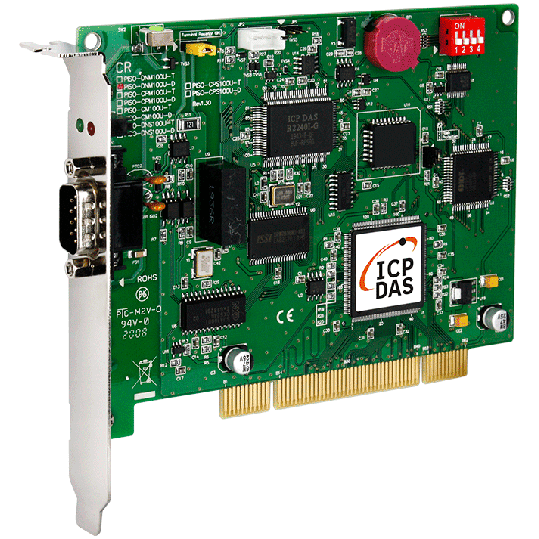

PISO-DNM100U-D 1-Port DeviceNet Master Universal PCI Board
1-port intelligent DeviceNet master for universal PCI slots, with 125, 250 and 500 kbps rates, up to 64 nodes per port and Windows drivers.
- Single-port DeviceNet master on a universal PCI board supporting both 5 V and 3.3 V PCI slots
- Programmable master MAC ID and transfer rates of 125, 250 and 500 kbps
- Up to 64 nodes per port and a maximum I/O fragment number of 64
- I/O operation modes: Poll, Bit-Strobe and Change Of State/Cyclic
- Auto-scan of slave devices, boot-up auto communication and auto-reconnect after a broken connection
- On-line adding and removing of devices without stopping the network
4 897,81 kr per st.
| 1–9 st. | 4 897,81 kr | |
|---|---|---|
| 10–30 st. | 4 754,08 kr | −3 % |
| 31+ st. | 4 654,58 kr | −5 % |
Produktinformation "PISO-DNM100U-D 1-Port DeviceNet Master Universal PCI Board"
PISO-DNM100U-D is a single-port DeviceNet master card for PCI-based Windows systems. It acts as the master on a DeviceNet network and communicates with slave devices using Group 2 Only Server and UCMM functions, handling the network side so the host PC can exchange I/O data with field devices.
The card is built around an NXP SJA1000T CAN controller with a 16 MHz clock, a microprocessor inside, and an ISO-11898-2 transceiver. Its universal PCI interface accepts both 5 V and 3.3 V bus slots, and the board number is set with a DIP switch. The port is isolated, with 2500 Vrms photo-coupler isolation, and a jumper provides a 120 Ω terminal resistor.
Engineers will find the auto-scan, auto-reconnect and on-line add/remove features useful when slave devices are added or replaced on a running network. Drivers are supplied for Windows XP, 7, 8 and 10 in both 32-bit and 64-bit editions, with SDK support for VB 6.0, VC++ 6.0, BCB 6.0 and Visual Studio .NET.
Applications
- LCD panel production and inspection
- Communication with PowerFlex400 drives
- Valve control with SMC, IFC-125 and MKS FRCA valves
- Distance sensing with SICK sensors
| Product type: | PCI board |
|---|---|
| Interface: | PCI |
| Protocol: | DeviceNet |
| Ports: | 1 |
| Isolation: | 2500 Vrms |
| Operating temperature: | 0 ~ +60 °C |
| Mounting: | PCI slot |
Specifikationer
| Software | |
|---|---|
| Driver | Windows XP/7/8/10 (32-bit/64-bit OS) |
| SDK | VB 6.0, VC++ 6.0, BCB 6.0, Visual Studio .NET |
| LED Indicators | |
| Status | Green LED, Red LED |
| PC Bus | |
| Type | Universal PCI supports both 5 V and 3.3 V PCI bus |
| Board No. | By DIP switch |
| DeviceNet | |
| Controller | NXP SJA1000T with 16 MHz clock Microprocessor inside with 80186 80MHz |
| Ports | 1 |
| Baud Rate | 125 k, 250 k, 500 k |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Protocol | DeviceNet Volumn I ver2.0, Volumn II ver2.0 |
| CAN Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Power | |
| Consumption | 300 mA @ 5 V |
| Mechanical | |
| Dimensions (mm) | 138 x 22 x 105 (W x L x H) |
| Environment | |
| Operating Temperature | 0 ~ +60 ℃ |
| Storage Temperature | -20 ~ +70 ℃ |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
