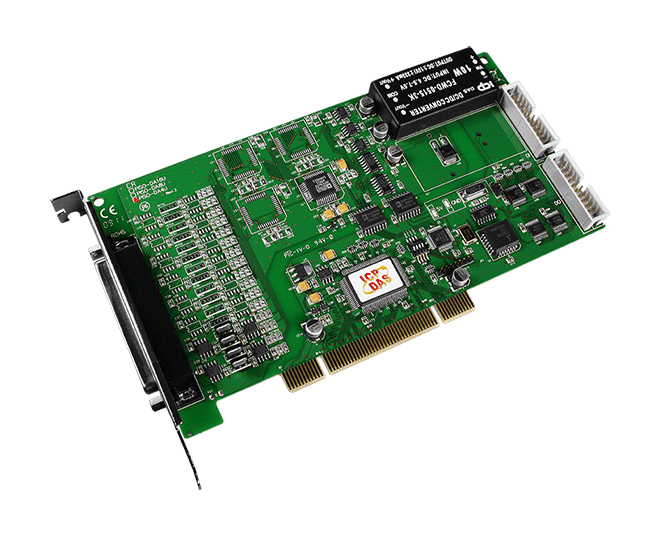

PISO-DA4U/S Universal PCI Isolated Analog Output Board, 4-ch 14-bit
4-channel 14-bit isolated analog output PCI board with ±10 V and 0 to 20 mA outputs, 2500 V bus isolation and a CA-3710 D-Sub cable included.
- 4-channel, 14-bit analog output, each channel selectable as ±10 V voltage or 0 to 20 mA current
- 2500 V DC bus-type isolation with a built-in DC/DC converter rated for 3000 VDC protection
- Universal PCI interface (3.3 V/5 V), 32-bit, 33 MHz
- Software calibration with calibration data saved in EEPROM, no jumpers or trim-pots
- 16-channel 5 V/TTL digital input with pull-high and pull-low function, and 16-channel 5 V/TTL digital output
- Two timer-triggered interrupt sources and double-buffered DA latch
4 709,86 kr per st.
| 1–9 st. | 4 709,86 kr | |
|---|---|---|
| 10–30 st. | 4 566,13 kr | −3 % |
| 31+ st. | 4 477,68 kr | −5 % |
Produktinformation "PISO-DA4U/S Universal PCI Isolated Analog Output Board, 4-ch 14-bit"
The PISO-DA4U/S CR is a universal PCI analog output board with four 14-bit channels, each individually configurable as a voltage output (±10 V) or a current output (0 to 20 mA). It suits engineers who need isolated analogue control signals in a PC-based data acquisition system.
This variant ships with a CA-3710 D-Sub cable rather than the CA-4002 D-Sub connector supplied with the PISO-DA4U CR. The board is designed as a drop-in replacement for the PIO-DA series, so existing software and drivers do not need to be modified. Channel calibration is performed in software, and the calibration data can be stored in EEPROM.
Key hardware includes 16 channels of 5 V/TTL digital input and 16 channels of 5 V/TTL digital output, three 16-bit timer/counter channels and a 4-bit Card ID switch for identifying boards when two or more are installed in the same computer.
- Typical applications include high-speed data acquisition, process monitoring and control, vibration analysis and digital pattern generation from the digital I/O port.
Applications
- High speed data acquisition system
- Process monitor and control
- Vibration analysis
- Digital pattern generator from digital I/O port
| Product type: | PCI DAQ board |
|---|---|
| Interface: | Universal PCI (3.3 V/5 V) |
| Digital inputs: | 16 |
| Digital outputs: | 16 |
| Isolation: | 2500 V DC bus |
| Power input: | 2200 mA @ +5 V |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 20-pin Box header x 2 |
| Card ID | Yes (4-bit) |
| Analog Output | |
| Channels | PISO-DA4U : 4 PISO-DA8U : 8 PISO-DA16U : 16 |
| Range | Voltage: ±10 V Current: 0 ~ 20 mA |
| Resolution | 14-bit |
| Accuracy | 0.04% of FSR ±2 LSB @ 25 °C, ± 10 V |
| Response Time | 333 kHz (Typical) |
| Voltage Output Capability | ±5 mA |
| Slew Rate | 0.71 V/μs |
| Isolation | 2500 V (Bus Type) |
| Operation Mode | Static Update |
| Digital Input | |
| Channels | 16 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 16 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V |
| Response Speed | 1.0 MHz (Typical) |
| Timer/Counter/Frequency | |
| Channels | 3 |
| Type | 5 V/TTL |
| Resolution | 16-bit |
| Reference Clock | Internal: 4 MHz |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 8-bit |
| Power | |
| Consumption | PISO-DA4U : 2200 mA @ +5 V PISO-DA8U : 2400 mA @ +5 V PISO-DA16U : 3000 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105 x 188 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
