PIR-231-E PIR Motion, Temperature & Humidity Sensor, RS-485/Ethernet PoE
360° PIR motion detection, temperature and humidity sensing and a relay output for lighting control, with RS-485 and PoE Ethernet connectivity.
- 360° PIR detection, 8 m maximum diameter and 10 m detection height
- Temperature (-40 ~ +120°C) and humidity (0 ~ 100% RH) measurement
- Form C relay output rated NO 10 A and NC 6 A at 250 VAC
- Relay handles incandescent loads up to 1500 W or fluorescent loads up to 300 W
- RS-485 and Ethernet/PoE ports with DCON, Modbus RTU, Modbus TCP and MQTT
- Hardware 8-step and software 16-step delay time settings
1 956,91 kr per st.
| 1–9 st. | 1 956,91 kr | |
|---|---|---|
| 10–30 st. | 1 901,63 kr | −3 % |
| 31+ st. | 1 857,41 kr | −5 % |
Produktinformation "PIR-231-E PIR Motion, Temperature & Humidity Sensor, RS-485/Ethernet PoE"

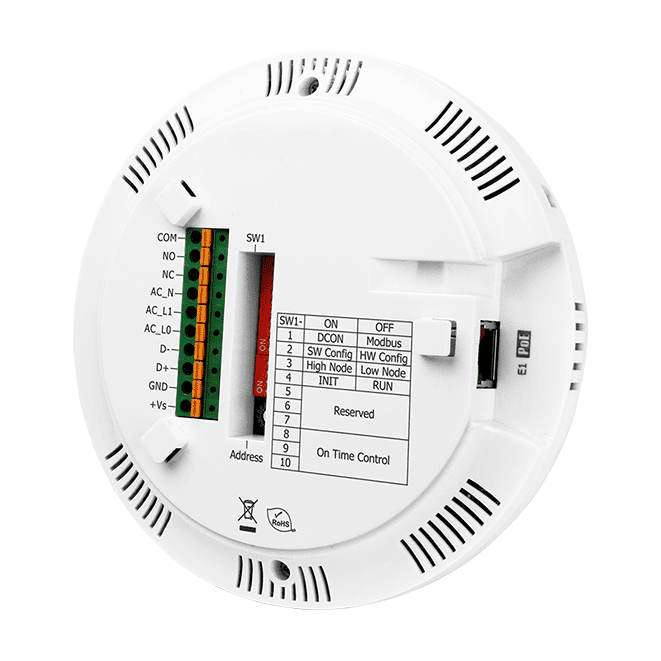

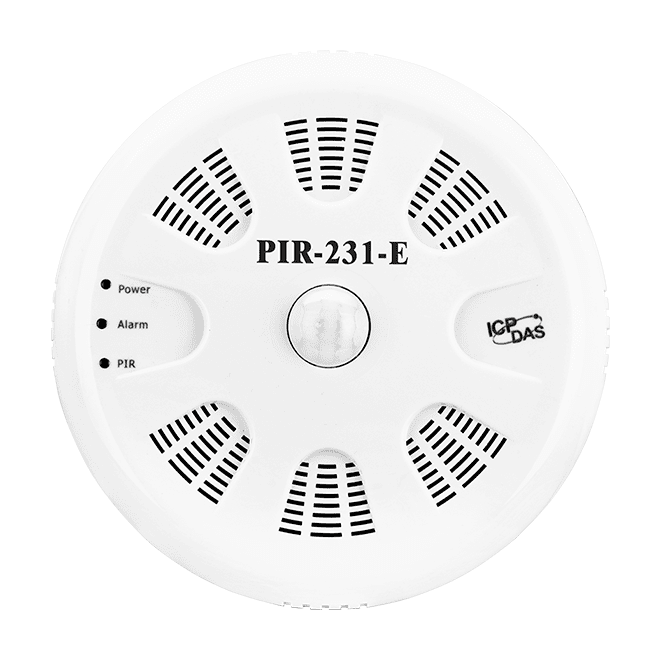

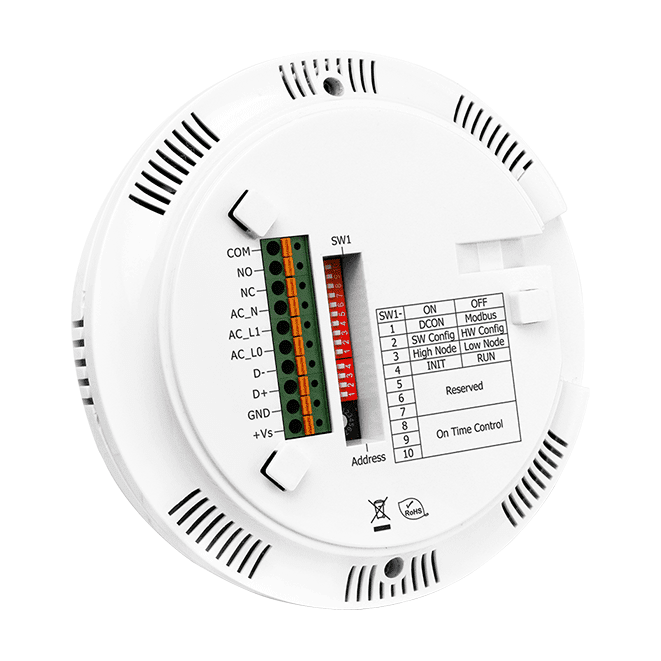

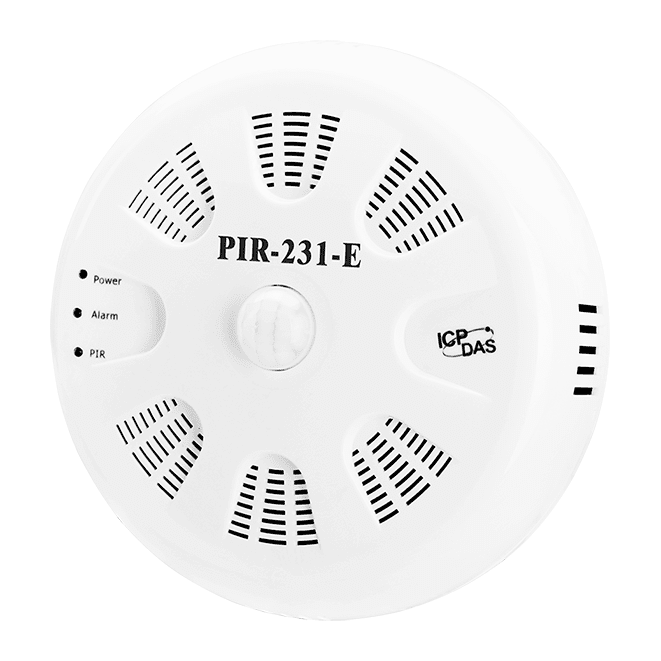

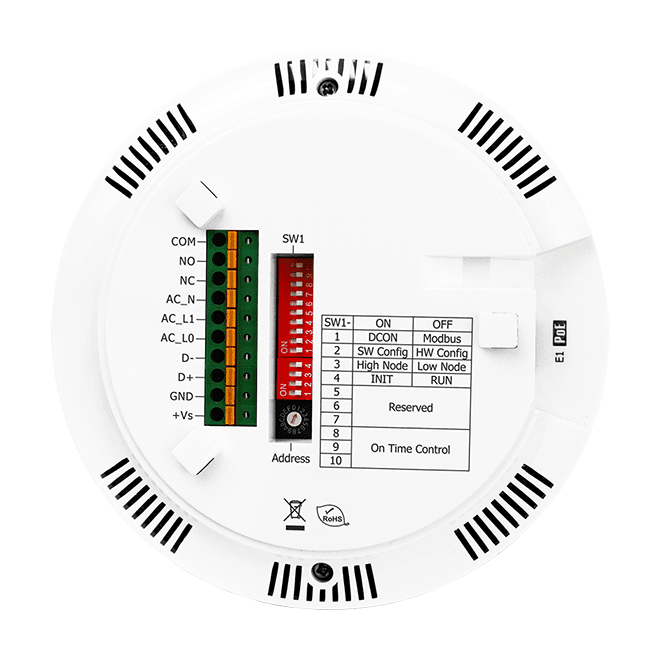

PIR-231-E CR is an indoor sensor module that detects human motion over a 360° field of view, up to 8 m in diameter, and can switch a connected light through its relay output. It also measures room temperature and humidity, so one device can handle occupancy-based lighting and environmental monitoring in the same location.
The module offers RS-485 and Ethernet/PoE connectivity and supports DCON, Modbus RTU, Modbus TCP and MQTT, which makes it straightforward to feed data into HMI, SCADA or central control systems. Motion delay can be set by hardware switch or in software, and two wet-contact digital inputs add further monitoring options.
Installation is simple, with ceiling or surface mounting and a 0 ~ +35°C operating range. Typical use is in common areas such as public toilets, staircases, car parks and corridors.
Applications
- Lighting and exhaust fans in public toilets
- Common lighting in staircases
- Lighting in parking areas
- Garden lights
- Lighting for changing rooms in shops
- Corridor lighting
| Product type: | PIR Motion Sensor |
|---|---|
| Interface: | Ethernet, RS-485 |
| Protocol: | DCON, Modbus RTU, Modbus TCP, MQTT |
| Digital inputs: | 2 |
| Relay outputs: | 1 |
| Ports: | 2 |
| PoE: | Yes |
| Power input: | 18 ~ 48 VDC, PoE |
| Operating temperature: | 0 ~ +35 °C |
| Mounting: | Ceiling / surface |
| Housing: | IP20 |
Specifikationer
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal, ±8 kV Air for Random Point |
| LED Indicators | |
| Status | Yes, 1 as Power/Communication Indicator. 1 as Alarm Indicator |
| PIR | |
| Detection Height | 10 m Max. |
| Detection Field of View | 360°; 8 m Diameter Max. |
| Delay Time | Hardware: 8-step Switch-selectable (seconds): 6, 16, 33, 66, 131, 262, 524, 1049 Software: 16-step (seconds): 2, 4, 6, 8, 16, 33, 49, 66, 131, 262, 393, 524, 1049, 2097, 3146, 4194 |
| PIR Response Time | 1 second |
| Temperature Measurement | |
| Fire Alarm | 65°C (Programmable) |
| Range | -40 ~ +120°C |
| Resolution | 0.01°C |
| Accuracy | ±0.5°C (at 0 ~ 60°C) |
| Humidity Measurement | |
| Range | 0 ~ 100% RH |
| Resolution | 0.01% RH |
| Accuracy | ±5% RH |
| Digital Input | |
| Channels | 2 |
| Type | Wet Contact |
| ON Voltage Level | 70 ~ 220 VAC |
| OFF Voltage Level | 20 VAC Max. |
| Input Impedance | 68 KΩ, 1 W |
| Relay Output | |
| Channels | 1 |
| Type | Power Relay, Form C |
| Contact Rating | NO: 10 A @ 250 VAC NC: 6 A @ 250 VAC |
| Number of Lighting Fixture | Incandescent Bulb: 1500 W Max.; Fluorescent Lamp: 300 W Max. |
| COM Ports | |
| Ports | 1 x RS-485 1 x Ethernet/PoE |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Protocol | DCON, Modbus RTU, Modbus TCP, MQTT |
| Node Address | Hardware: 160 to 191 / Software: 1 to 255 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | 18 ~ 48 VDC, PoE |
| Consumption | 2 W |
| Mechanical | |
| Dimensions (mm) | Ø150 x 53 (Ø x H) |
| Installation | Ceiling /surface mounted |
| Ingress Protection Rating | IP20 |
| Environment | |
| Operating Temperature | 0 ~ +35°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
