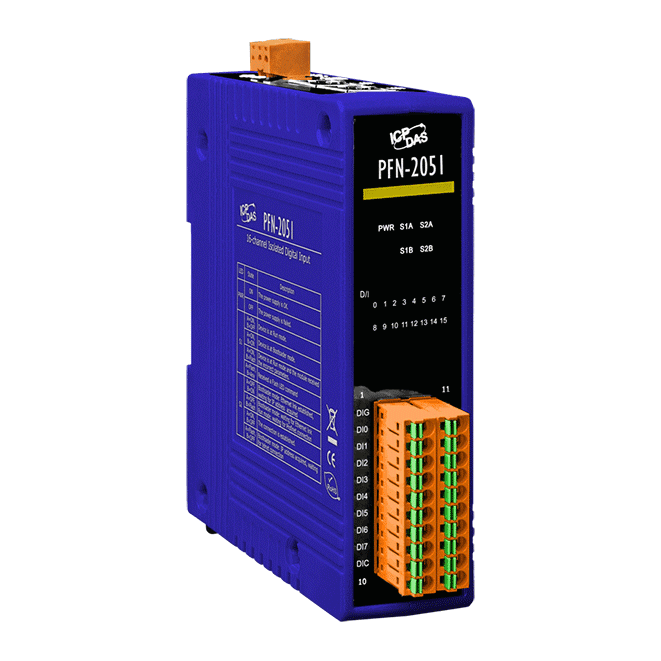

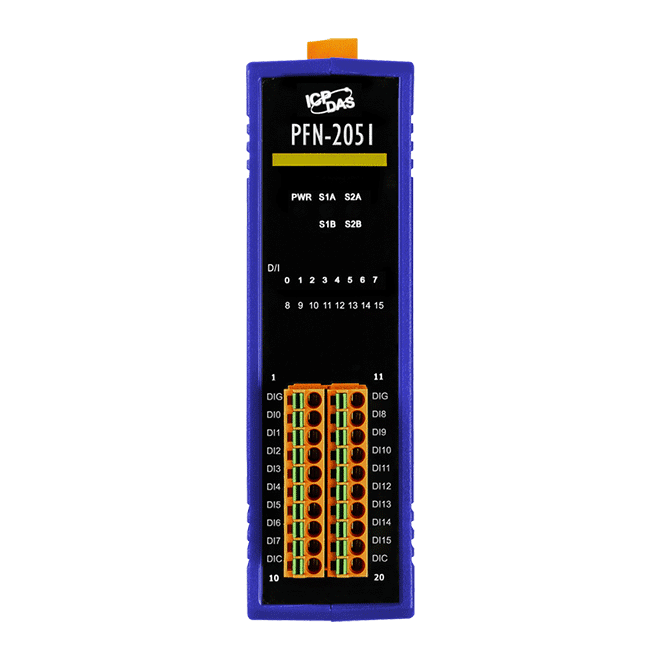

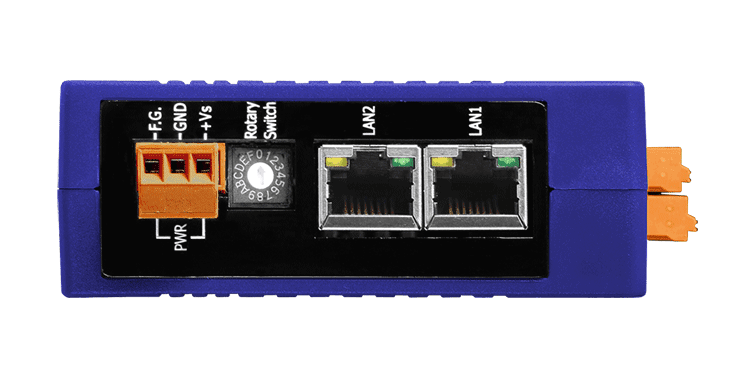

PFN-2051 PROFINET I/O Module, 16-ch Isolated Digital Input
PROFINET IO Device module with 16 isolated dry and wet contact digital inputs, a 1 ms minimum cycle time and a generic GSDML file for any PROFINET engineering tool.
- PROFINET IO Device with Conformance Class B and RT Class 1
- 16 isolated digital inputs supporting dry and wet contacts
- Sink/Source input type with wet contact ON at +10 to +50 VDC and OFF at +4 VDC max.
- Cyclic time of 1 ms (min) for fast PROFINET data exchange
- Generic GSDML file (Version 2.25) for use in any PROFINET engineering tool
- 4 kV contact ESD protection on any terminal
3 560,03 kr per st.
| 1–9 st. | 3 560,03 kr | |
|---|---|---|
| 10–30 st. | 3 449,47 kr | −3 % |
| 31+ st. | 3 383,14 kr | −5 % |
Produktinformation "PFN-2051 PROFINET I/O Module, 16-ch Isolated Digital Input"
PFN-2051 CR is a PROFINET IO Device for distributed digital sensing. It provides 16 isolated digital inputs that accept both dry and wet contacts, making it suitable for connecting switches, relays and sensor outputs to a PROFINET controller.
The module supports PROFINET Conformance Class B and RT Class 1, with a cyclic time of 1 ms (min). Configuration is handled through the generic GSDML file (Version 2.25), so the module can be added to any PROFINET engineering tool without vendor-specific software.
- Wet contact ON level +10 to +50 VDC, OFF level +4 VDC max.
- Dry contact input closes to GND
- Sink/Source input type
- 4 kV contact ESD protection on any terminal
Applications
- Industrial automation
- Factory automation
- Process automation
| Product type: | PROFINET I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | PROFINET |
| Digital inputs: | 16 |
| Isolation: | Isolated |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 32-bit CPU Core |
| EEPROM | 8 KB |
| Flash | 4 MB |
| SRAM | 32 MB |
| Watchdog Timer | CPU built-in |
| LED Indicators | |
| Status | PWR LED, S1A LED, S1B LED, S2A LED, S2B LED |
| Digital Input | |
| Channels | 16 |
| Type | Dry + Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | Dry: Close to GND Wet: +10 VDC to +50 VDC |
| OFF Voltage Level | Dry: Open Wet: +4 VDC max. |
| Ethernet | |
| Services | ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging |
| PROFINET | |
| Conformance Classes | Class B |
| Services | RTC, RTA, CL-RPC, DCP, LLDP, I&M |
| Cycle Time | 1 ms (min) |
| Protocol | PROFINET IO Device |
| Power | |
| Consumption | 3.5 W |
| Mechanical | |
| Dimensions (mm) | 33 x 107 x 126 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
