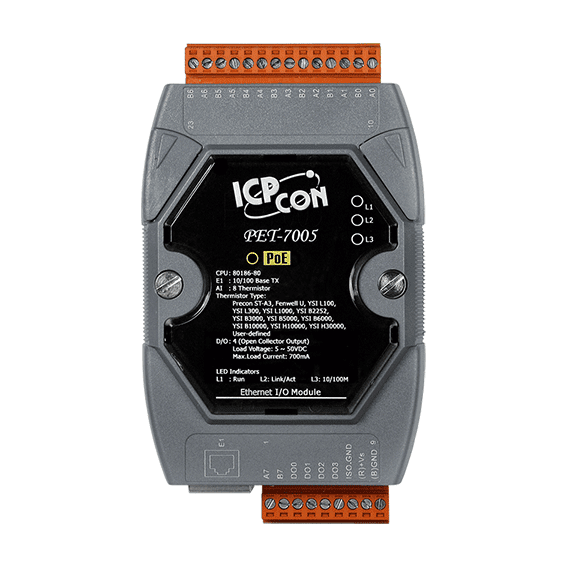

PET-7005 PoE Ethernet I/O Module, 8-ch Thermistor Input, 4-ch DO
PoE-powered Modbus TCP/UDP I/O module with 8 differential thermistor inputs and 4 isolated open-collector digital outputs for temperature measurement and alarm output.
- Eight differential thermistor inputs with individual channel configuration and open wire detection
- Support for many thermistor types plus user-defined types via Steinhart coefficients
- Four isolated open-collector digital outputs with short-circuit and overload protection
- 2500 VDC I/O isolation and +110 VDC/VAC overvoltage protection on thermistor inputs
- Modbus TCP and Modbus UDP over a 10/100 Base-TX RJ-45 port
- PoE (IEEE 802.3af, Class 1) or +12 ~ +48 VDC terminal block power
3 206,24 kr per st.
| 1–9 st. | 3 206,24 kr | |
|---|---|---|
| 10–30 st. | 3 106,74 kr | −3 % |
| 31+ st. | 3 040,40 kr | −5 % |
Produktinformation "PET-7005 PoE Ethernet I/O Module, 8-ch Thermistor Input, 4-ch DO"
The PET-7005 CR is a PoE Ethernet I/O module for temperature measurement with thermistors. Each of its eight differential inputs can be configured individually, so different thermistor types can be used on different channels. Supported types include Precon ST-A3, Fenwell U and several YSI series, and user-defined thermistors can be added by entering Steinhart coefficients.
Four isolated open-collector outputs with short-circuit and overload protection allow the module to drive alarm outputs. Its 2500 VDC intra-module isolation and 110 VDC/VAC overvoltage protection on the thermistor inputs are intended to support reliable operation in electrically demanding installations.
Communication is over Modbus TCP and Modbus UDP through a single 10/100 Base-TX RJ-45 port, with ID, password and IP filter access control. The module can be powered from PoE (IEEE 802.3af, Class 1) or from a +12 ~ +48 VDC terminal block, and it mounts on a DIN rail.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP |
| Digital outputs: | 4 |
| Analog inputs: | 8 |
| Ports: | 1 |
| PoE: | Yes |
| Isolation: | 2500 VDC |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | I/O: 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | Run, Ethernet, PoE |
| Analog Input | |
| Channels | 8 (Differential) |
| Type | Thermistor |
| Sensor Type | Precon ST-A3, Fenwell U, YSI L100, YSI L300, YSI L1000, YSI B2252, YSI B3000, YSI B5000, YSI B6000, YSI B10000, YSI H10000, YSI H30000, User-defined |
| Resolution | 16-bit |
| Accuracy | ±0.1% or better |
| Sampling Rate | 10 Hz (total channels) |
| Overvoltage Protection | +110 VDC/VAC |
| Individual Channel Configuration | Yes |
| Open Wire Detection | Yes |
| Digital Output | |
| Channels | 4 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 ~ +50 VDC |
| Load Current | 700 mA/channel |
| Overvoltage Protection | +60 VDC |
| Overload Protection | 1.4 A |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-TX |
| PoE | Yes |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 3.0 W (max.) |
| Powered from PoE | IEEE 802.3af, Class1 |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
