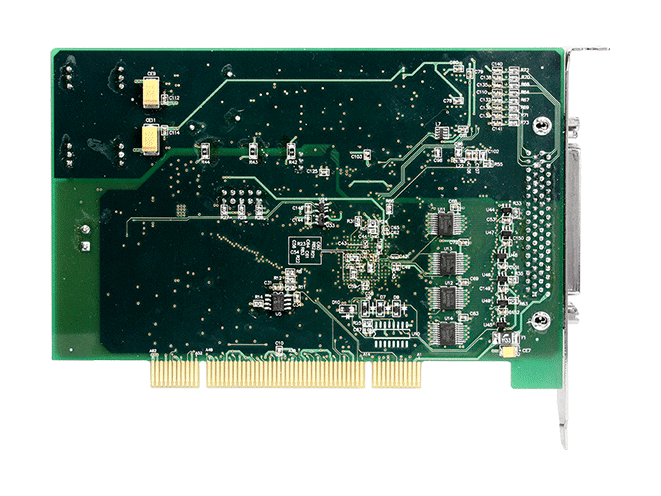

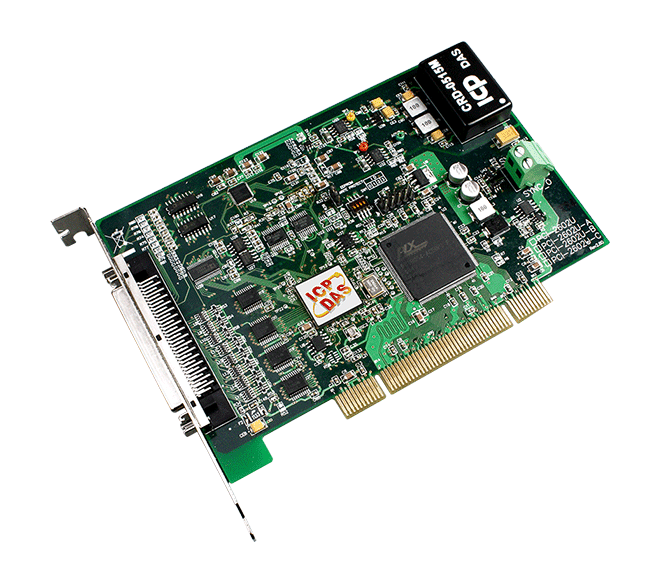

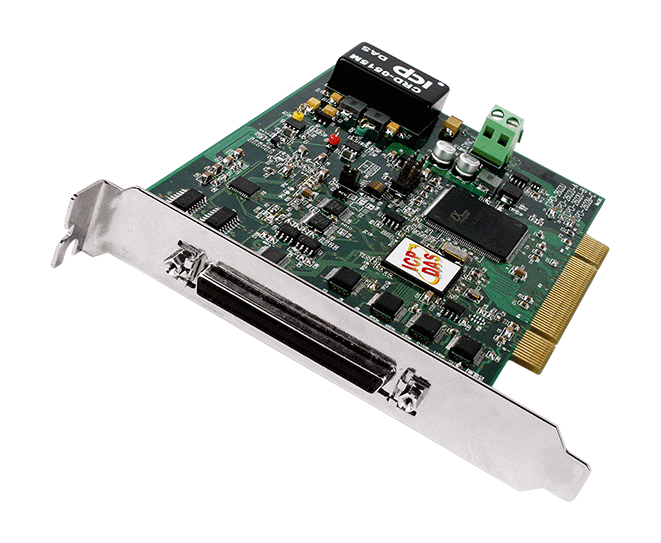

PCI-2602U Universal PCI DAQ Multifunction Board, 16-ch 16-bit AI, 1 MS/s
PCI-2602U provides 16 single-ended or 8 differential 16-bit analogue inputs at up to 1 MS/s, plus 2 analogue outputs and 32 programmable digital I/O on a Universal PCI board.
- 16 single-ended or 8 differential 16-bit analogue inputs at up to 1 MS/s
- 8192-sample hardware FIFO for analogue input
- 2 16-bit voltage outputs with a 512-sample hardware FIFO for pattern generation
- 32 programmable digital I/O lines with 512-sample DO hardware FIFO and DO readback
- Programmable digital input filter for debouncing and noise rejection
- MagicScan channel scan controller with per-channel gain codes at full sampling rate
9 386,54 kr per st.
| 1–9 st. | 9 386,54 kr | |
|---|---|---|
| 10–30 st. | 9 099,09 kr | −3 % |
| 31+ st. | 8 911,14 kr | −5 % |
Produktinformation "PCI-2602U Universal PCI DAQ Multifunction Board, 16-ch 16-bit AI, 1 MS/s"
The PCI-2602U is a high-speed multifunction data acquisition board for Universal PCI slots. It suits engineers who need fast analogue capture alongside analogue output and programmable digital I/O on a single card, with the acquisition workload handled largely by the board rather than the host processor.
Acquisition and signal conditioning: The 16-bit ADC samples at up to 1 MS/s and buffers data in an 8192-sample hardware FIFO. MagicScan automates channel selection, gain, settling and conversion, and the programmable digital inputs include a filter to suppress noise, glitches and switch bounce in electrically harsh environments.
- Software, pacer and external analogue or digital triggering for synchronised capture
- Polling, interrupt and DMA data transfer options
- Software calibration with calibration data stored in EEPROM, so no jumpers or trim-pots are needed
- Onboard 4-bit Card ID switch to tell apart multiple boards in one system
The board is supported under DOS and Windows, with a DLL, ActiveX control and sample programs for several development environments including Visual C++, Visual Basic.NET, C#.NET and LabVIEW.
Applications
- High-speed data acquisition systems
- Process monitoring and control
- Vibration analysis
| Product type: | Multifunction DAQ board |
|---|---|
| Interface: | Universal PCI |
| Digital inputs: | 32 |
| Digital outputs: | 32 |
| Analog inputs: | 16 SE / 8 differential |
| Analog outputs: | 2 |
| Power input: | +5 V, 1 A max. |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| Hardware | |
|---|---|
| Connector | SCSI II 68-pin x 1 |
| Card ID | Yes (4-bit) |
| Analog Input | |
| Channels | 16 Single-ended/8 Differential |
| Range | Gain: 0.4, 0.8, 1.6 Bipolar Range: ±10.24 V, ±5.12 V, ±2.56 V |
| Resolution | 16-bit |
| Accuracy | 0.05 % of FSR ±1 LSB @ 25 °C, ±10.24 V |
| Sampling Rate | 1 MS/s |
| Overvoltage Protection | Continuous ±35 Vp-p |
| FIFO Size | 8192 samples |
| Trigger Mode | Software, Pacer, External(Analog/Digital) |
| Data Transfer | Polling, Interrupt, DMA |
| Analog Output | |
| Channels | 2 |
| Range | ±10 V, ±5 V, ±EXT_REF, 0 ~ +10 V, 0 ~ +5 V, 0 ~ EXT_REF |
| Resolution | 16-bit |
| Accuracy | ±6 LSB |
| Response Time | 20 MS/s (Max.) |
| Voltage Output Capability | ±5 mA |
| Slew Rate | 8.33 V/μs |
| FIFO Size | 512 Samples |
| Operation Mode | Static update, Waveform generation (only for Channel 0) |
| Digital Input | |
| Channels | 32 (4-port Programmable) (Bi-Direction) |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Data Transfer | Polling |
| Digital Output | |
| Channels | 32 (4-port Programmable) (Bi-Direction) |
| Type | 5 V/CMOS |
| Operation Mode | Static Update, Waveform generation |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 6 mA @ 0.33 V Source: 6 mA @ 4.77 V |
| Response Speed | 4.0 MHz (Typical) |
| DO Readback | Yes |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 16-bit |
| Power | |
| Consumption | 1 A @ +5 V (Max.) |
| Mechanical | |
| Dimensions (mm) | 102 X 149 X 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
