NSM-200LX Gigabit Media Converter, 1000Base-T to 1000Base-LX Single-mode
Industrial 1000Base-T to 1000Base-LX media converter with one SC single-mode fibre port at 1310 nm, rated for 10 km. Suited to extending Gigabit copper links over fibre.
- One 1000Base-FX single-mode port with SC connector, 1310 nm wavelength and 10 km distance
- Link Fault Pass-through (LFP), enabled with a DIP switch
- Transparent to jumbo packets up to 10 KB
- Wide operating temperature range of -30 °C ~ +75 °C
- Redundant +12 VDC ~ +48 VDC dual power inputs with reverse polarity protection
- Store and forward processing with IEEE 802.3x flow control and EEE (802.3az)
3 316,80 kr per st.
| 1–9 st. | 3 316,80 kr | |
|---|---|---|
| 10–30 st. | 3 217,30 kr | −3 % |
| 31+ st. | 3 150,96 kr | −5 % |
Produktinformation "NSM-200LX Gigabit Media Converter, 1000Base-T to 1000Base-LX Single-mode"

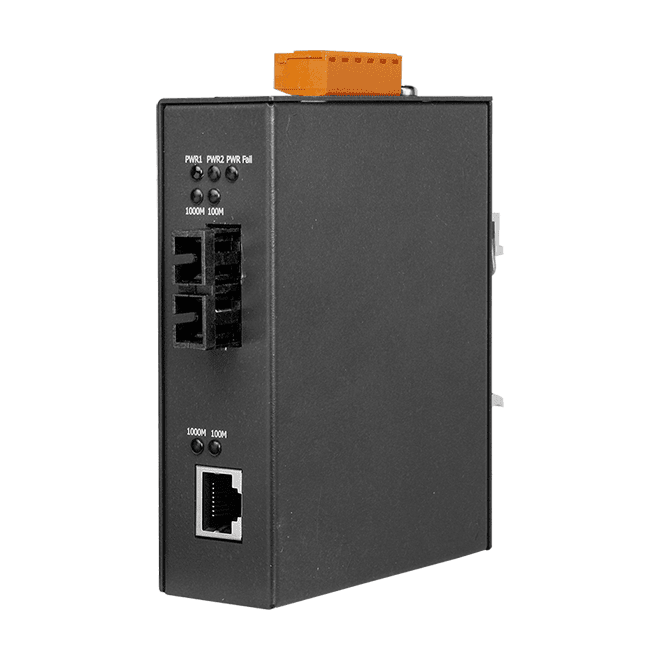

The NSM-200LX CR is an industrial media converter that transparently links a 10/100/1000Base-T copper Ethernet connection to a single-mode fibre link. Its SC port operates at 1310 nm with a rated distance of 10 km, making it a practical way to extend an existing network or the separation between two devices.
It suits harsh-environment installations, with an operating range of -30 °C ~ +75 °C and redundant +12 VDC ~ +48 VDC power inputs, so a backup supply can keep the link running. Link Fault Pass-through (LFP) can be enabled by DIP switch, allowing a fault on one side of the link to be signalled to the other.

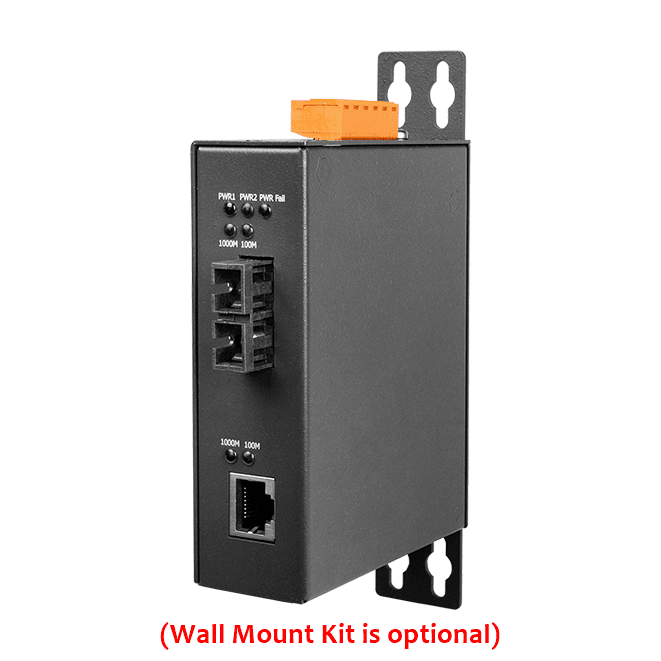

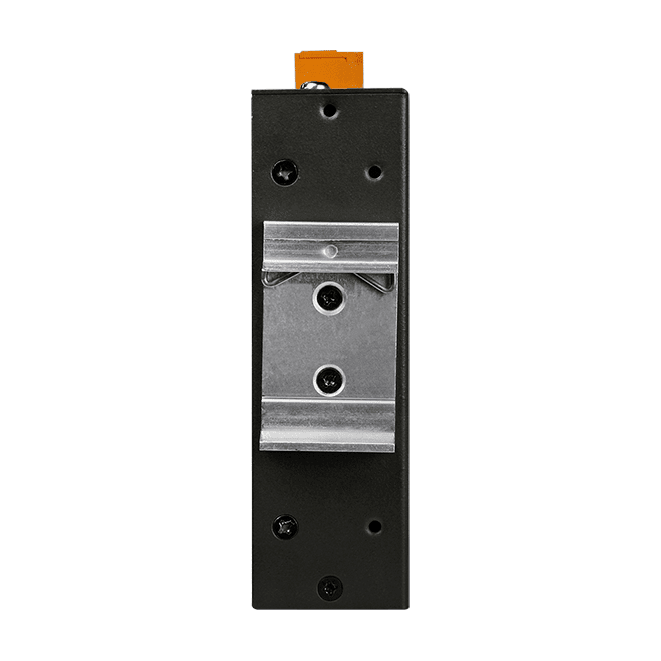

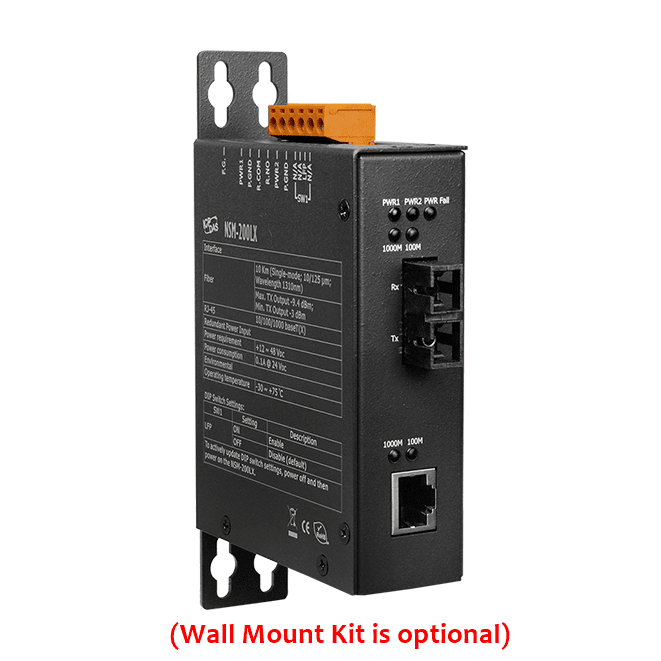

Key handling characteristics include store and forward processing, IEEE 802.3x flow control, Energy Efficient Ethernet (802.3az) and transparency to jumbo packets up to 10 KB. The metal housing mounts on a DIN-rail or, optionally, on a wall.
Applications
- Extending the reach of existing Gigabit Ethernet networks over single-mode fibre
- Linking two devices separated by up to 10 km
- Converting copper Ethernet equipment to fibre connectivity in industrial installations
| Product type: | Media Converter |
|---|---|
| Interface: | 1000Base-T to 1000Base-FX |
| Ports: | 1 x RJ-45, 1 x SC |
| Isolation: | Non-isolated power input |
| Power input: | +12 VDC ~ +48 VDC redundant |
| Operating temperature: | -30 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifikationer

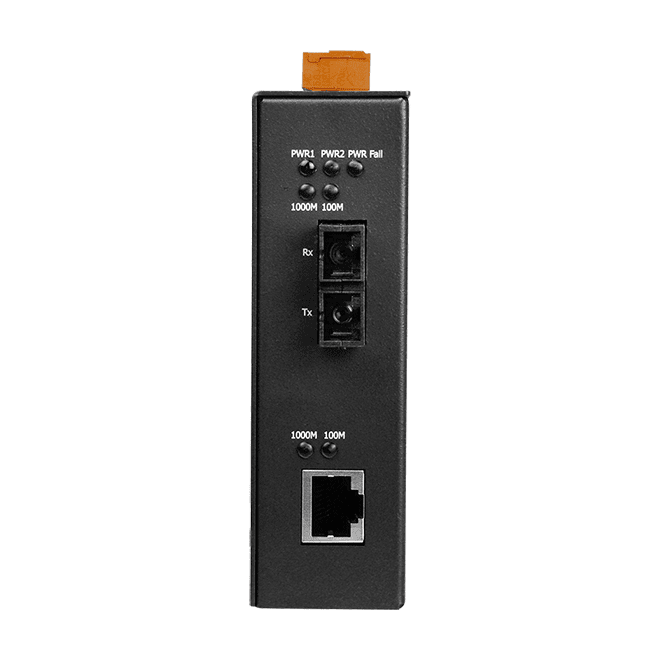

| LED Indicators | |
|---|---|
| Status | PWR1, PWR2, P-Fail, Link/Act, 100M, 1000M |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000Base-T(X) |
| Standards | IEEE 802.3 for 10Base-T; IEEE 802.3u for 100Base-TX; IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control Energy Efficient Ethernet (EEE) as per 802.3az; this provides power savings during idle network activity |
| Processing Type | Store & forward |
| Frame Buffer Memory | 512 Kbit |
| Jumbo Frames | 16K |
| DIP Switch | 1 x LFP Enable |
| Fiber | |
| Ports | 1 x 1000Base-FX, SC connector |
| Mode | Single-Mode |
| Fiber Cable | 10/125 μm |
| Distance | 10 km |
| Wavelength | 1310 nm |
| TX Output | -9.4 dBm Min. -3 dBm Max. |
| RX Sensitivity | -20 dBm |
| RX Overload | -3 dBm |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +12 VDC ~ +48 VDC Redundant dual Input(Non-isolated) |
| Redundant Power Inputs | Yes |
| Consumption | 0.1 A @ 24 VDC |
| Alarm Output | Yes,Relay 1 A @ 30 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | DIN-rail mounting: 33 x 120 x 109 (W x L x H) Wall mounting: 33 x 159 x 103 (W x L x H) |
| Installation | DIN-rail mounting or wall mounting (optional) |
| Environment | |
| Operating Temperature | -30 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
