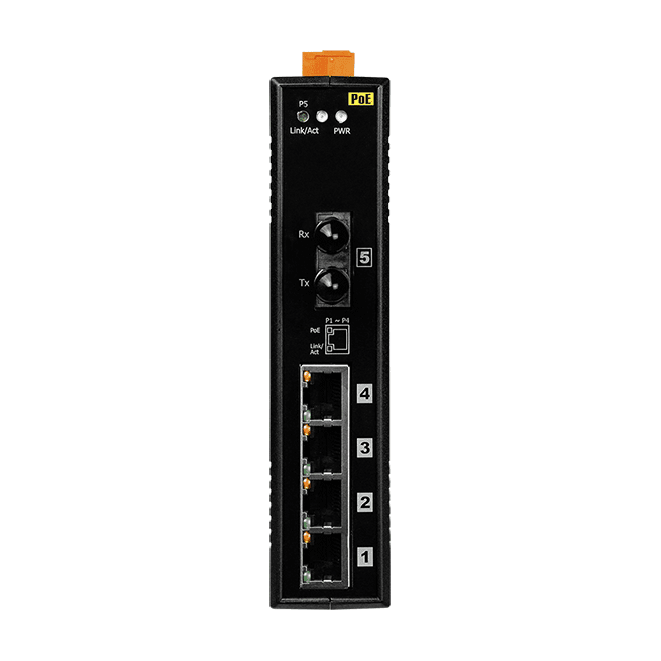

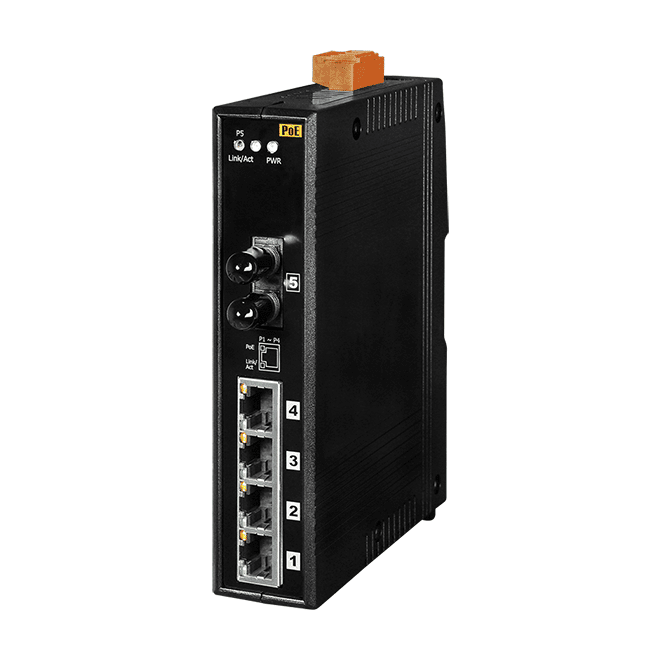

NS-205PFT PoE Ethernet Switch, 4 x RJ-45 + 1 Multi-mode ST Fiber Port
Unmanaged 4-port 10/100 Mbps PoE (PSE) Ethernet switch with one multi-mode ST 100Base-FX fibre uplink, up to 15.4 W per PoE port and a +46 to +55 VDC power input. DIN-rail mounted.
- Four PoE (PSE) ports with up to 15.4 W per channel, 100% IEEE 802.3af compliant
- Automatic PD detection and power management
- One 100Base-FX multi-mode fibre port with ST connector, supporting up to 2 km
- Four 10/100Base-TX RJ-45 ports with store-and-forward, wire-speed switching

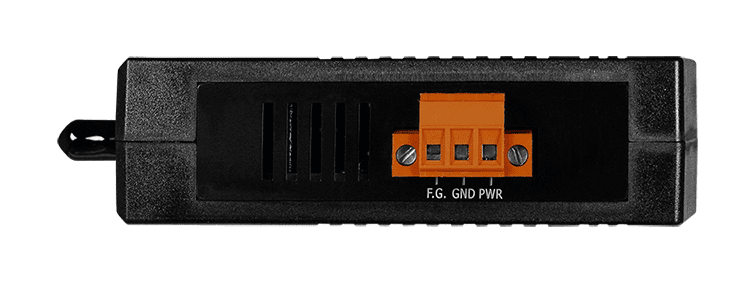

- Power input +46 VDC to +55 VDC with reverse polarity protection
- 1500 Vrms isolation (1 minute) and ±4 kV contact ESD protection
2 542,88 kr per st.
| 1–9 st. | 2 542,88 kr | |
|---|---|---|
| 10–30 st. | 2 465,49 kr | −3 % |
| 31+ st. | 2 421,26 kr | −5 % |
Produktinformation "NS-205PFT PoE Ethernet Switch, 4 x RJ-45 + 1 Multi-mode ST Fiber Port"
The NS-205PFT CR is an unmanaged Ethernet switch that combines four 10/100Base-TX RJ-45 ports with one 100Base-FX multi-mode fibre port terminated in ST connectors. Its four PoE ports operate as power sourcing equipment (PSE), so one central supply can power connected powered devices (PDs) over the same Ethernet cabling. The CR suffix denotes the variant with a +46 VDC to +55 VDC power input.
Each PoE port delivers up to 15.4 W, conforming to IEEE 802.3af, and the switch detects PDs automatically and manages power accordingly. The fibre port supports 100 Mbps links over multi-mode fibre for distances up to 2 km, which keeps the link insulated from electrical noise in the installation.
The switch uses store-and-forward processing with wire-speed switching, IEEE 802.3x flow control and a 1500 Vrms isolation rating. It is housed in a plastic case for DIN-rail mounting, with an operating range of -30 °C to +75 °C.
Applications
- Powering PoE devices from a centralised supply over Ethernet cabling
- Extending Ethernet links over multi-mode fibre in electrically noisy environments
| Product type: | Ethernet switch |
|---|---|
| Interface: | RJ-45, ST fibre |
| Protocol: | IEEE 802.3 |
| Ports: | 4 x RJ-45 + 1 x 100Base-FX |
| PoE: | 4 ports PSE, 802.3af, 15.4 W per port |
| Isolation: | 1500 Vrms |
| Power input: | +46 ~ +55 VDC |
| Operating temperature: | -30 ~ +75 °C |

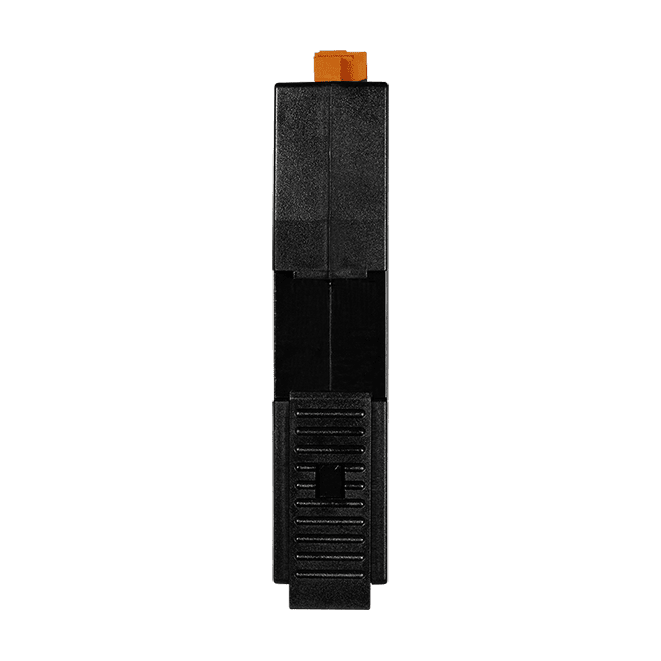

| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact |
| LED Indicators | |
| Status | Power, Link/Act, Power Device is detected |
| Ethernet | |
| Ports | 4 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u, 802.3x ,802.3af (Power over Ethernet) |
| Processing Type | Store & forward; wire speed switching |
| MAC Table | 1024 |
| Memory Bandwidth | 3.2 Gbps |
| Frame Buffer Memory | 512 Kbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Isolation | 1500 Vrms 1 minute |
| PoE Technology | |
| PoE Compliance | 100% IEEE 802.3af compliant |
| PoE Power | Up to 15.4 watts per channel |
| PoE Operation | Automatic detection and power management |
| PoE Pin Assignments | V+ (Pin 1,2), V- (Pin 3,6) |
| PoE Disconnect Mode | DC disconnect |
| PoE Voltage | +48 VDC depending on power input |
| Fiber | |
| Ports | 1 x 100 Base-FX, ST connector |
| Mode | Multi-Mode |
| Fiber Cable | 50/125, 62.5/125 or 100/140 μm |
| Distance | 2 km, (62.5/125 μm recommended) for full duplex |
| Wavelength | 1300 or 1310nm |
| TX Output | -20 dBm Min. -14 dBm Max. |
| RX Sensitivity | -32 dBm |
| RX Overload | -8 dBm |
| Budget | 12 dBm |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +46 ~ +55 VDC for PoE output |
| Consumption | 0.08 A @ 48 VDC without PD loading; 1.5 A @ 48 VDC with PD full loading |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 31 x 157 x 113 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -30 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
