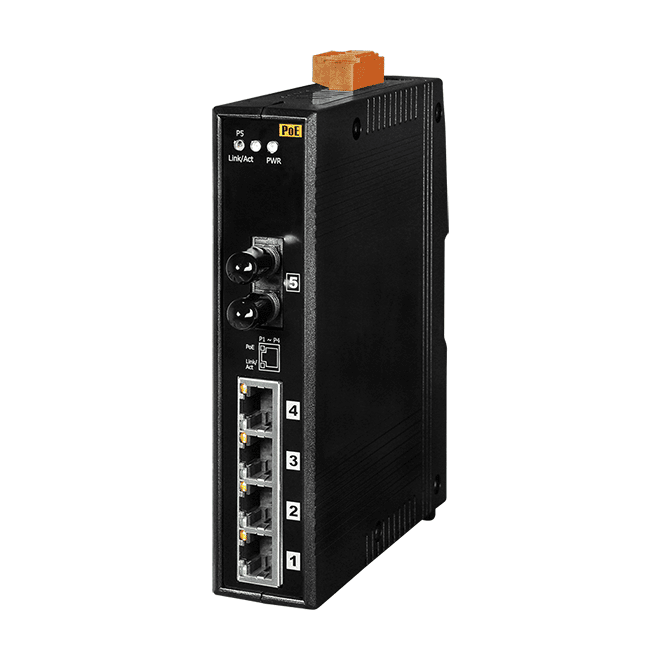

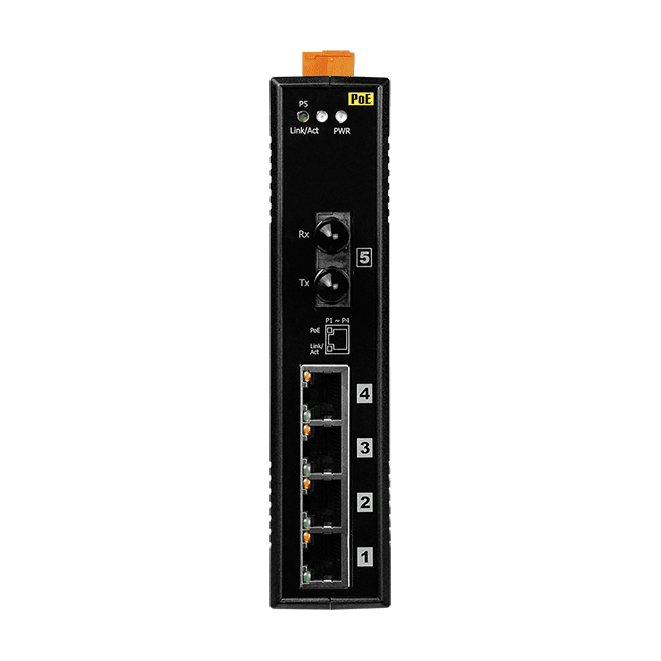

NS-205PFT-24V PoE Ethernet Switch, 4-port PSE + 1 Multi-mode Fibre Port
Unmanaged 4-port 10/100 Mbps PoE (PSE) switch with one 100Base-FX multi-mode ST fibre port and a 24 VDC input, designed for DIN-rail installation.
- 4 x RJ-45 10/100Base-TX ports plus 1 x 100Base-FX multi-mode fibre port with ST connector
- 4 PoE ports operating as PSE, 100% IEEE 802.3af compliant, up to 15.4 W per channel
- Automatic detection of powered devices and automatic power management
- Store-and-forward, wire-speed switching with a 1024-entry MAC table
- 1500 Vrms isolation for 1 minute
- Input range +18 ~ +32 VDC with reverse polarity protection
2 841,39 kr per st.
| 1–9 st. | 2 841,39 kr | |
|---|---|---|
| 10–30 st. | 2 764,00 kr | −3 % |
| 31+ st. | 2 697,66 kr | −5 % |
Produktinformation "NS-205PFT-24V PoE Ethernet Switch, 4-port PSE + 1 Multi-mode Fibre Port"
The NS-205PFT-24V is an unmanaged Ethernet switch that combines four RJ-45 10/100Base-TX ports, each able to supply power to a PoE device, with a single 100Base-FX multi-mode fibre port fitted with an ST connector. Each PoE port acts as a Power Sourcing Equipment (PSE) and can deliver up to 15.4 W per channel, so powered devices can be fed from one central supply rather than individual adapters.
Fibre uplinks provide electrical isolation from noise sources and allow 100 Mbps links over distances of up to 2 km. Because the unit is designed around a 24 VDC input, an internal boost to 48 VDC supports PoE operation in installations where a 48 VDC supply is not available.
The switch detects powered devices automatically and manages power accordingly. Its plastic housing mounts on a DIN rail and it is rated for operation from -30 °C to +75 °C.
Applications
- Centralised power distribution to PoE powered devices from a 24 VDC supply
- Fibre-linked Ethernet connections over distances of up to 2 km
- Ethernet segments where electrical noise could interfere with copper links
- Installations without a 48 VDC supply that still require PoE
| Product type: | Ethernet switch |
|---|---|
| Interface: | 1 x ST fibre, 4 x RJ-45 |
| Protocol: | IEEE 802.3af |
| Ports: | 5 |
| PoE: | 4 PSE ports, 15.4 W |
| Isolation: | 1500 Vrms |
| Power input: | +18 ~ +32 VDC |
| Operating temperature: | -30 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact |
| LED Indicators | |
| Status | Power, Link/Act, Power Device is detected |
| Ethernet | |
| Ports | 4 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u, 802.3x ,802.3af (Power over Ethernet) |
| Processing Type | Store & forward; wire speed switching |
| MAC Table | 1024 |
| Memory Bandwidth | 3.2 Gbps |
| Frame Buffer Memory | 512 Kbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Isolation | 1500 Vrms 1 minute |
| PoE Technology | |
| PoE Compliance | 100% IEEE 802.3af compliant |
| PoE Power | Up to 15.4 watts per channel |
| PoE Operation | Automatic detection and power management |
| PoE Pin Assignments | V+ (Pin 1,2), V- (Pin 3,6) |
| PoE Disconnect Mode | DC disconnect |
| Fiber | |
| Ports | 1 x 100 Base-FX, ST connector |
| Mode | Multi-Mode |
| Fiber Cable | 50/125, 62.5/125 or 100/140 μm |
| Distance | 2 km, (62.5/125 μm recommended) for full duplex |
| Wavelength | 1300 or 1310nm |
| TX Output | -20 dBm Min. -14 dBm Max. |
| RX Sensitivity | -32 dBm |
| RX Overload | -8 dBm |
| Budget | 12 dBm |

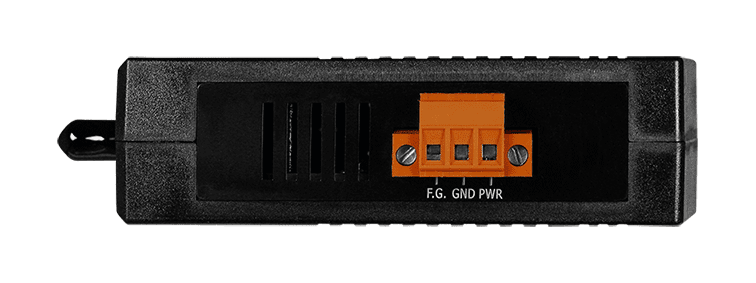

| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +18 ~ +32 VDC |
| Consumption | 0.24 A @ 24 VDC without PD loading; 3.2 A @ 24 VDC with PD full loading; 4.6 A @ 18 VDC with PD full loading |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 31 x 157 x 113 (W x L x H) |

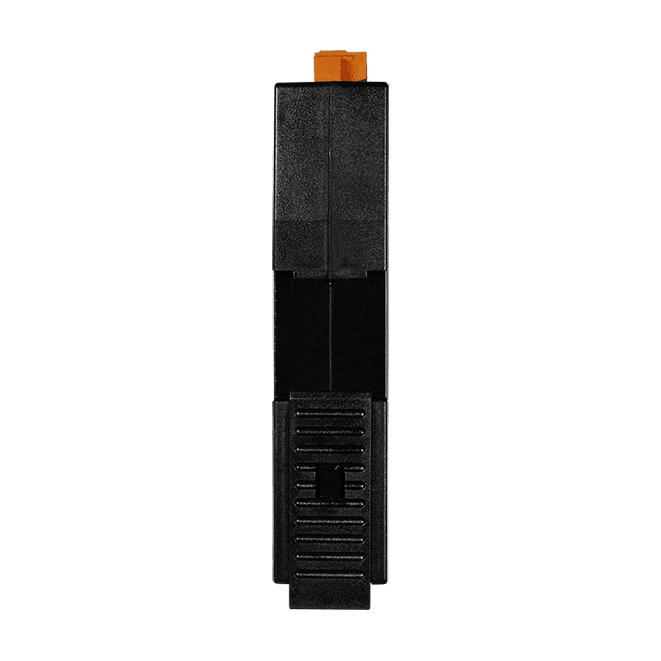

| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -30 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
