NS-205AFC-T Unmanaged Ethernet Switch, 4-Port + 1 Multi-Mode SC Fibre
Unmanaged 4-port 10/100 Mbps Ethernet switch with one 100Base-FX multi-mode SC fibre port and redundant 12 to 48 VDC inputs for DIN-rail industrial networks.
- 1 x 100Base-FX multi-mode fibre port (SC connector) plus 4 x RJ-45 10/100Base-TX ports
- Up to 2 km in full duplex; 62.5/125 μm fibre recommended
- Redundant +12 ~ +48 VDC power inputs with reverse polarity protection
- Relay alarm output rated 2 A @ 30 VDC with PWR, PWR_Fault and link/activity LEDs
- Store and forward processing, 2048-entry MAC table and IEEE 802.3x flow control
- Broadcast storm protection
2 299,65 kr per st.
| 1–9 st. | 2 299,65 kr | |
|---|---|---|
| 10–30 st. | 2 233,31 kr | −3 % |
| 31+ st. | 2 178,03 kr | −5 % |
Produktinformation "NS-205AFC-T Unmanaged Ethernet Switch, 4-Port + 1 Multi-Mode SC Fibre"

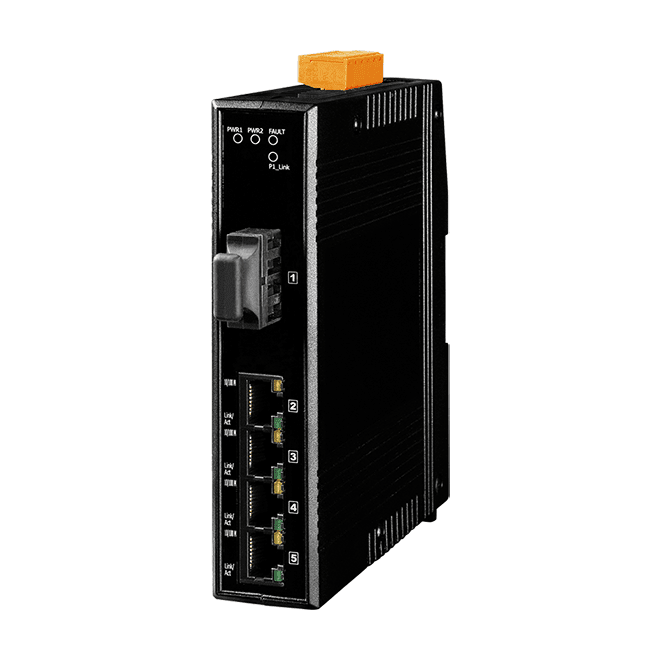

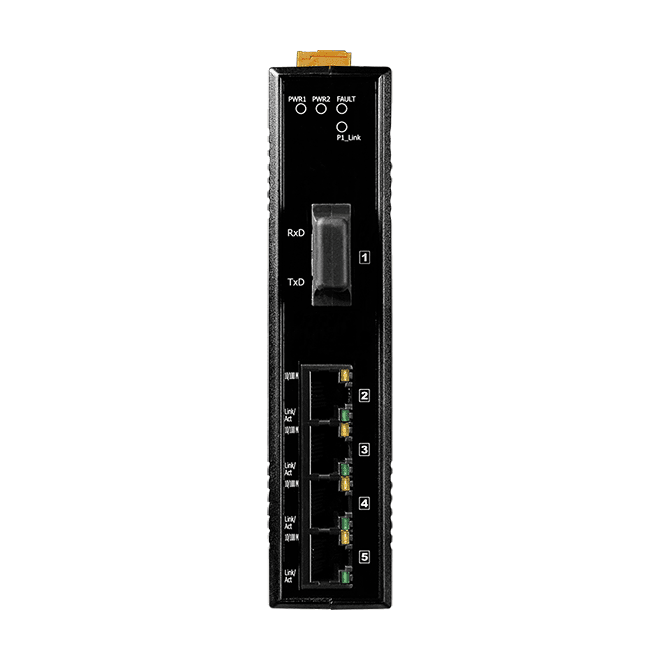

NS-205AFC-T CR is an unmanaged Ethernet switch that combines four 10/100Base-TX RJ-45 ports with one 100Base-FX multi-mode fibre port terminated in an SC connector. The fibre link keeps electrical noise away from the signal path and extends reach to 2 km in full duplex, which suits connections between cabinets or buildings where copper would be unreliable.

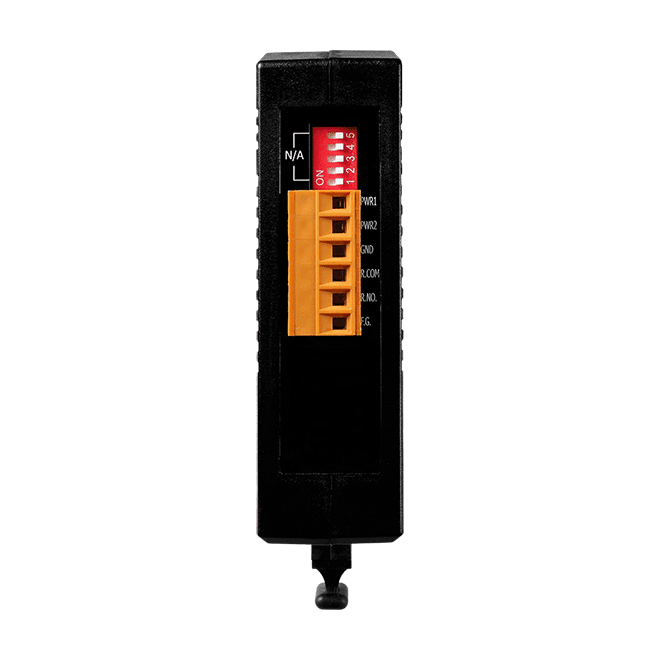

The switch accepts redundant +12 to +48 VDC supplies, so it can run from common industrial DC rails without an external converter. Reverse polarity protection and a relay alarm output rated 2 A @ 30 VDC help with fault monitoring on site.
Store-and-forward processing, IEEE 802.3x flow control and broadcast storm protection support stable operation on small industrial Ethernet segments. Mounting is on DIN-rail, and the operating range is -30 °C to +75 °C.
Applications
- Industrial Ethernet segments requiring a fibre link for noise immunity
- Fibre uplinks between cabinets or buildings for Ethernet-connected equipment
- Installations with a 12 to 48 VDC power supply and no external converter
| Product type: | Ethernet switch |
|---|---|
| Interface: | RJ-45, SC fibre |
| Ports: | 4 x RJ-45 + 1 x SC |
| Isolation: | 1500 Vrms |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -30 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact |
| LED Indicators | |
| Status | PWR1, PWR2, PWR_Fault, Link/Act, 10/100M |
| Ethernet | |
| Ports | 4 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u, 802.3x |
| Processing Type | Store & forward |
| MAC Table | 2048 |
| Frame Buffer Memory | 1 Mbit |
| Flow Control | IEEE 802.3x flow control |
| Isolation | 1500 Vrms 1 minute |
| Fiber | |
| Ports | 1 x 100 Base-FX, SC connector |
| Mode | Multi-Mode |
| Fiber Cable | 50/125, 62.5/125 or 100/140 μm |
| Distance | 2 km, (62.5/125 μm recommended) for full duplex |
| Wavelength | 1300 or 1310nm |
| TX Output | -20 dBm Min. -14 dBm Max. |
| RX Sensitivity | -32 dBm |
| RX Overload | -8 dBm |
| Budget | 12 dBm |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +12 ~ +48 VDC (Redundant input) |
| Redundant Power Inputs | Yes |
| Consumption | 0.2 A @ 24 VDC |
| Alarm Output | Yes,Relay 2 A @ 30 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 31 x 157 x 123 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -30 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
