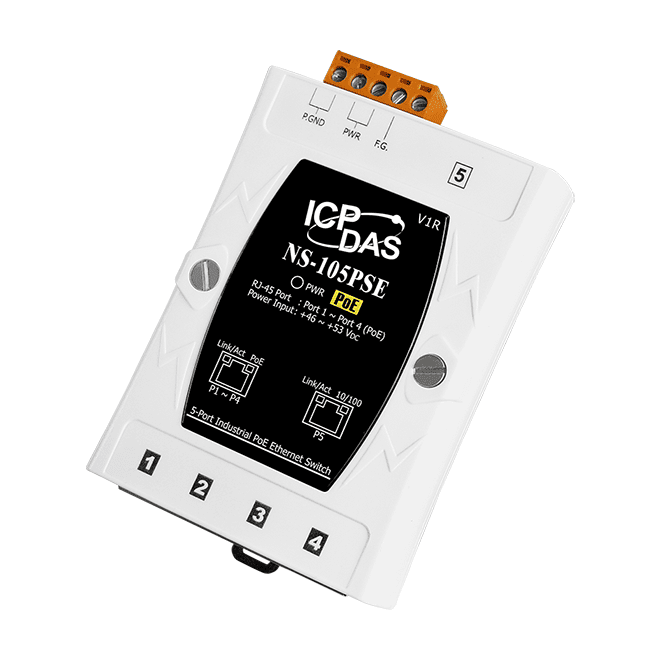

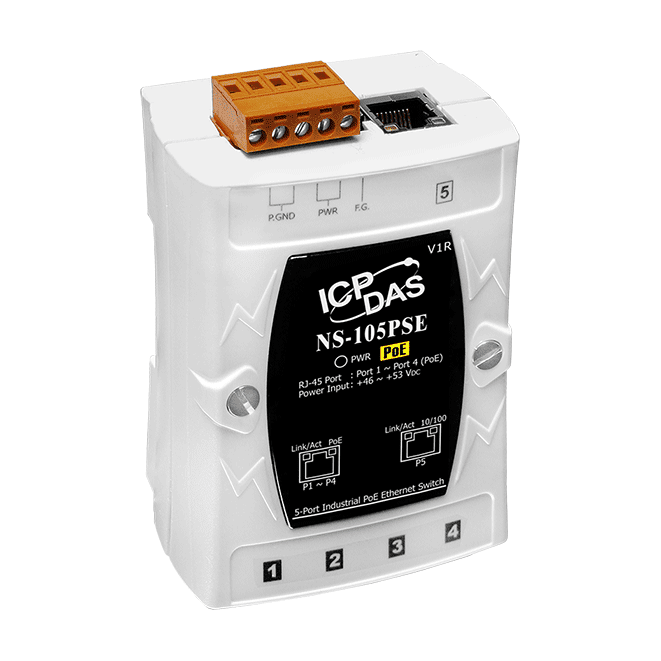

NS-105PSE Unmanaged 5-Port PoE (PSE) Ethernet Switch, 10/100 Mbps
Unmanaged 5-port 10/100 Mbps Ethernet switch with four IEEE 802.3af PoE (PSE) ports, supplying up to 15.4 W per channel from a +46 to +55 VDC input for DIN-rail installations.
- Four IEEE 802.3af PoE PSE ports, up to 15.4 W per channel
- Five 10/100Base-TX RJ-45 ports with store-and-forward switching
- Automatic PoE detection and power management, DC disconnect mode
- Power input +46 VDC to +55 VDC with reverse polarity protection
- 1500 Vrms isolation for one minute
- Operating range -40 °C to +75 °C, 10% to 90% RH non-condensing
1 923,74 kr per st.
| 1–9 st. | 1 923,74 kr | |
|---|---|---|
| 10–30 st. | 1 868,46 kr | −3 % |
| 31+ st. | 1 824,24 kr | −5 % |
Produktinformation "NS-105PSE Unmanaged 5-Port PoE (PSE) Ethernet Switch, 10/100 Mbps"
The NS-105PSE centralises power distribution for Ethernet-connected devices. Four of its five RJ-45 ports act as IEEE 802.3af power sourcing equipment, so PoE powered devices can be supplied over the same cable that carries their data, without a separate local supply at each device.
Each PoE channel delivers up to 15.4 W, with automatic detection and power management. The switch runs store-and-forward wire-speed switching with IEEE 802.3x flow control and a 2048-entry MAC table, and it is isolated to 1500 Vrms for one minute. The plastic casing is designed for DIN-rail mounting and is rated for -40 °C to +75 °C operation.
- Four PoE PSE ports, each up to 15.4 W, for powering IEEE 802.3af compliant devices
- Unmanaged switching across five 10/100Base-TX RJ-45 ports
- Wide +46 to +55 VDC power input with reverse polarity protection
- Compact DIN-rail housing, 76 x 118 x 38 mm (W x L x H)
Applications
- Centralised power distribution to PoE powered devices over Ethernet
- Industrial Ethernet networks requiring PoE-powered end devices
| Product type: | Ethernet switch |
|---|---|
| Interface: | RJ-45 |
| Ports: | 5 |
| PoE: | 802.3af PSE, 15.4 W per port |
| Isolation: | 1500 Vrms |
| Power input: | +46 ~ +55 VDC |
| Operating temperature: | -40 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| LED Indicators | |
|---|---|
| Status | Power, Link/Act , 10/100M, Power Device is detected |
| Ethernet | |
| Ports | 5 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u, 802.3x ,802.3af (Power over Ethernet) |
| Processing Type | Store & forward; wire speed switching |
| MAC Table | 2048 |
| Frame Buffer Memory | 768 Kbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Isolation | 1500 Vrms 1 minute |
| PoE Technology | |
| PoE Compliance | 100% IEEE 802.3af compliant |
| PoE Power | Up to 15.4 watts per channel |
| PoE Operation | Automatic detection and power management |
| PoE Pin Assignments | V+ (Pin 1, 2), V- (Pin 3, 6) |
| PoE Disconnect Mode | DC disconnect |
| PoE Voltage | +48 VDC depending on power input |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +46 VDC ~ +55 VDC |
| Consumption | 0.05 A @ 48 VDC without PD loading 1.45 A @ 48 VDC with PD full loading |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 76 x 118 x 38 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -40 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
