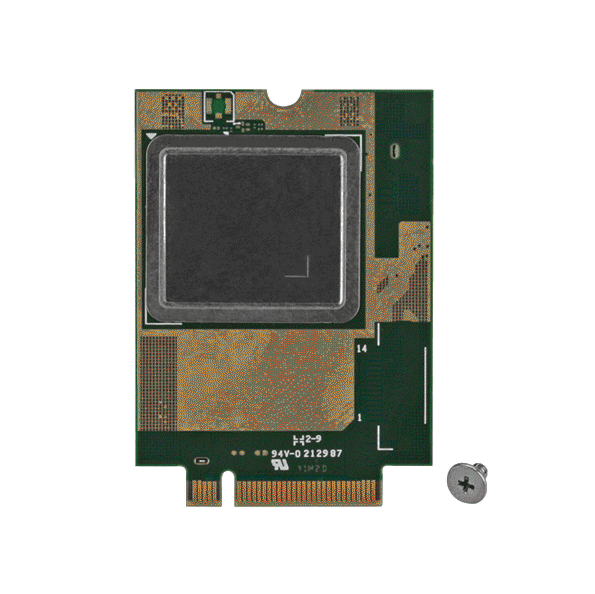

MV31-W 5G Modem Card, M.2 30x42 PCIe 3.0 with LTE and 3G Fallback
Global 5G IoT modem card in a compact M.2 30x42 format with PCIe 3.0, sub 6 GHz support and LTE and 3G fallback for industrial routers and gateways.
- Sub 6 GHz operation support
- Global 5G coverage on one single SKU
- Compact standard M.2 30x42 form factor with PCIe 3.0
- Stand Alone (SA) and NSA modes supported
- Fallback to 4G LTE and 3G networks
- Operating temperature -30°C ~ +70°C
8 192,50 kr per st.
| 1–9 st. | 8 192,50 kr | |
|---|---|---|
| 10–30 st. | 7 949,26 kr | −3 % |
| 31+ st. | 7 783,42 kr | −5 % |
Produktinformation "MV31-W 5G Modem Card, M.2 30x42 PCIe 3.0 with LTE and 3G Fallback"
The MV31-W CR is a 5G modem card for IoT designs that need high-speed mobile broadband. It supports Stand Alone (SA) and NSA operation and can fall back to 4G LTE and 3G networks where 5G coverage is limited.
Its single SKU covers global 5G bands, including sub 6 GHz operation, so one card can serve multiple regions. The compact standard M.2 30x42 form factor with PCIe 3.0 makes it straightforward to fit into existing industrial router, gateway and computer designs.
- Suited to industrial routers and gateways, digital signage, industrial computers and tablets.
- Operating temperature range of -30°C ~ +70°C, with storage up to +85°C.
- Certified to RED, FCC, RoHS and WEEE.
Applications
- Industrial routers and gateways
- Digital signage
- Industrial computers and tablets
| Product type: | 5G modem card |
|---|---|
| Interface: | M.2 (PCIe 3.0) |
| Operating temperature: | -30 ~ +70 °C |
Specifikationer
| 3G System | |
|---|---|
| Frequency Band | FDD Bands: 1, 2, 4, 5, 6, 8, 9, 19 |
| 4G System | |
| Frequency Band | FDD-LTE Bands: 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 66, 71 TD-LTE Bands: 34, 38, 39, 40, 41, 42, 46 (LAA),48 (CBRS) |
| 5G System | |
| Frequency Band | FR1 FDD-LTE Bands: n1, n2, n3, n5, n7, n8, n12, n20, n28, n66, n71 FR1 TD-LTE Bands: n38, n41, n77, n78, n79 |
| Mechanical | |
| Dimensions (mm) | 30.0 x 42.0 x 2.5 (W x L x H) |
| Environment | |
| Operating Temperature | -30°C ~ +70°C |
| Storage Temperature | -30°C ~ +85°C |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
