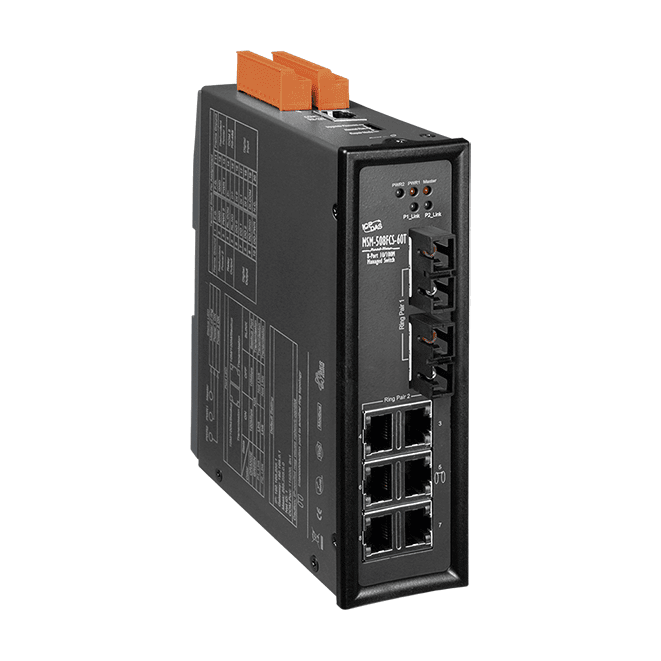

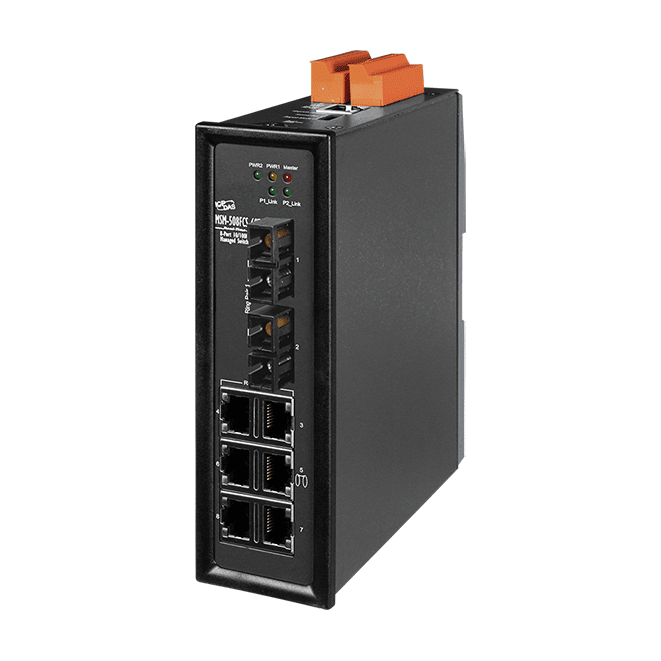

MSM-508FCS-60T Layer 2 Managed Switch, 8-Port with Single-Mode Fiber (60 km)
8-port Layer 2 managed Ethernet switch with 6 copper RJ-45 ports and 2 single-mode SC fiber ports rated for 60 km, with Cyber-Ring redundancy and Modbus monitoring.
- 6 x RJ-45 10/100Base-TX copper ports plus 2 x 100Base-FX single-mode fiber ports with SC connectors
- Single-mode fiber distance of 60 km, with 9/125 μm fiber recommended for full duplex operation
- Built-in Cyber-Ring and spanning tree redundancy, with recovery from link failure in approximately 20 ms
- Redundant dual DC power inputs (+12 VDC ~ +48 VDC) with reverse polarity protection and relay alarm output
- Modbus/TCP, Modbus/RTU and OPC support for monitoring Ethernet and fiber port status
- 3 digital inputs and 3 digital outputs for field signalling
8 568,40 kr per st.
| 1–9 st. | 8 568,40 kr | |
|---|---|---|
| 10–30 st. | 8 314,11 kr | −3 % |
| 31+ st. | 8 148,27 kr | −5 % |
Produktinformation "MSM-508FCS-60T Layer 2 Managed Switch, 8-Port with Single-Mode Fiber (60 km)"
The MSM-508FCS-60T is an industrial Layer 2 managed switch that carries Ethernet traffic over single-mode fiber, so links are immune to EMI/RFI and electrical surges. It suits runs where the transmission path must be kept electrically isolated from the plant, with reach up to 60 km on the SC fiber ports.
Management is available through an RS-232 console or over Ethernet via Telnet or a web browser. Managed features include 802.1Q tag-based and port-based VLANs, 802.1p QoS, port trunking, spanning tree, cable testing and port mirroring. The built-in Cyber-Ring technique allows several switches to form a redundant ring, with recovery from a fiber or copper link failure in approximately 20 ms.
Two DC inputs can be connected to live sources at the same time, so the unit keeps running if one supply fails. A relay alarm output signals power or network link failures, and Modbus/TCP, Modbus/RTU and OPC let a SCADA system read the status of the Ethernet and fiber ports.
Applications
- Long-distance industrial Ethernet links where fibre immunity to EMI/RFI and surges is required
- Redundant ring networks for plant and process communication
- SCADA monitoring of network and power status via Modbus or OPC
| Product type: | Managed Switch |
|---|---|
| Interface: | RJ-45, SC fiber |
| Protocol: | Modbus TCP |
| Digital inputs: | 3 |
| Digital outputs: | 3 |
| Relay outputs: | Yes |
| Ports: | 8 |
| Isolation: | 1500 Vrms |
| Power input: | +12 VDC ~ +48 VDC |
| Operating temperature: | -30 ~ +75 °C |

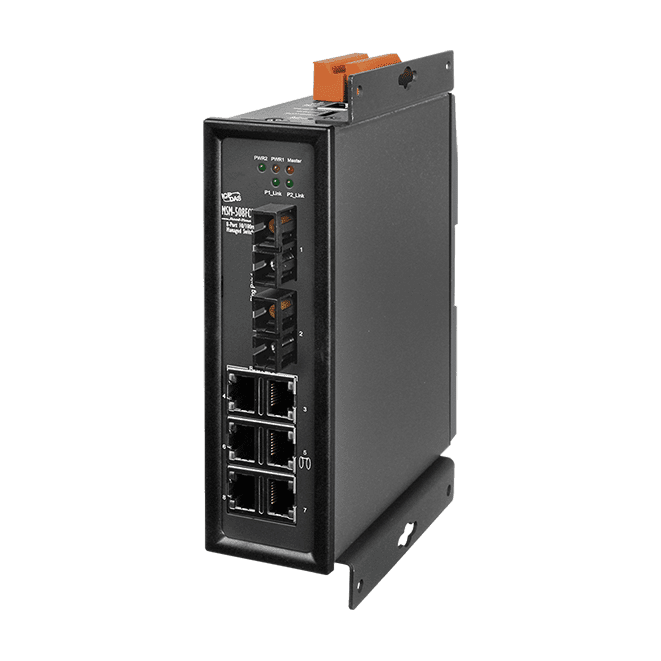

| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifikationer

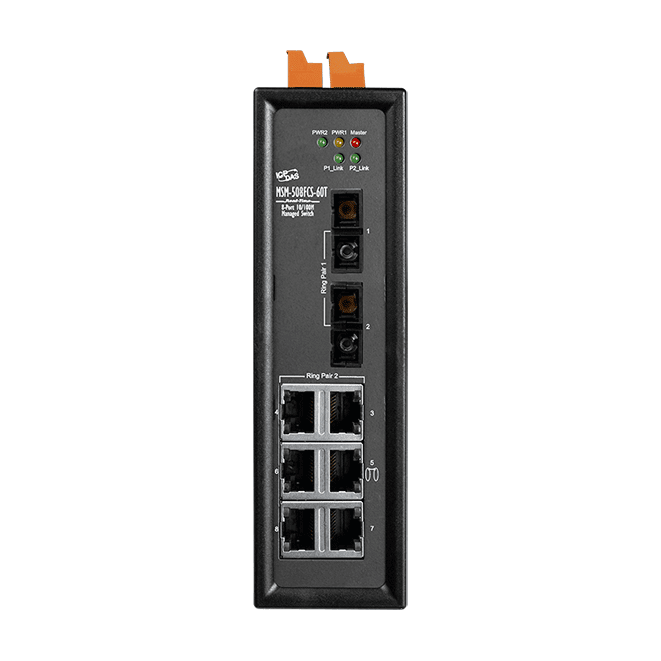

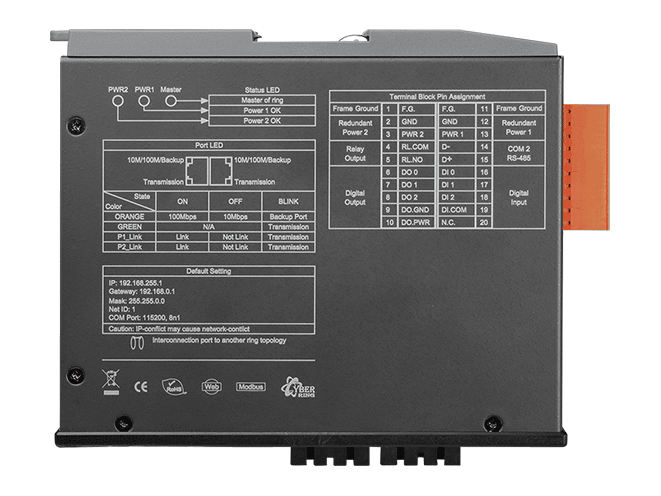

| LED Indicators | |
|---|---|
| Status | 10/100M, Link/Act, Full duplex/Half duplex (Fiber Port) |
| Ethernet | |
| Ports | 6 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u and 802.3x |
| Processing Type | Store & forward, wire speed switching |
| MAC Table | 2048 |
| Memory Bandwidth | 3.2 Gbps |
| Frame Buffer Memory | 1 Mbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Protocol | VLAN, QoS, Port Trunk, SMTP, TELNET |
| Redundant Strategy | STP, Ring (ICP DAS) |
| Isolation | 1500 Vrms 1 minute |
| DIP Switch | Yes, Normal Run / Repair Mode |
| Fiber | |
| Ports | 2-port 100 Base-FX SC connector |
| Mode | Single-Mode |
| Fiber Cable | 8.3/125, 8.7/125, 9/125 or 10/125 μm |
| Distance | 60 km, (9/125 μm recommended) for full duplex |
| Wavelength | 1300 or 1310 nm |
| TX Output | -5 dBm Min. 0 dBm Max. |
| RX Sensitivity | -35 dBm |
| Digital Input | |
| Channels | 3 |
| Type | Wet Contact |
| ON Voltage Level | +19 VDC ~ +30 VDC |
| OFF Voltage Level | +11 VDC Max. |
| Digital Output | |
| Channels | 3 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| Load Current | 30V/100 mA Max. |
| COM Ports | |
| Ports | 1 x RS-232 (Console) 1 x RS-485 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +12 VDC ~ +48 VDC Redundant Dual Inputs (Non-isolated) |
| Redundant Power Inputs | Yes |
| Consumption | 0.3 A @ 24 VDC |
| Alarm Output | Yes,Relay 2 A @ 30 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | DIN-rail mounting: 47 x 175 x 142 (W x L x H) Wall mounting: 51 x 190 x 142 (W x L x H) |
| Installation | DIN-rail mounting or wall mounting |
| Ingress Protection Rating | IP30 |
| Environment | |
| Operating Temperature | -30 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
