MDC-714 Modbus Data Concentrator, Ethernet to 1x RS-232 and 4x RS-485
Modbus data concentrator with one Ethernet port, one RS-232 and four RS-485 ports. It merges data from serial Modbus devices into a continuous address space for bulk reading by a Modbus TCP host.
- One 10/100 Base-TX Ethernet port acting as a Modbus TCP slave, supporting up to 8 simultaneous Modbus TCP connections
- One 5-wire RS-232 port and four 2-wire RS-485 ports, each usable as a Modbus RTU master or slave
- Each COM port can use its own baud rate, data format and timeout settings, from 1200 to 115200 baud
- Modbus polling definitions for up to 250 commands across all RS-232/485 ports
- Shared memory of 9600 registers each for AI, AO, DI and DO data
- Combines data from multiple devices into a continuous address for efficient bulk reading and writing
4 146,00 kr per st.
| 1–9 st. | 4 146,00 kr | |
|---|---|---|
| 10–30 st. | 4 024,38 kr | −3 % |
| 31+ st. | 3 935,94 kr | −5 % |
Produktinformation "MDC-714 Modbus Data Concentrator, Ethernet to 1x RS-232 and 4x RS-485"

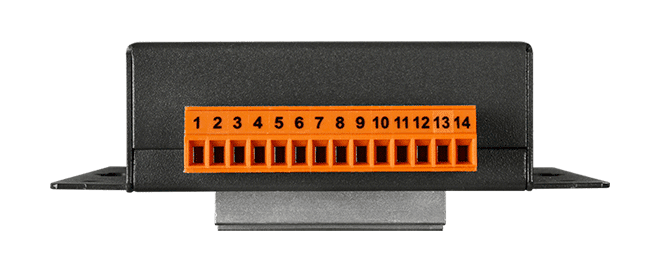

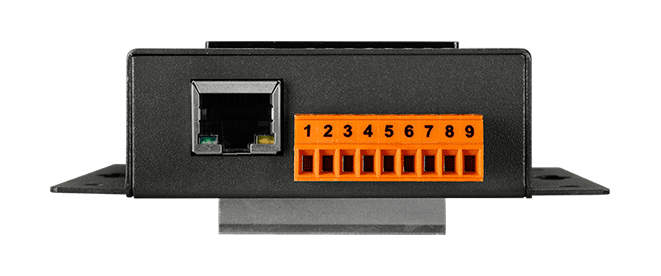

MDC-714 CR is a Modbus data concentrator that bridges serial Modbus devices to an Ethernet network. Its single Ethernet port acts as a Modbus TCP slave, while the RS-232 and four RS-485 ports can each operate as a Modbus RTU master or slave, so existing serial devices can be brought onto an Ethernet-based system without replacing them.
The unit polls the connected devices through a user-defined command table, reads their data port by port and merges it into a continuous address format. A host computer can then read or write the combined data in a single transaction, which reduces Ethernet traffic and simplifies system architecture. Write commands are queued with first priority to keep updates fast.

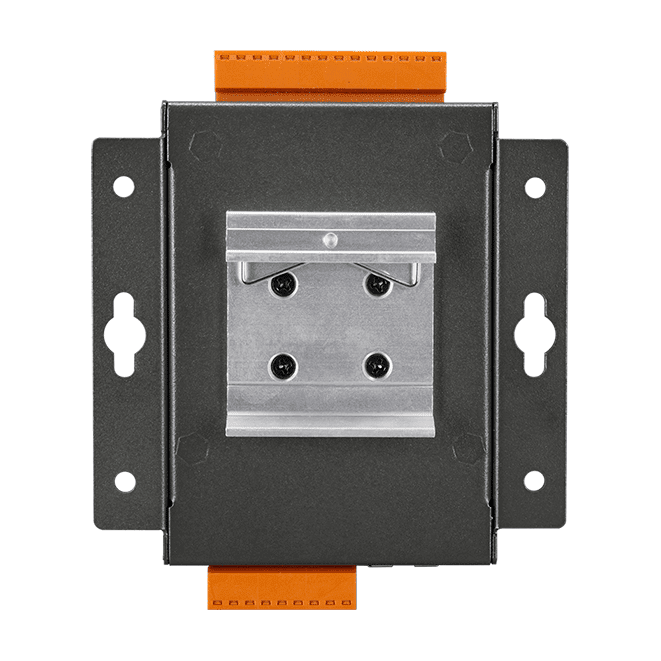

Configuration is handled through a simple CSV file, with an HTML5 web-based interface for importing and exporting settings and starting the system. The metal casing is designed for wall mounting and the unit operates from a +10 VDC to +30 VDC non-regulated supply across -25 to +75 °C.
Applications
- Upgrading legacy Modbus RTU devices to Ethernet-based systems
- SCADA systems and centralised data monitoring
- Consolidating data from multiple serial Modbus devices for a single host
| Product type: | Modbus data concentrator |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus RTU, Modbus TCP |
| Ports: | 1 Ethernet, 1 RS-232, 4 RS-485 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | Wall mounting |
| Housing: | Metal |
Specifikationer
| Display | |
|---|---|
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x System, to display heart beat |
| Ethernet | |
| Ports | x1, 10/100 Base-TX |
| Protocol | Modbus/TCP Slave |
| COM Ports | |
| Ports | MDC-711: 1 x 5-wire RS-232, 1 x 2-wire RS-485 MDC-714: 1 x 5-wire RS-232, 4 x 2-wire RS-485 MDC-714i: 1 x 5-wire RS-232, 1 x 2-wire RS-485, 3 x 2-wire RS-485 (2500 VDC Signal Isolation) MDC-741: 4 x 5-wire RS-232, 1 x 2-wire RS-485 MDC-771: 1 x 5-wire RS-232, 6 x 3-wire RS-232, 1 x 2-wire RS-485 |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Data Format | N81, E81, O81 |
| Protocol | Modbus RTU Master/Modbus RTU Slave |
| Polling Definition | 250 definitions for all RS-232/485 ports |
| Shared Memory | 9600 registers for each of AI, AO, DI and DO data |
| Power | |
| Input Range | +10 VDC ~ +30 VDC (non-regulated) |
| Consumption | 2.5 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 102 mm x 125 mm x 28 mm (W x H x D) |
| Installation | Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
