IWS-6201-CE7-1500 15-inch InduSoft ViewPAC, 1500 Tags, WinCE 7.0
15-inch panel-mount InduSoft PAC with resistive touch screen, InduSoft Runtime (1500 tags) and Windows CE 7.0 for HMI and control applications.
- InduSoft Runtime with 1500 tags, Windows CE 7.0 pre-installed in on-board Flash
- 15-inch 1024 x 768 TFT LCD with 5-wire resistive touch panel
- Cortex-A8 1 GHz CPU with 512 MB DDR3 SDRAM and 256 MB Flash (SSD)
- Modbus, OPC and TCP/IP client/server support, plus DCON driver for ICP DAS I/O modules
- 10/100/1000 Base-TX Ethernet, 2 x USB, and three 2500VDC isolated RS-232/RS-485 ports
- NEMA 4/IP65 front panel, fanless design, operating range -10 ~ +60 °C
Den här artikeln prissätts per order. Skicka oss antalet så svarar vi med pris och leveranstid.
Begär offert
Produkten finns inte längre tillgänglig
Produktinformation "IWS-6201-CE7-1500 15-inch InduSoft ViewPAC, 1500 Tags, WinCE 7.0"

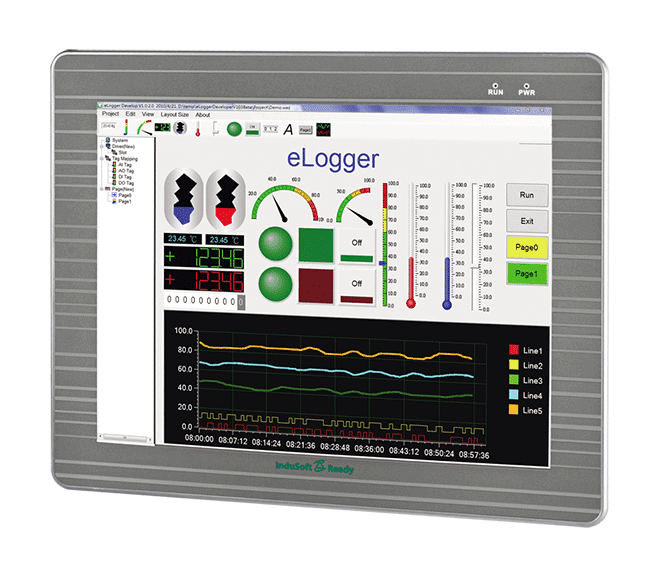

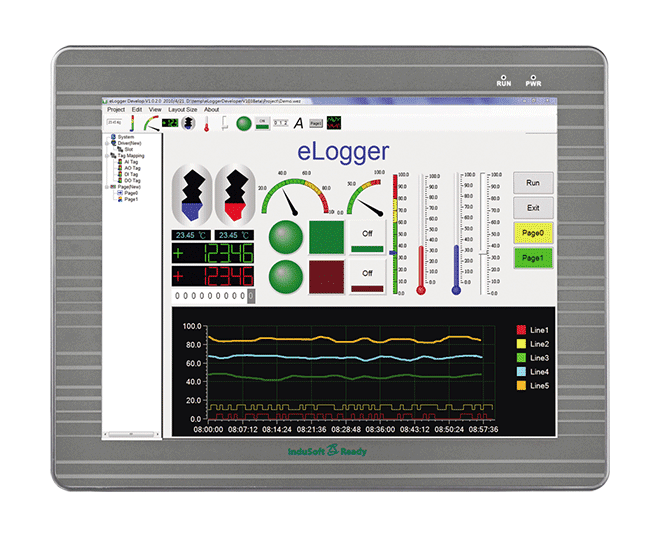

IWS-6201-CE7-1500 is a panel-mounted InduSoft PAC that combines a RISC-based controller with a 15-inch TFT touch display in a ruggedised flat-panel computer. It runs the InduSoft Runtime with a 1500-tag licence on Windows CE 7.0, making it suited to operator interfaces and control tasks where a single front-panel unit must handle both.

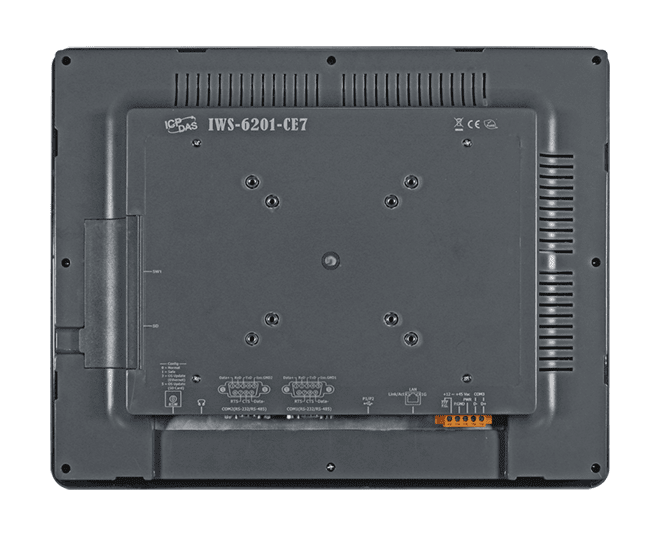

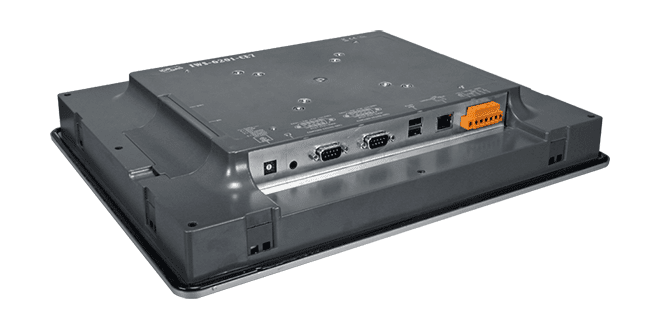

The unit has no I/O slots, so it is supplied as a standalone controller with communication ports for connecting to external devices. It offers Gigabit-rated Ethernet, two USB ports, and three isolated RS-232/RS-485 serial ports. Remote I/O can be added through ICP DAS Ethernet, RS-485, Wi-Fi and ZigBee I/O modules, and a DCON driver for ICP DAS I/O modules is provided.
The fanless design with no moving parts and a NEMA 4/IP65 rated front panel is intended for harsh industrial environments. It operates from -10 ~ +60 °C and can be powered from a +12 VDC ~ +48 VDC supply or from PoE under IEEE 802.3af.
Applications
- Panel-mounted HMI and operator terminals
- Control applications with InduSoft PAC software
- Remote I/O expansion over Ethernet, RS-485, Wi-Fi and ZigBee
| Product type: | Panel PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB |
| Protocol: | Modbus, OPC, TCP/IP |
| Ports: | 1 Ethernet, 2 USB, 3 serial |
| Isolation: | 2500 VDC |
| Power input: | +12 VDC ~ +48 VDC, PoE (IEEE 802.3af) |
| Operating temperature: | -10 ~ +60 °C |
| Mounting: | Panel |
| Housing: | NEMA 4/IP65 front panel |
Specifikationer
| Software | |
|---|---|
| OS | Microsoft Windows Embedded Compact 7 |
| Service | FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
| Framework Support | .NET Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for Visual Studio.Net |
| Main Unit | |
| CPU | Cortex-A8, 1 GHz |
| 64-bit Hardware Serial Number | Yes, for software copy protection |
| System Memory | SDRAM 512 MB (DDR3) |
| Storage | Flash (SSD) 256 MB; SD socket with a 4 GB SDHC card(support up to 32 GB) |
| Non-Volatile Memory | MRAM 128 KB; EEPROM 16 KB |
| Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
| Watchdog Timer | 0.8 second |
| Display | |
| Size | 15” (4:3) |
| Backlight Life | 50000 |
| Brightness | 400 cd/m2 |
| Resolution | 1024 x 768 |
| Touch Panel | 5-wire, resistive type; light transmission: 80% |
| Contrast Ratio | 20.834027777778 |
| LED Indicators | |
| Status | 2 x Power and Run |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| Audio | |
| Jack | Earphone-out |
| Ethernet | |
| Ports | 1 x RJ-45 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232/RS-485 DB9 connector (2500VDC Isolated); 1 x RS-232/RS-485 (2500VDC Isolated); 1 x RS-485 (2500VDC Isolated) |
| USB | |
| Connector | 2 x USB |
| Power | |
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 16 W |
| Powered from PoE | IEEE 802.3af |
| Mechanical | |
| Dimensions (mm) | 381 x 305 x 65 |
| Panel Cut-out (mm) | 362 x 286 ± 1 |
| Installation | Panel Mounting, VESA (75 x 75) Mounting |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Environment | |
| Operating Temperature | -10 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
