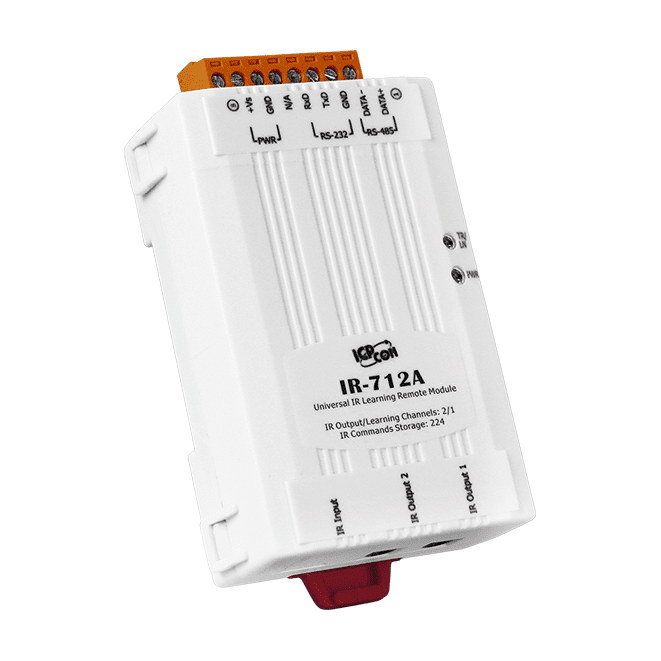

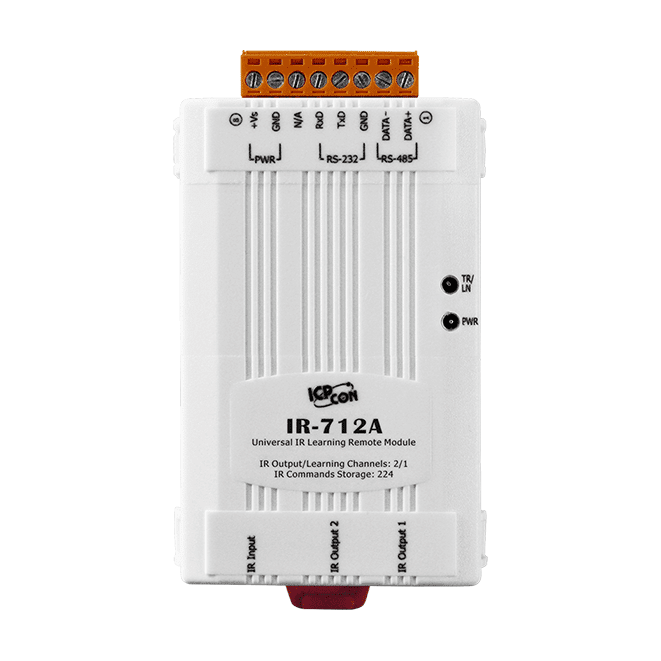

IR-712A Universal IR Learning Module, 2-ch IR Output, RS-232/RS-485
Universal IR learning module with 2 IR outputs and a 224-command capacity, controlled over RS-232 or RS-485 using Modbus RTU or DCON. Supplied with 2x CA-IR-SH2251 emitter cables.
- Two IR output channels for individual or simultaneous control of multiple devices
- One IR learning input supporting 33, 36, 37, 38, 40 and 56 kHz carrier frequencies
- Command capacity of 224 IR commands
- RS-232 and RS-485 serial interfaces with baud rates from 9600 to 115200 bps
- Modbus RTU Slave and DCON ASCII string command support
- Software utility and API library for configuration, learning, testing and PC development
1 370,94 kr per st.
| 1–9 st. | 1 370,94 kr | |
|---|---|---|
| 10–30 st. | 1 337,78 kr | −2 % |
| 31+ st. | 1 304,61 kr | −5 % |
Produktinformation "IR-712A Universal IR Learning Module, 2-ch IR Output, RS-232/RS-485"
The IR-712A learns IR remote commands from a wide range of electronic equipment and replays them on demand, so an engineer can replace handheld remotes with a device that a control system can drive. Learned commands can be held in the module or saved to a file for reuse.
Two IR output channels allow individual or simultaneous control of several devices. Commands are issued over RS-232 or RS-485 using Modbus RTU Slave or the DCON ASCII string command set, which makes the module straightforward to add to a Modbus master such as a PAC, PLC or PC.
A bundled software utility covers configuration, learning, testing and storage of IR commands, and an API library is available for PC program development. This ordering code includes 2x CA-IR-SH2251 IR emitter cables.
Applications
- Home entertainment devices
- Video conferencing systems
- Surveillance systems
- e-Classroom services
- Lighting scenario control
- Home and building automation
- ICP DAS PC with the IR remote application
| Product type: | IR learning module |
|---|---|
| Interface: | RS-232, RS-485 |
| Protocol: | DCON, Modbus RTU |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| LED Indicators | |
|---|---|
| Status | 1 x TR/LN (IR Transmitting/Learning) 1 x PWR (Power) |
| Infrared | |
| IR Learning Input | 1 channel. Supports 6 IR carrier frequencies: 33, 36, 37, 38, 40, 56 kHz. |
| IR Output Channels | 2 channels with 3.5 mm audio jack |
| IR Remote Commands | Capacity: 224 |
| COM Ports | |
| Ports | RS-232 (TxD, RxD, GND) RS-485 (DATA+, DATA-) |
| Baud Rate | 9600, 19200, 38400, 57600, 115200 bps |
| Protocol | Modbus RTU Slave |
| Power | |
| Consumption | Stand By: 0.6W Using 1 IR output: 2.3W Using 2 IR Outputs: 4 W (Max.) |
| Mechanical | |
| Dimensions (mm) | 52 x 27 x 93 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
