I-9028U 8-ch Isolated Analog Output Module, Voltage and Current
Eight-channel isolated analog output module with individually configurable voltage or current ranges, 16-bit resolution and short circuit protection for the I-9K/I-97K series.
- Eight single-ended analogue outputs, each individually configurable
- Voltage ranges 0 ~ +5 V, ±5 V, 0 ~ +10 V and ±10 V, plus current ranges 0 ~ +20 mA and +4 ~ +20 mA
- 16-bit resolution with accuracy of ±0.02% of FSR
- Open wire detection for +4 ~ +20 mA output
- Power-on value and safe value settings
- Short circuit protection on each output
3 833,51 kr per st.
| 1–9 st. | 3 833,51 kr | |
|---|---|---|
| 10–30 st. | 3 722,71 kr | −3 % |
| 31+ st. | 3 645,16 kr | −5 % |
Produktinformation "I-9028U 8-ch Isolated Analog Output Module, Voltage and Current"

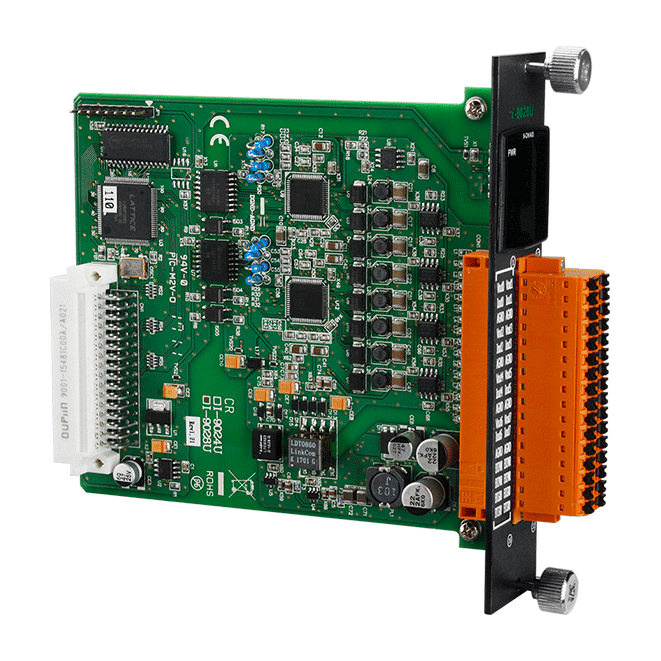

The I-9028U CR is an eight-channel, source-type analogue output module for the I-9K/I-97K series. Each channel is configured on its own, so one module can provide a mix of 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V, +4 ~ +20 mA and 0 ~ +20 mA signals, with the range chosen per channel rather than for the whole module.
It suits installations where outputs must start and stay in a known state. Power-on and safe values can be set for the channels, open wire detection is provided for the +4 ~ +20 mA range, and each output is protected against short circuits. The module offers 3000 VDC intramodule isolation and ±4 kV contact ESD protection on each terminal.
The module is powered from the terminal block at 15 ~ 30 VDC, draws 2 W maximum and is rated for operation from -25 ~ +75 °C. Its dimensions are 31 x 134 x 144 mm (W x L x H).
Applications
- Analogue control outputs in I-9K/I-97K PAC I/O systems
- Expansion of analogue output points in existing I-9K/I-97K installations
| Product type: | Analog output module |
|---|---|
| Analog outputs: | 8 |
| Isolation: | 3000 VDC |
| Power input: | 15 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Analog Output | |
| Channels | 8 |
| Range | Voltage: 0 ~ +5 VDC、±5 VDC、0 ~ +10 VDC、±10 VDC Current: 0 ~ +20 mA、+4 ~ +20 mA |
| Resolution | 16-bit |
| Accuracy | ±0.02% of FSR |
| Zero Drift | ±0.2 μV/°C |
| Span Drift | ±25 ppm/°C |
| Short Circuit Protection | Yes |
| Response Time | 105 us per channel |
| Programmable Output Slope | Voltage: 0.5 V/us Current: 0.024 mA/us |
| Current Output Wiring | Source |
| Power-on Value | Yes |
| Safe Value | Yes |
| Power | |
| Reverse Polarity Protection | Yes |
| Isolation | 3000 VDC |
| Consumption | 2 W Max. |
| Powered from Terminal Block | Yes, 15 ~ 30 VDC |
| Mechanical | |
| Dimensions (mm) | 31 x 134 x 144 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
