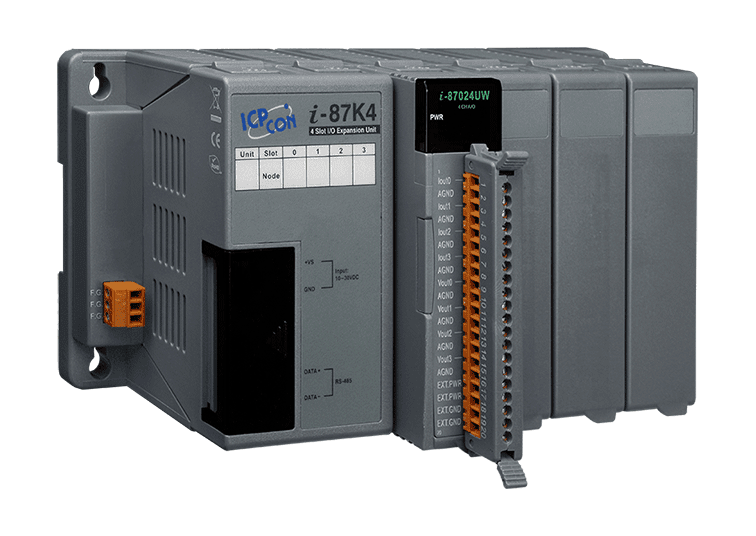

I-87K4-G RS-485 I/O Expansion Unit, 4-Slot for I-87K Modules
4-slot RS-485 expansion unit for I-87K series I/O modules, using the DCON protocol over a multi-drop RS-485 bus. Grey cover, -25 ~ +75 °C operating range.
- Four slots for I-87K series I/O modules, with the unit controlled over RS-485
- DCON protocol on a single RS-485 port, rated for multi-drop topologies
- Port isolated at 3000 VDC for noise-prone installations
- Wide 10 ~ 30 VDC power input with isolated power supply
- Operating temperature range of -25 ~ +75 °C; storage -30 ~ +75 °C
- Up to 115200 bps baud rate
1 791,07 kr per st.
| 1–9 st. | 1 791,07 kr | |
|---|---|---|
| 10–30 st. | 1 735,79 kr | −3 % |
| 31+ st. | 1 702,62 kr | −5 % |
Produktinformation "I-87K4-G RS-485 I/O Expansion Unit, 4-Slot for I-87K Modules"
I-87K4-G CR extends I/O over RS-485 by carrying up to four I-87K series I/O modules on a single unit. It suits remote or distributed I/O layouts where several expansion points share one serial bus and the modules need to be kept close to the field devices they serve.
The unit is built for harsh and noisy sites. It accepts a 10 ~ 30 VDC supply with isolated power input and operates across -25 ~ +75 °C. The RS-485 port is isolated at 3000 VDC, which helps protect the bus in electrically demanding installations.
More than 30 I-87K modules are supported, covering analog input and output, digital input and output, counter and frequency functions. Software support includes DLL, ActiveX, LabVIEW, InduSoft and Linux drivers, plus an OPC server, so modules installed in the unit can be integrated into a range of control and data acquisition systems.
Applications
- Remote I/O expansion over RS-485 in harsh or electrically noisy environments
- Distributed analog and digital I/O for monitoring and control systems
- Counter and frequency measurement at remote points on a serial bus
| Product type: | I/O Expansion Unit |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | 10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Gray |
Specifikationer
| LED Indicators | |
|---|---|
| Status | 1 x Power |
| I/O Expansion | |
| I/O Type | High profile I-87K |
| Slots | 4 |
| COM Ports | |
| Ports | 1 x RS-485 (3000 VDC Isolated) |
| Baud Rate | 115200 bps Max. |
| Protocol | DCON |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 2.0 W |
| Mechanical | |
| Dimensions (mm) | 231 x 111 x 75 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
