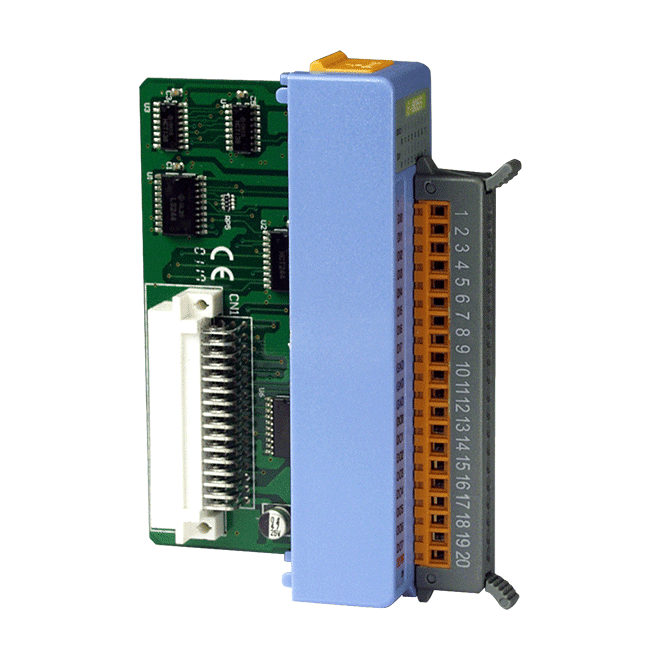

I-8055 Digital I/O Module, 8-ch Dry Contact DI and 8-ch Sink DO
The I-8055 CR provides 8 non-isolated dry contact digital inputs and 8 sink-type NPN open-collector outputs, with 16 LED status indicators and 4 kV ESD protection on all I/O channels.
- 8 non-isolated dry contact digital input channels
- 8 non-isolated sink-type (NPN) open-collector digital output channels
- Digital output load voltage +5 VDC to +30 VDC, 100 mA per channel
- 16 LED indicators for monitoring I/O channel status
- ±4 kV ESD protection on each terminal (IEC 61000-4-2)
- Operating temperature -25 to +75 °C, storage -40 to +85 °C
906,59 kr per st.
| 1–9 st. | 906,59 kr | |
|---|---|---|
| 10–30 st. | 873,42 kr | −4 % |
| 31+ st. | 862,37 kr | −5 % |
Produktinformation "I-8055 Digital I/O Module, 8-ch Dry Contact DI and 8-ch Sink DO"
I-8055 CR is a PAC I/O module that combines 8 non-isolated digital input channels and 8 non-isolated digital output channels in one unit. The inputs are designed for dry contact connections, where a switch or relay contact to GND sets the channel ON and an open contact sets it OFF. The outputs are sink-type open collector channels that switch to ground with a load voltage of +5 VDC to +30 VDC and up to 100 mA per channel.
Each channel status can be checked visually, as the module carries 16 LED indicators for the I/O channels, plus a power and communication indicator. Each terminal is rated for ±4 kV ESD protection (IEC 61000-4-2) as standard, which helps the module tolerate electrostatic discharge during installation and service.
The blue cover version (CR ordering code) is the variant offered here. The module suits machine and building control cabinets where a compact, low-profile I/O block with simple contact inputs and sink outputs is needed. Power consumption is 1 W maximum, and the unit is rated for operation from -25 to +75 °C.
Applications
- Building automation
- Factory automation
- Machine automation
- Remote maintenance
- Remote diagnosis
- Testing equipment
| Product type: | Digital I/O Module |
|---|---|
| Digital inputs: | 8 |
| Digital outputs: | 8 |
| Isolation: | Non-isolated |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication 16 x I/O |
| Digital Input | |
| Channels | 8 Non-isolated Digital logic |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| ON Voltage Level | Connect to GND |
| OFF Voltage Level | Open |
| Digital Output | |
| Channels | 8, Non-isolated |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 VDC ~ +30 VDC |
| Load Current | 100 mA/Channel |
| Power | |
| Consumption | 1 W Max. |
| Mechanical | |
| Dimensions (mm) | 31 x 116 x 88 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
