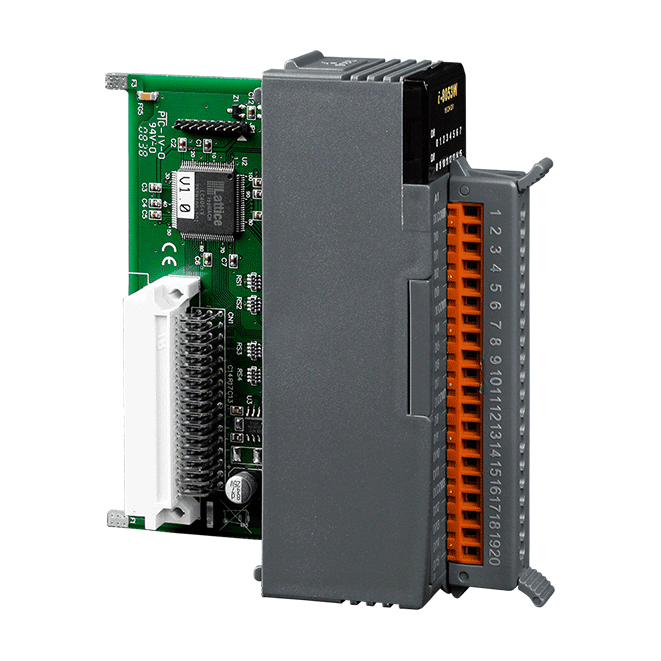

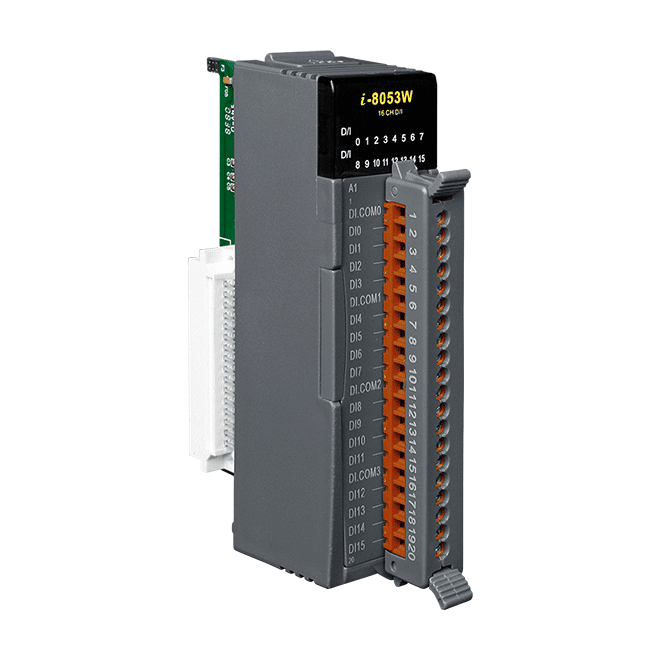

I-8053W-A1-G 16-ch Isolated Wet Contact DI Module, 3.5~30 VDC
16-channel isolated digital input module for wet contact signals, accepting 3.5~30 VDC with sink/source input type, 3750 VDC intra-module isolation and 4 kV ESD protection.
- 16 isolated digital input channels for wet contact signals
- Sink/Source (NPN/PNP) input type support
- ON level +3.5 ~ +30 VDC, OFF level +1 VDC max.
- 3750 VDC intra-module isolation with photocoupler protection
- ±4 kV contact ESD protection on each terminal (IEC 61000-4-2)
- 16 I/O LEDs plus a power and communication LED
1 127,71 kr per st.
| 1–9 st. | 1 127,71 kr | |
|---|---|---|
| 10–30 st. | 1 094,54 kr | −3 % |
| 31+ st. | 1 072,43 kr | −5 % |
Produktinformation "I-8053W-A1-G 16-ch Isolated Wet Contact DI Module, 3.5~30 VDC"
The I-8053W-A1-G is a 16-channel digital input module from the I-8K/I-87K High Profile series, designed to read wet contact signals in industrial control systems. Each channel accepts an ON level from +3.5 to +30 VDC and reads OFF at +1 VDC maximum, with sink/source (NPN/PNP) input type support.
Each input is photocoupler isolated, and the module provides 3750 VDC intra-module isolation. Its ±4 kV contact ESD protection on every terminal, tested to IEC 61000-4-2, supports reliable operation where electrical noise is a concern.
Status is shown by 16 I/O LEDs and a power and communication LED, which helps with commissioning and fault finding. The module draws 0.4 W maximum and operates from -25 to +75 °C.
Applications
- Monitoring wet contact digital inputs in industrial environments
| Product type: | Digital input module |
|---|---|
| Digital inputs: | 16 |
| Isolation: | 3750 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication 16 x I/O |
| Digital Input | |
| Channels | 16 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +3.5 ~ +30 VDC |
| OFF Voltage Level | +1 VDC Max. |
| Input Impedance | 10 kΩ, 1W |
| Power | |
| Consumption | 0.4 W Max. |
| Mechanical | |
| Dimensions (mm) | 30 x 102 x 115 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 5 ~ 95 % RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
