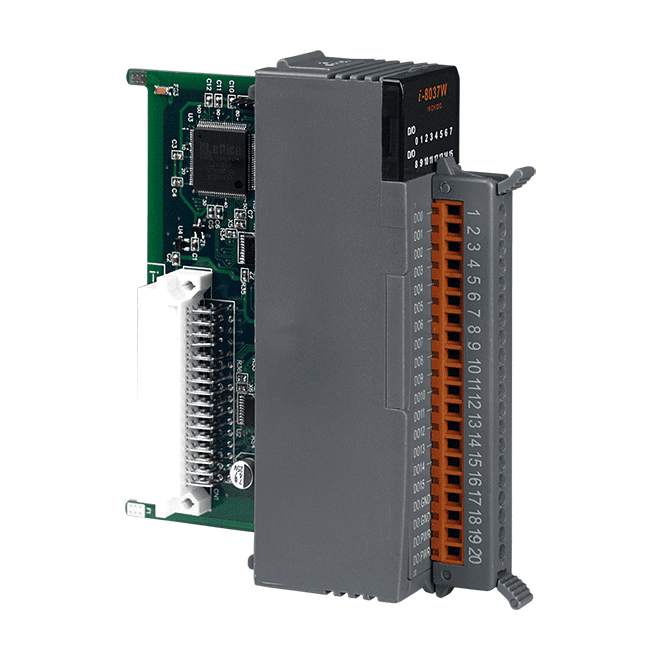

I-8037W-G Isolated Digital Output Module, 16-ch Source (PNP) 5~30 VDC
16-channel isolated source-type (PNP) digital output module with a 5~30 VDC load range, 100 mA per channel and short circuit protection.
- 16 isolated digital output channels, source (PNP) type
- Load voltage +5 ~ +30 VDC with 100 mA per channel
- Short circuit protection on source-type outputs
- Configurable power-on and safe digital output values
- 3750 VDC intra-module isolation
- ±4 kV ESD protection (IEC 61000-4-2) on each terminal
1 440,34 kr per st.
| 1–9 st. | 1 440,34 kr | |
|---|---|---|
| 10–30 st. | 1 396,02 kr | −3 % |
| 31+ st. | 1 362,78 kr | −5 % |
Produktinformation "I-8037W-G Isolated Digital Output Module, 16-ch Source (PNP) 5~30 VDC"
I-8037W-G is a 16-channel digital output module for PAC I/O systems. Each channel is photocoupler-isolated and works as a source-type (PNP) output, so it switches the positive side of the load. Each channel can drive up to 100 mA across a load voltage of +5 ~ +30 VDC.
Outputs are protected against short circuits, and power-on and safe digital output values can be configured, so the field side can be put into a defined state on start-up or during a fault. The module provides 3750 VDC intra-module isolation and ±4 kV ESD protection on each terminal, which suits electrically noisy industrial cabinets.
The G variant in this ordering code is supplied with RoHS compliance noted in the product data. Status LEDs show power and communication, plus one indicator for each of the 16 I/O channels.
Applications
- Industry automation
- Industrial machinery
- Building automation
- Food and beverage
- Semiconductor fabrication
- Control systems
| Product type: | Digital output module |
|---|---|
| Digital outputs: | 16 |
| Isolation: | 3750 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication 16 x I/O |
| Digital Output | |
| Channels | 16 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Source |
| Load Voltage | +5 ~ +30 VDC |
| Load Current | 100 mA/Channel |
| Power | |
| Consumption | 0.9 W Max. |
| Mechanical | |
| Dimensions (mm) | 30 x 102 x 115 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
