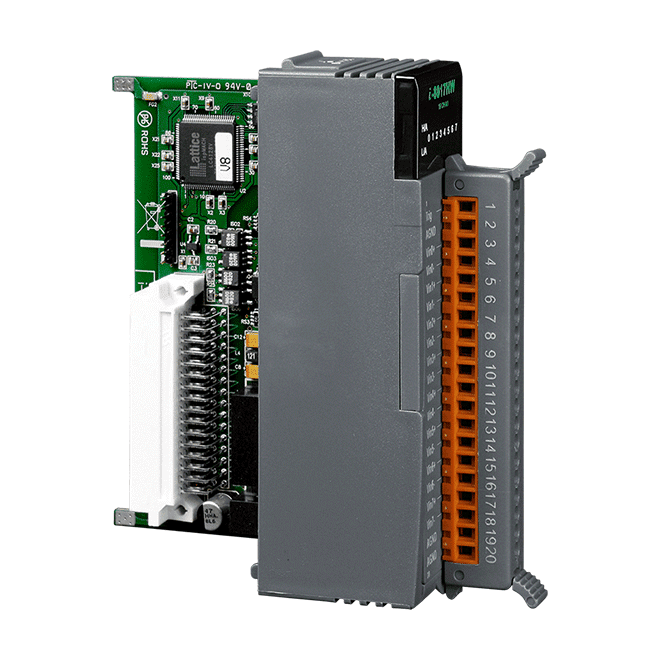

I-8017HW-G Analog Input Module, 8/16-ch 14-bit 100 kHz
High-speed analog input module with 8 differential or 16 single-ended channels, 14-bit resolution and voltage ranges to ±10 VDC. Current input needs an external 125 Ω resistor.
- 8 differential or 16 single-ended analog inputs
- Voltage or ±20 mA current input, configurable per channel
- 14-bit resolution with 100 kHz bandwidth
- Up to 90 kS/s in single channel polling mode
- 2500 VDC intra-module isolation
- ±4 kV ESD protection contact for each terminal
3 239,41 kr per st.
| 1–9 st. | 3 239,41 kr | |
|---|---|---|
| 10–30 st. | 3 139,90 kr | −3 % |
| 31+ st. | 3 073,57 kr | −5 % |
Produktinformation "I-8017HW-G Analog Input Module, 8/16-ch 14-bit 100 kHz"
I-8017HW-G CR is a high-speed analog input module for data acquisition and control work where sampling speed and channel flexibility matter. It accepts 8 differential or 16 single-ended inputs, and each channel can be set to its own input range, from ±10 VDC down to ±1.25 VDC, or ±20 mA when current measurement is required.
Single channel polling mode delivers up to 90 kS/s, with a 100 kHz bandwidth and 14-bit resolution. Input impedance is jumper selectable at 20 K, 200 K or 20 M, which helps match the module to the signal source. Current measurement depends on an optional external 125 Ω resistor, which must be fitted separately.
The module provides 2500 VDC intra-module isolation and ±4 kV ESD protection on each terminal, and it has a 20-pin terminal block. Its operating range of -25 ~ +75 °C suits industrial enclosures.
Applications
- High speed data acquisition systems
- Process monitoring and control
- Vibration analysis
- Digital pattern generation from digital I/O port
| Product type: | Analog Input Module |
|---|---|
| Analog inputs: | 8 differential/16 single-ended |
| Isolation: | 2500 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication 16 x I/O |
| Analog Input | |
| Channels | 16-ch Single-ended/8-ch Differential |
| Range | Voltage: ±10 VDC, ±5 VDC, ±2.5 VDC, ±1.25 VDC Current: ±20 mA, Requires Optional External 125 Ω Resistor |
| Resolution | 14-bit |
| Accuracy | ±0.1% of FSR |
| Sampling Rate | Single Channel Polling Mode: 90 kS/s Single Channel Interrupt Mode: 50 kS/s 8 channel Scan Mode: 16 kS/s |
| Bandwidth | 100 kHz |
| Input Impedance | 20 K, 200 K, 20 M (Jumper Selectable) |
| Individual Channel Configuration | Yes |
| Zero Drift | ±0.1 uV/°C |
| Span Drift | ±10 ppm/°C |
| Power | |
| Consumption | 2 W Max. |
| Mechanical | |
| Dimensions (mm) | 30 x 102 x 115 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
