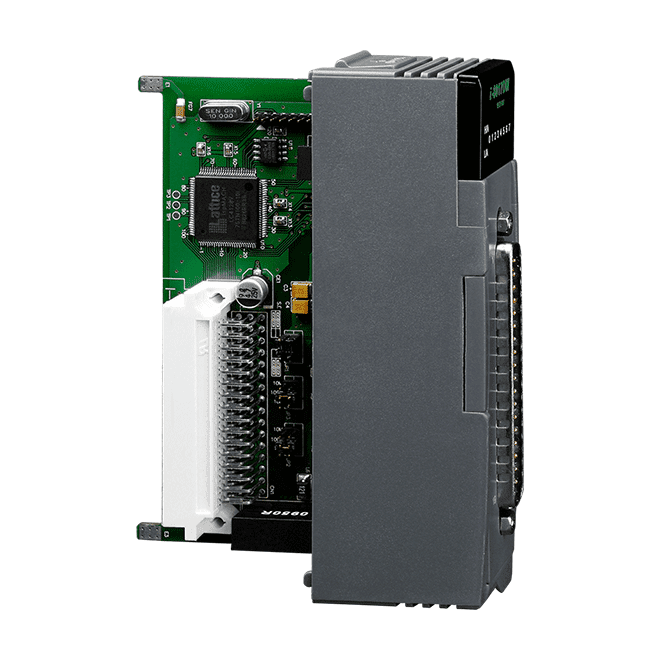

I-8017DW-G Analog Input Module, 8/16-ch, 14-bit, 100 kHz, DB37 Connector
Analog input module with 8 differential or 16 single-ended channels, 14-bit resolution and a 100 kHz bandwidth. Voltage or jumper-selectable current input, with a DB37 connector and CA-4002F included.
- 8 differential or 16 single-ended analog inputs
- Voltage or ±20 mA current input, jumper selectable
- 14-bit resolution with 100 kHz bandwidth
- Individual channel configuration: ±10, ±5, ±2.5, ±1.25 VDC or ±20 mA
- Sampling up to 90 kS/s in single-channel polling mode
- 2500 VDC intra-module isolation
3 246,29 kr per st.
| 1–9 st. | 3 246,29 kr | |
|---|---|---|
| 10–30 st. | 3 146,58 kr | −3 % |
| 31+ st. | 3 080,10 kr | −5 % |
Produktinformation "I-8017DW-G Analog Input Module, 8/16-ch, 14-bit, 100 kHz, DB37 Connector"
The I-8017DW-G is an analog input module for engineers who need fast, multi-channel acquisition from voltage or current sources. It accepts 8 differential or 16 single-ended inputs, with 14-bit resolution and a 100 kHz bandwidth.

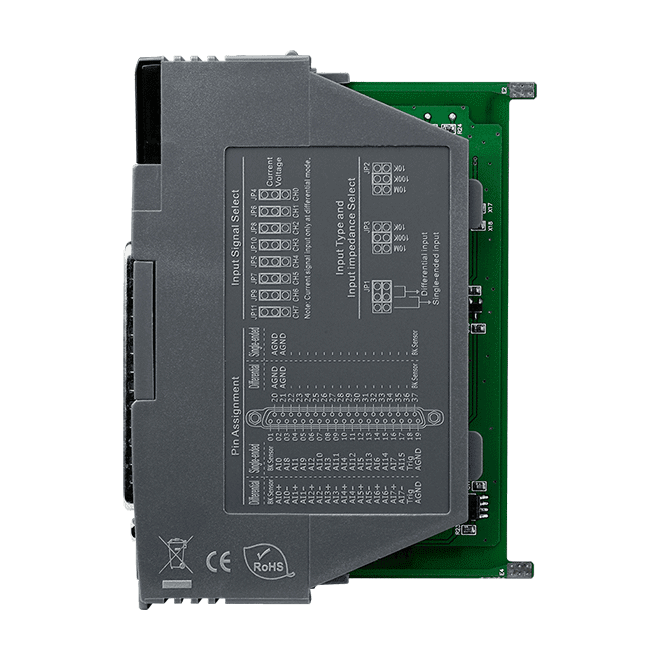

Each channel can be configured individually for ±10 VDC, ±5 VDC, ±2.5 VDC, ±1.25 VDC or ±20 mA. Current input is selected with a jumper, and the internal resistor for differential current measurement is also jumper-selectable. The module is supplied with voltage input selected by default. Sampling reaches 90 kS/s in single-channel polling mode, 50 kS/s in single-channel interrupt mode and 16 kS/s in 8-channel scan mode.

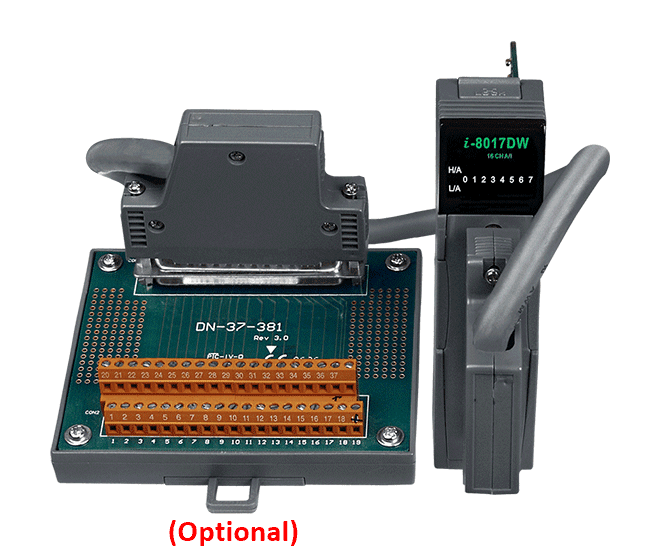

Isolation is rated at 2500 VDC intra-module, and each terminal is protected against ±4 kV ESD contact discharge. The I-8017DW-G-G CR order includes a CA-4002F DB37 female connector with plastic cover, so it is ready for field wiring.
Applications
- High speed data acquisition systems
- Process monitoring and control
- Vibration analysis
- Digital pattern generation from a digital I/O port
| Product type: | Analog Input Module |
|---|---|
| Interface: | DB37 |
| Analog inputs: | 16 single-ended / 8 differential |
| Isolation: | 2500 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication 16 x I/O |
| Analog Input | |
| Channels | 16-ch Single-ended/8-ch Differential |
| Range | Voltage: ±10 VDC, ±5 VDC, ±2.5 VDC, ±1.25 VDC Current: ±20 mA, Jumper Selectable |
| Resolution | 14-bit |
| Accuracy | ±0.1% of FSR |
| Sampling Rate | Single Channel Polling Mode: 90 kS/s Single Channel Interrupt Mode: 50 kS/s 8 channel Scan Mode: 16 kS/s |
| Bandwidth | 100 kHz |
| Input Impedance | 20 K, 200 K, 20 M (Jumper Selectable) |
| Individual Channel Configuration | Yes |
| Zero Drift | ±0.1 uV/°C |
| Span Drift | ±10 ppm/°C |
| Power | |
| Consumption | 2 W Max. |
| Mechanical | |
| Dimensions (mm) | 30 x 85 x 114 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
