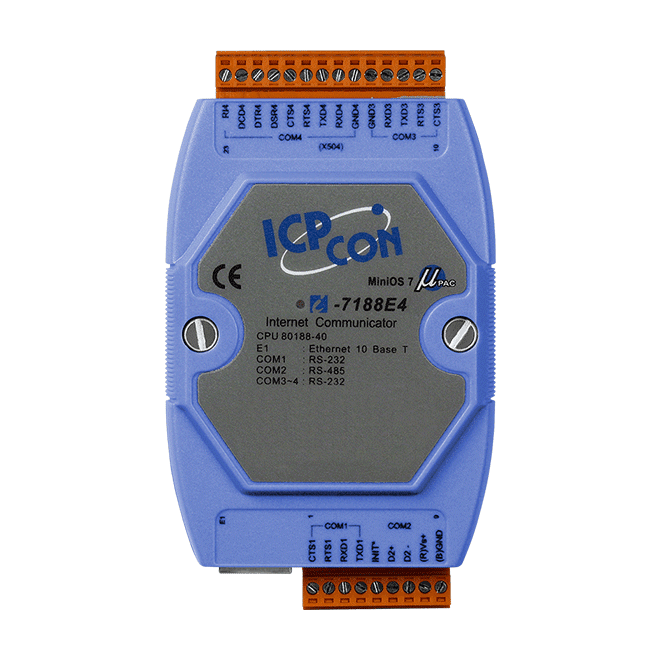

I-7188E4 Programmable Ethernet to Serial Converter, 3x RS-232 + 1x RS-485
Programmable Ethernet-to-serial converter linking three RS-232 devices and one RS-485 device to a network via Virtual COM or raw TCP. Powered from +10 to +30 VDC.
- Three RS-232 ports and one RS-485 port, bridged to Ethernet
- Virtual COM operation with the VxComm driver for 32-bit and 64-bit Windows 7 SP1/10/2012/2016
- Raw TCP connection option for direct socket communication
- Built-in MiniOS7 with programmable Xserver structure
- Watchdog timer suitable for harsh environments
- Removable on-board terminal block for industrial wiring
2 996,18 kr per st.
| 1–9 st. | 2 996,18 kr | |
|---|---|---|
| 10–30 st. | 2 907,73 kr | −3 % |
| 31+ st. | 2 841,39 kr | −5 % |
Produktinformation "I-7188E4 Programmable Ethernet to Serial Converter, 3x RS-232 + 1x RS-485"
The I-7188E4 CR is a programmable device server that brings RS-232 and RS-485 serial equipment onto an Ethernet network. It provides three RS-232 ports and one RS-485 port, so it suits engineers who need to network several legacy serial devices without redesigning them.
Serial data can be passed through as a Virtual COM port on a Windows PC, using the VxComm driver, or over a raw TCP connection for direct socket-based communication. The built-in MiniOS7 runs the programmable logic, and the unit includes a watchdog timer for use in harsh environments. A removable on-board terminal block simplifies wiring.
Compact enough to be described as palm-sized, the unit accepts a non-regulated +10 VDC to +30 VDC supply with reverse polarity protection and is rated for -25 °C to +75 °C operation. It carries CE, UKCA, FCC, RoHS and WEEE marking.
Applications
- Factory automation
- Building automation
- Home automation
| Product type: | Serial-to-Ethernet converter |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | raw TCP, Virtual COM |
| Ports: | 4 serial |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80188, 40MHz or compatible |
| EEPROM | 2K Bytes |
| Flash | 512K bytes |
| SRAM | 384K bytes |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | Yes |
| Ethernet | |
| Ports | 10BASE-T NE2000 compatible Ethernet Controller |
| COM Ports | |
| Ports | 2 x RS-232 (TXD, RXD, RTS, CTS, GND) 1 x RS-485 (Data+, Data-) 1 x RS-232 (TXD, RXD, RTS, CTS, GND, DCD, DTR, DSR, RI) |
| Baud Rate | 115200 bps Max. |
| Parity | Even, Odd, None |
| Data Bit | 7, 8 |
| Stop Bit | 1 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 VDC ~ +30 VDC (non-regulated) |
| Consumption | 2W |
| Mechanical | |
| Dimensions (mm) | 123 mm x 72 mm x 33 mm |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +80 °C |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
