I-2533CS CAN to Single-mode Fibre Bridge, 30 km SC Link
Local CAN-to-fibre bridge that links two CAN networks over single-mode fibre up to 30 km, with 2500 Vrms CAN-side isolation and a baud rate range of 10 k ~ 1 M bps.
- Single-mode fibre link via SC duplex connector, 100 Base-FX, up to 30 km at any CAN baud rate
- Supports CAN 2.0A and CAN 2.0B, fully compatible with ISO 11898-2
- 2500 Vrms isolation on the CAN side
- Each CAN network operates independently, with different baud rates allowed on either side

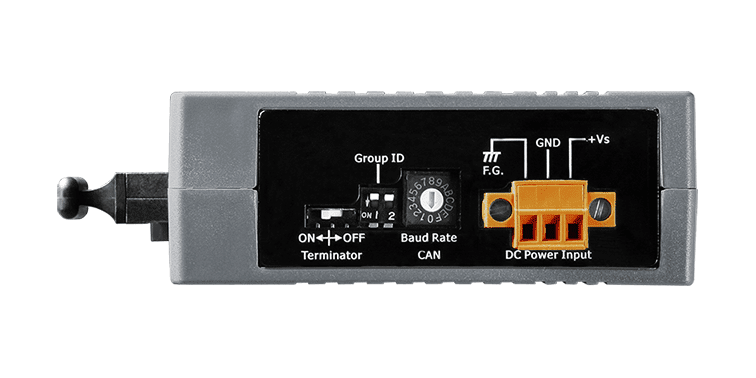

- User-defined CAN baud rate plus rotary switch baud rate configuration
- Fibre broken line detection and LED indicators for power, CAN and fibre status
2 896,67 kr per st.
| 1–9 st. | 2 896,67 kr | |
|---|---|---|
| 10–30 st. | 2 819,28 kr | −3 % |
| 31+ st. | 2 752,94 kr | −5 % |
Produktinformation "I-2533CS CAN to Single-mode Fibre Bridge, 30 km SC Link"

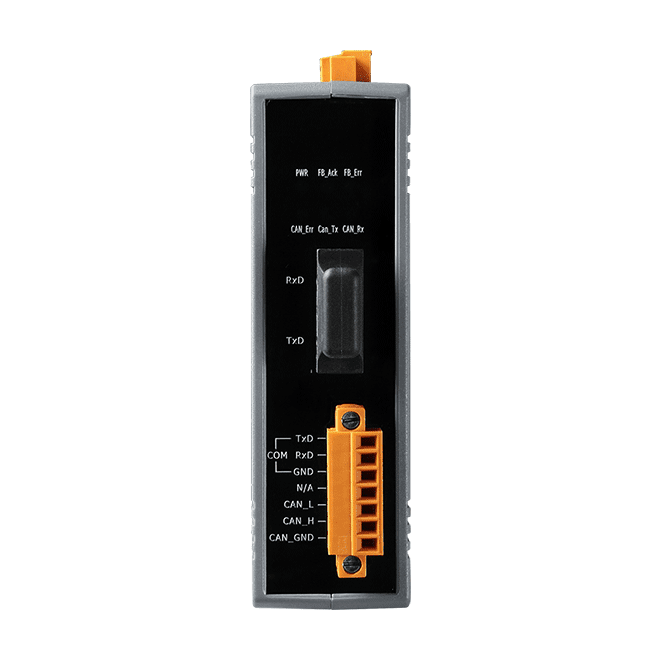

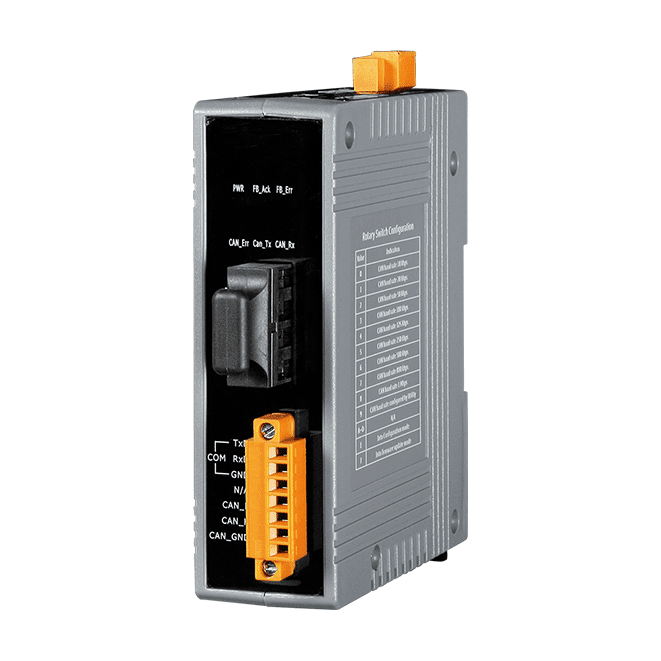

I-2533CS CR is a local CAN bridge that carries CAN bus signals over single-mode fibre, allowing two CAN networks to be joined across distances that copper cabling cannot cover. The link reaches up to 30 km at any CAN baud rate, so the reach of each bus segment is not reduced when the networks run at different speeds.
Each CAN network is isolated from the other, so a bus error on one side does not disrupt operation on the other. Both sides can run at different baud rates, and the bridge also supports user-defined baud rates. Fibre broken line detection and a utility tool for CAN message filter configuration help with commissioning and fault finding.
The unit mounts on DIN-rail and uses a removable terminal block for easy installation in control cabinets.
Applications
- Remotely Operated Underwater Vehicle (ROV) systems
- Extending CAN bus networks over long fibre runs
| Product type: | CAN bridge |
|---|---|
| Interface: | 100 Base-FX single-mode SC, CAN |
| Protocol: | CAN 2.0A, CAN 2.0B |
| Ports: | 1 |
| Isolation: | 2500 Vrms (CAN side) |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| LED Indicators | |
|---|---|
| Status | 1 x Power 3 x CAN status 2 x Fiber status |
| COM Ports | |
| Ports | 1 x RS-232 (Utility Port) |
| Fiber | |
| Ports | Single-Mode; SC Duplex connector x 1; 100 Base-FX |
| Fiber Cable | 8.3/125, 8.7/125, 9/125 or 10/125 μm |
| Wavelength | 1310 nm |
| TX Output | -15 dBmMin. , -8 dBm Max. |
| Transmission Distance | 30 km (9/125 μm recommended) |
| RX Sensitivity | -34 dBm Max. |
| RX Overload | -5 dBm Max. |
| Budget | 19 dBm |
| Propagation Delay | 190 us (*Note1) |
| CAN | |
| Ports | 1 |
| Specification | ISO 11898-2, CAN 2.0A and CAN 2.0B |
| Baud Rate | 10 k ~ 1 M bps |
| Isolation | 2500 Vrms on the CAN side |
| Terminal Resistor | Switch for 120Ω terminal resistor |
| Filter | Yes |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 3 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 126 x 101 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
