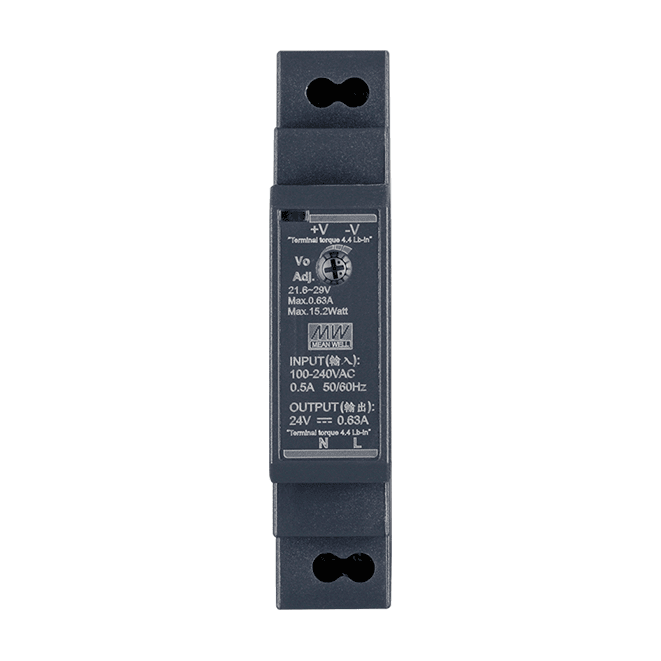

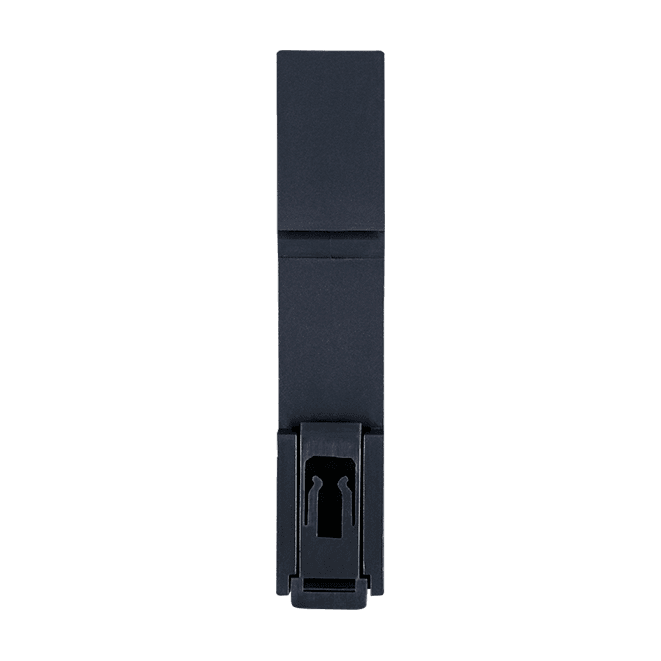

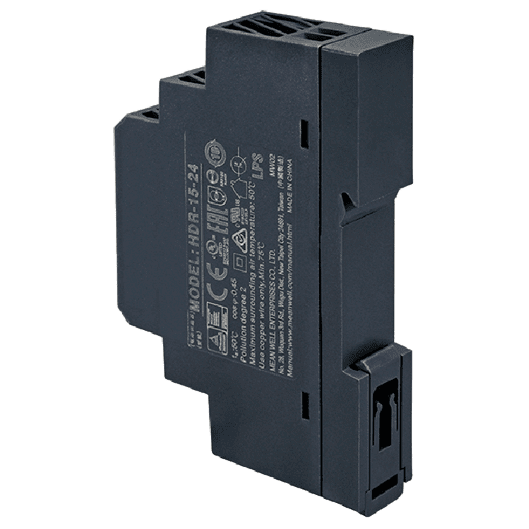

HDR-15-24 Ultra Slim DIN-Rail Power Supply, 24 VDC / 0.63 A Output
Ultra slim 17.5 mm DIN-rail power supply with universal 85-264 VAC input and a 24 VDC / 0.63 A output. Output voltage is adjustable from 21.6 to 29 V.
- Ultra slim 17.5 mm DIN-rail housing with plastic casing
- Universal input, 85-264 VAC (277 VAC available) or 120-370 VDC (390 VDC available)
- 24 VDC output, 0.63 A rated current, 15.2 W rated power
- Adjustable DC output voltage, 21.6 to 29 V
- Overvoltage protection 30-36 V and overload protection 110-145% of rated output power
- Ripple and noise 150 mVp-p max., voltage tolerance ±1.0%
210,06 kr per st.
| 1–9 st. | 210,06 kr | |
|---|---|---|
| 10–30 st. | 199,01 kr | −5 % |
| 31+ st. | 199,01 kr | −5 % |
Produktinformation "HDR-15-24 Ultra Slim DIN-Rail Power Supply, 24 VDC / 0.63 A Output"
HDR-15-24 CR is a compact DIN-rail power supply rated at 15.2 W, providing 24 VDC at 0.63 A from a universal AC input. Its 17.5 mm width suits space-constrained control cabinets where panel real estate is limited.
The input accepts 85-264 VAC at 47-63 Hz, with a 277 VAC option and a 120-370 VDC input range also listed in the source data. The output voltage can be adjusted between 21.6 and 29 V. Voltage tolerance, linearity and load regulation are each specified at ±1.0%, and ripple and noise are rated at 150 mVp-p maximum.
Protection features include overvoltage protection at 30-36 V and overload protection at 110-145% of rated output power. The unit operates from -30 to +70 °C and stores from -40 to +85 °C, with 20-90% RH non-condensing humidity. It has a plastic casing measuring 17.5 x 54.5 x 90 mm and carries CE, RoHS and WEEE marks.
| Product type: | Power supply |
|---|---|
| Power input: | 85-264 VAC / 120-370 VDC |
| Operating temperature: | -30 ~ +70 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| Safety | |
|---|---|
| Standard | UL62368-1, U 508, TUV EN61558-2-16 IEC62368-1, , BSMI CNS14336-1 a L , |
| EMC | |
| Standard | EN55024, EN55035, EN61000-6-2, EN61204-3 |
| Input | |
| Voltage Range | 85-264 VAC (277 VAC available) 120-370 VDC (390 VDC available) |
| Frequency Range | 47 ~ 63 Hz |
| Inrush Current (Typ.) | COLD START 20 A/115 VAC 40 A/230 VAC |
| Output | |
| Ripple & Noise (Max.) | 150mVp-p |
| Voltage Adj. Range | 21.6 ~ 29 V |
| Voltage Tolerance | ±1.0% |
| Linearity | ±1.0% |
| Load Regulation | ±1.0% |
| Setup, Rise Time | 2000ms, 80ms/230VAC 2000ms, 80ms/115VAC at full load |
| DC Voltage | 24 VDC |
| Rated Power | 15.2 W |
| Rated Current | 0.63A |
| Efficiency | 86% typ. |
| Protection | |
| Over Voltage | 30 ~ 36V |
| Overload | 110 ~ 145% rated output power |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | (17.5 * 54.5 * 90) mm |
| Environment | |
| Operating Temperature | -30 ~ +70 °C |
| Storage Temperature | -40 ~ +85°C |
| Humidity | 20 ~ 90% RH Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
