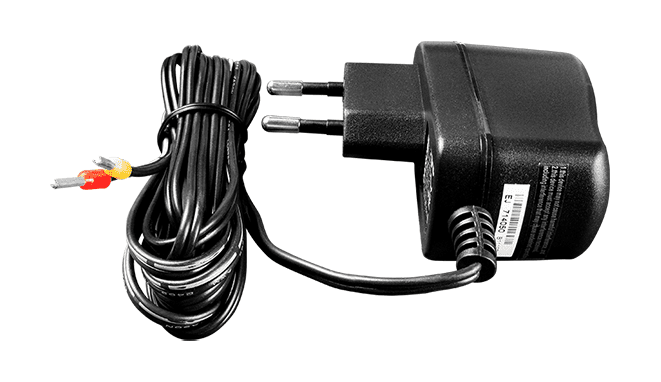

GPSU06E-6 Power Supply, 110~240 VAC to 24 VDC/0.25 A, 6 W
Universal-input 6 W power supply delivering 24 VDC at 0.25 A from 100-240 VAC, with a two-pin EURO plug and a fully enclosed plastic case.
- Universal input from 100-240 VAC, 50/60 Hz
- Regulated 24 VDC output, 0.25 A rated, 6 W
- Short-circuit, overload and over-voltage protection with hiccup-mode recovery
- No-load power consumption below 0.3 W; ErP step2 and EISA 2007 compliant
- Two-pin EURO plug (no earth pin), passes LPS
- Fully enclosed plastic case, 62.5 x 32 x 66 mm
265,91 kr per st.
| 1–9 st. | 265,91 kr | |
|---|---|---|
| 10–30 st. | 254,83 kr | −4 % |
| 31+ st. | 254,83 kr | −4 % |
Produktinformation "GPSU06E-6 Power Supply, 110~240 VAC to 24 VDC/0.25 A, 6 W"
The GPSU06E-6 CR converts a universal 100-240 VAC, 50/60 Hz mains supply into a regulated 24 VDC output rated at 0.25 A (6 W). Its two-pin EURO plug and compact plastic enclosure measuring 62.5 x 32 x 66 mm make it a straightforward choice where a small, low-power DC source is needed from a wide range of mains voltages.
Output regulation and protection are built in. The unit provides short-circuit, overload and over-voltage protection, with overload trips above 110% of rated output power and recovery in hiccup mode once the fault is removed. Hold-up time is 5 ms minimum, and the no-load power consumption is below 0.3 W, in line with ErP step2 and EISA 2007 requirements.
Approvals cover CE, UKCA, FCC, RoHS and WEEE. The supply is rated for operation from 0 to +40 °C and storage from -20 to +85 °C, at 20 to 90% RH non-condensing.
| Product type: | Power supply |
|---|---|
| Power input: | 100-240 VAC |
| Operating temperature: | 0 ~ +40 °C |
| Housing: | Plastic |
Specifikationer
| Safety | |
|---|---|
| Standard | Meets or exceeds UL1950,CSA C22.2, TUV EN60950, IEC950. |
| EMC | |
| Standard | Meets conduction limits of FCC Part 15 Class B, CISPR 22.2 |
| Input | |
| Voltage Range | 100-240 VAC |
| Frequency Range | 50/60 Hz |
| Inrush Current (Typ.) | COLD START 15 A @ 115 VAC, or 30 A @ 230 VAC at 25°C 50MOhm min from output to ground (max.) |
| Leakage Current | 0.25 mA/240 VAC (max.) |
| Output | |
| Ripple & Noise (Max.) | 1% p-p max. |
| Linearity | 1% max for input voltage change between input voltage range |
| Load Regulation | 5% variations from min to max output current. |
| Setup, Rise Time | 1000ms, 50ms, 12ms at full load |
| Hold Up Time (Typ.) | 5msec min. |
| DC Voltage | 24 VDC |
| Rated Power | 6 W |
| Rated Current | 0.25 A |
| Efficiency | 65% min at full output. |
| Protection | |
| Over Voltage | Yes (clamp by Zener diode) |
| Overload | >110% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | (62.5 * 32 * 66)mm |
| Environment | |
| Temperature Coefficient | All outputs 0.04%/°C max. |
| Operating Temperature | 0°C ~ +40°C |
| Storage Temperature | -20°C ~ +85°C |
| Humidity | 20~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
