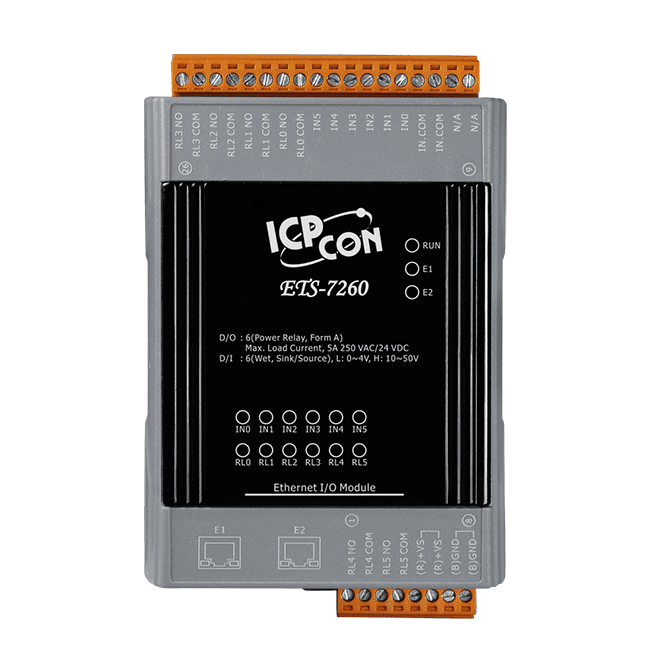

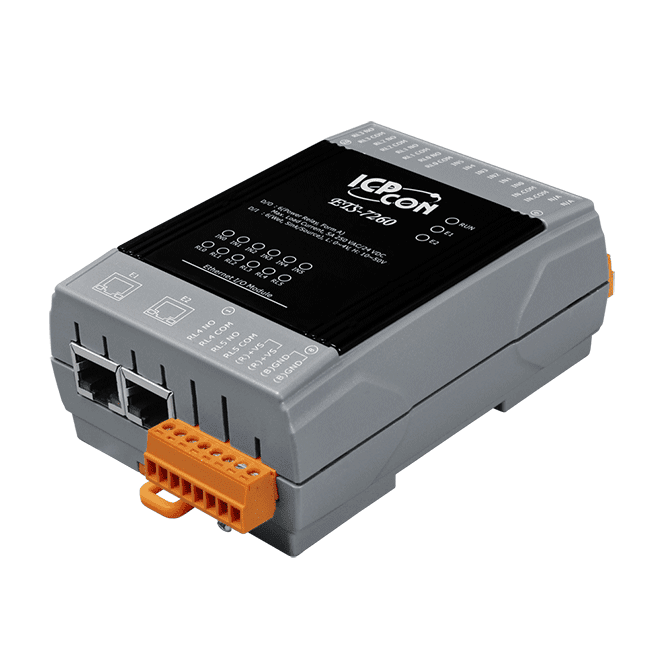

ETS-7260 Ethernet I/O Module, 6-ch DI and 6-ch Power Relay Output
Ethernet I/O module with 6 wet contact digital inputs (32-bit counter capable), 6 form A power relays and a 2-port switch for daisy-chain wiring, with Modbus TCP and MQTT support.
- Six wet contact digital inputs (sink/source), each usable as a 32-bit counter
- Six form A (SPST N.O.) power relays rated 5 A @ 250 VAC/24 VDC, resistive load
- Built-in 2-port Ethernet switch for daisy-chain topology, with LAN bypass
- Modbus TCP, Modbus TCP/TLS, MQTT, REST API, CoAP and LwM2M support
- Dual watchdog with programmable power-on and safe values for relay outputs
- Web interface with IF-THEN-ELSE logic, no programming required
2 841,39 kr per st.
| 1–9 st. | 2 841,39 kr | |
|---|---|---|
| 10–30 st. | 2 764,00 kr | −3 % |
| 31+ st. | 2 697,66 kr | −5 % |
Produktinformation "ETS-7260 Ethernet I/O Module, 6-ch DI and 6-ch Power Relay Output"
The ETS-7260 CR combines six wet contact digital inputs and six form A power relays in one DIN-rail Ethernet I/O module. Each input can be used as a 32-bit counter, and the relay power-on and safe values are programmable, which suits remote monitoring and control in IIoT installations.
Connectivity is handled by a 2-port 10/100 Base-TX switch, so units can be daisy-chained along a line. Supported protocols include Modbus TCP, Modbus TCP/TLS, MQTT (optional TLS), REST API, CoAP and LwM2M. A web interface with IF-THEN-ELSE logic lets engineers build simple automation rules without writing code.
Isolation is rated at 3000 VDC for the I/O and 1500 VDC for Ethernet, but there is no channel-to-channel isolation. When switching inductive loads, fit a flyback diode for DC loads or a metal oxide varistor for AC loads to protect the relay contacts.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Digital inputs: | 6 |
| Relay outputs: | 6 |
| Ports: | 2 |
| PoE: | Yes, IEEE 802.3af Class 2 |
| Isolation: | I/O 3000 VDC, Ethernet 1500 VDC |
| Power input: | +12 to +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| Function | • Web Interface for Configuration • IF-THEN-ELSE Logic operation • I/O channel monitoring and control • Timer operation • Schedule operation • Internal Register operation |
| CPU Module | |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Digital Input/Counter | |
| Channels | 6 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +10 to +50 VDC |
| OFF Voltage Level | +4 VDC (max.) |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Input Impedance | 10 kΩ |
| Overvoltage Protection | +70 VDC |
| Relay Output | |
| Channels | 6 |
| Type | Power Relay, Form A (SPST N.O.) |
| Contact Rating | 5 A @ 250 VAC/24 VDC (Resistive Load) |
| Operate Time | 10 ms (max.) |
| Release Time | 5 ms (max.) |
| Electrical Endurance | 10^5 ops. |
| Mechanical Endurance | 2 × 10^7 ops. |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus TCP/TLS, Modbus UDP, MQTT, Rest API, CoAP, LwM2M, SNMP, SMTP, SNTP, HTTP/HTTPS |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 3.9 W (max.) |
| Powered from PoE | Yes, IEEE 802.3af, Class 2 |
| Powered from Terminal Block | +12 to +48 VDC |
| Mechanical | |
| Dimensions (mm) | 76 x 120 x 38 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 to +75°C |
| Storage Temperature | -30 to +80°C |
| Humidity | 10 to 90% RH, Non-condensing |
