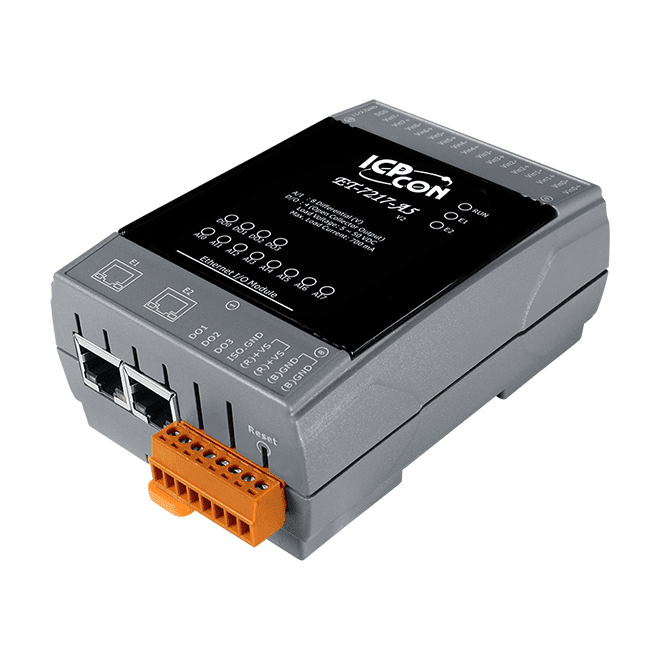

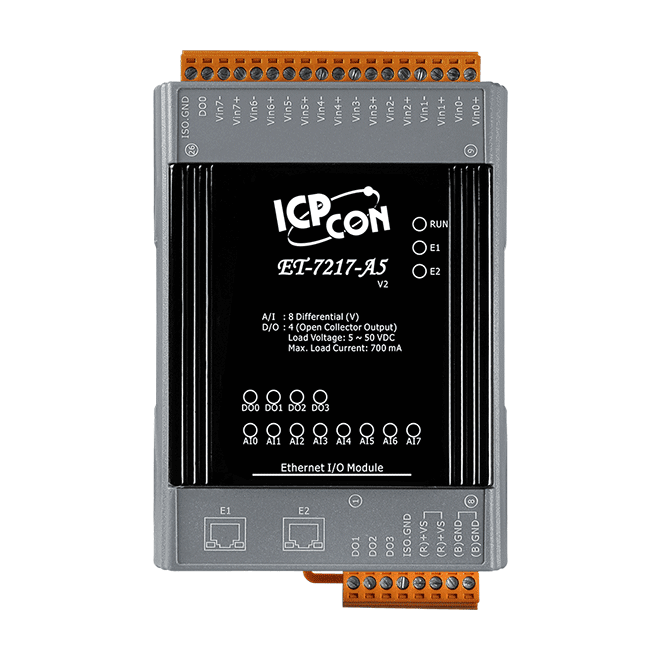

ET-7217-A5 Ethernet I/O Module, 8-ch High-Voltage AI, 4-ch DO, Modbus TCP
Ethernet I/O module with 8 differential high-voltage analog inputs, 4 isolated open-collector digital outputs and a 2-port switch for Modbus TCP/UDP daisy-chain networks.
- 8 differential high-voltage analog inputs, selectable ±50 V or ±150 V per channel
- 16-bit resolution with normal mode at 10 Hz and fast mode at 50 Hz (total channels)
- 4 isolated open-collector digital outputs (sink), 700 mA per channel, with short-circuit protection
- 2-port 10/100 Base-TX Ethernet switch with LAN bypass for daisy-chain topology
- Modbus TCP and Modbus UDP support
- Built-in web server and web HMI for configuration and remote monitoring
3 471,58 kr per st.
| 1–9 st. | 3 471,58 kr | |
|---|---|---|
| 10–30 st. | 3 361,02 kr | −3 % |
| 31+ st. | 3 294,69 kr | −5 % |
Produktinformation "ET-7217-A5 Ethernet I/O Module, 8-ch High-Voltage AI, 4-ch DO, Modbus TCP"
The ET-7217-A5 combines eight differential high-voltage analog inputs and four digital outputs in a DIN-rail Ethernet module. Each input channel can be set independently to ±50 V or ±150 V, so one module can cover mixed voltage signals without extra signal conditioning. Digital outputs are isolated open-collector sink type, rated for 700 mA per channel.
Networking is handled by a built-in 2-port 10/100 Base-TX switch with LAN bypass, which allows modules to be daisy-chained along a line. The module supports Modbus TCP and Modbus UDP, and a built-in web server with web HMI allows configuration and remote monitoring from a browser. Access control uses ID, password and IP filter.
Reliability features include a dual watchdog covering the module and communication, programmable power-on and safe values for the digital outputs, and I/O pair connection. Isolation is rated at 2500 VDC for I/O and 1500 VDC for Ethernet. The module operates from -25 ~ +75 °C.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP |
| Digital outputs: | 4 |
| Analog inputs: | 8 |
| Ports: | 2 |
| Isolation: | 2500 VDC (I/O), 1500 VDC (Ethernet) |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±2 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Analog Input | |
| Channels | 8 (Differential) |
| Type | Voltage |
| Range | ±50 V, ±150 V |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.1% Fast Mode: ±0.5% or better |
| Sampling Rate | Normal Mode: 10 Hz (total channels) Fast Mode: 50 Hz (total channels) |
| Input Impedance | Voltage: 290 kΩ |
| Common Voltage Protection | ±200 VDC |
| Overvoltage Protection | ±200 VDC |
| Individual Channel Configuration | Yes |
| Isolation | ±400 VDC, Virtual Channel to Channel Isolation |
| Digital Output | |
| Channels | 4 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 ~ +50 VDC |
| Load Current | 700 mA/channel |
| Overvoltage Protection | +60 VDC |
| Overload Protection | 1.4 A |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 4.2 W (max.) |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | 76 x 120 x 42 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
