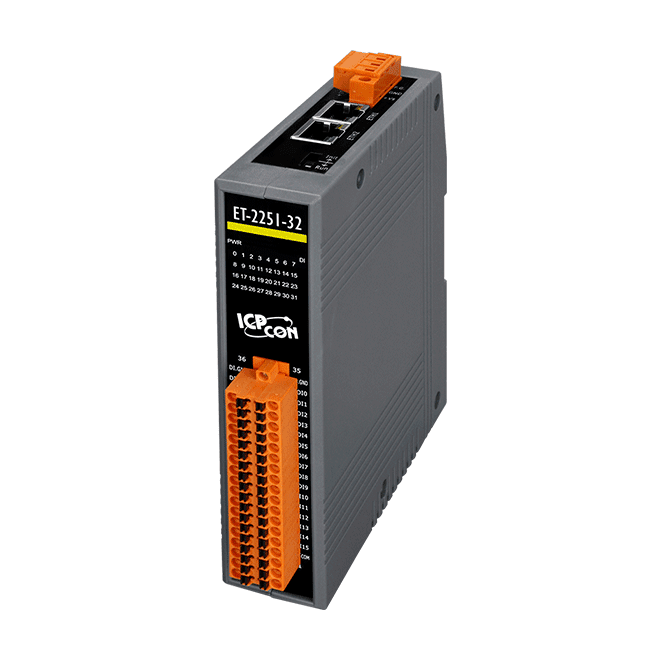

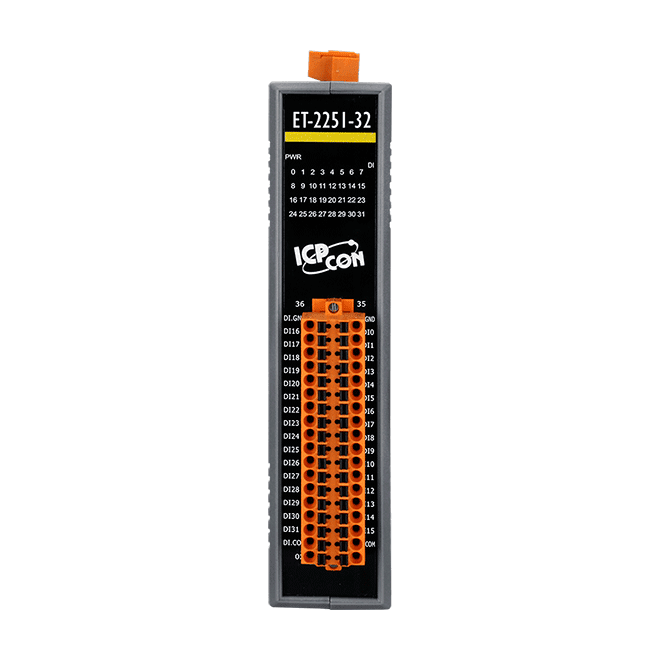

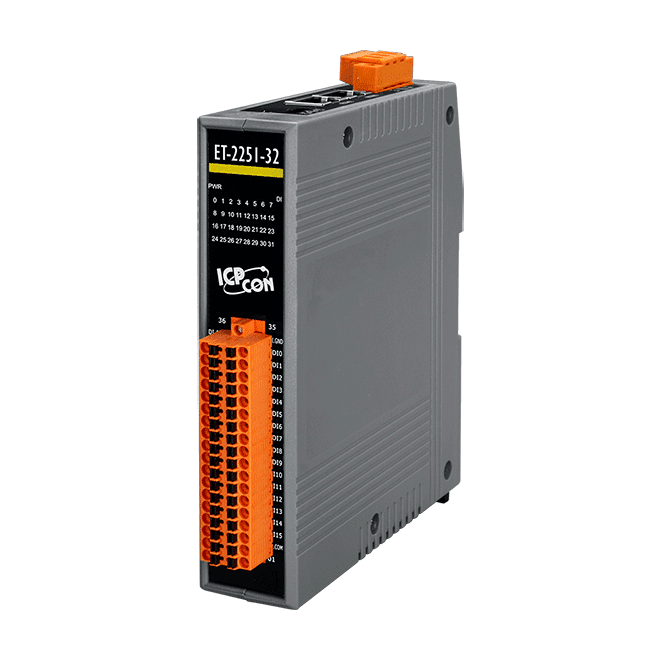

ET-2251-32 Ethernet I/O Module, 32-ch DI with 2-port Ethernet Switch
32-channel Wet/Dry digital input module with a built-in 2-port Ethernet switch for daisy-chain wiring, supporting Modbus TCP/UDP, MQTT and SNMP V2c.
- 32 digital input channels, Wet and Dry contact types, with each channel usable as a 32-bit counter
- Built-in 2-port 10/100 Base-Tx Ethernet switch with LAN bypass for daisy-chain wiring
- Modbus TCP and Modbus UDP, MQTT and SNMP V2c protocol support
- Built-in web server for configuration, with password and IP filter access control
- I/O pair connection (Push and Pull) for DI-to-DO pairing across Ethernet
- Dual-watchdog support with programmable module and communication watchdog
2 697,66 kr per st.
| 1–9 st. | 2 697,66 kr | |
|---|---|---|
| 10–30 st. | 2 609,22 kr | −3 % |
| 31+ st. | 2 553,94 kr | −5 % |
Produktinformation "ET-2251-32 Ethernet I/O Module, 32-ch DI with 2-port Ethernet Switch"
The ET-2251-32 is an Ethernet remote I/O module that brings 32 Wet/Dry digital inputs onto an Ethernet network. Each channel can also operate as a 32-bit counter, with a maximum count of 4,294,967,295, so it suits pulse counting alongside status monitoring.

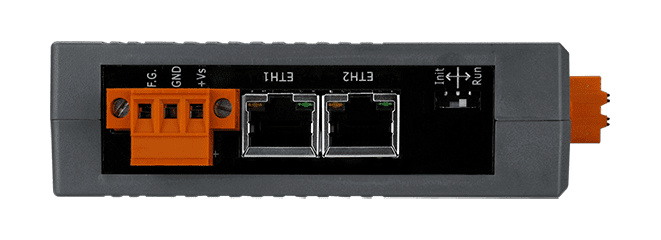

A built-in 2-port 10/100 Base-Tx switch with LAN bypass allows modules to be daisy-chained along a line, reducing the switching hardware and cabling needed for distributed inputs. Configuration is handled through the built-in web server, and I/O pair connections can push local DI states to remote DO channels over Modbus TCP.
For integration with higher-level systems, the module acts as an MQTT publisher and subscriber and can report I/O status through SNMP V2c, with Trap messages sent on input changes or restarts. EMS protection and 3000 VDC I/O isolation support operation in electrically noisy plant environments.
Applications
- Factory automation
- Machine automation
- Building automation
- Remote diagnosis and maintenance
- Testing equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP, MQTT, SNMP v2c |
| Digital inputs: | 32 |
| Ports: | 2 |
| Isolation: | 3000 VDC (I/O) |
| Power input: | +10 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| CPU | 32-bit ARM |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Digital Input/Counter | |
| Channels | 32 |
| Type | Dry Contact Wet Contact |
| Sink/Source (NPN/PNP) | Dry: Source Wet: Sink/Source |
| ON Voltage Level | Dry: Close to GND Wet: +5 ~ +50 VDC |
| OFF Voltage Level | Dry: Open Wet: +1 VDC (max.) |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 2.5 kHz |
| Input Impedance | 7.5 kΩ |
| Overvoltage Protection | +70 VDC |
| Low Pass Filter | 1 ~ 6500 ms (0.08 Hz ~ 500 Hz) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-Tx, Switch Ports |
| LAN bypass | Yes |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, MQTT, SNMP V2c |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 3.8 W (max.) |
| Powered from Terminal Block | +10 ~ +48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 31 x 157 x 129 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
