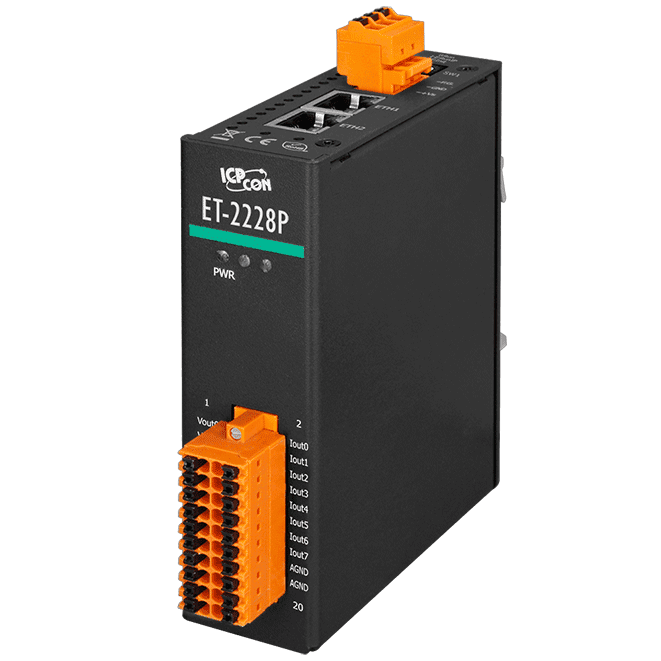

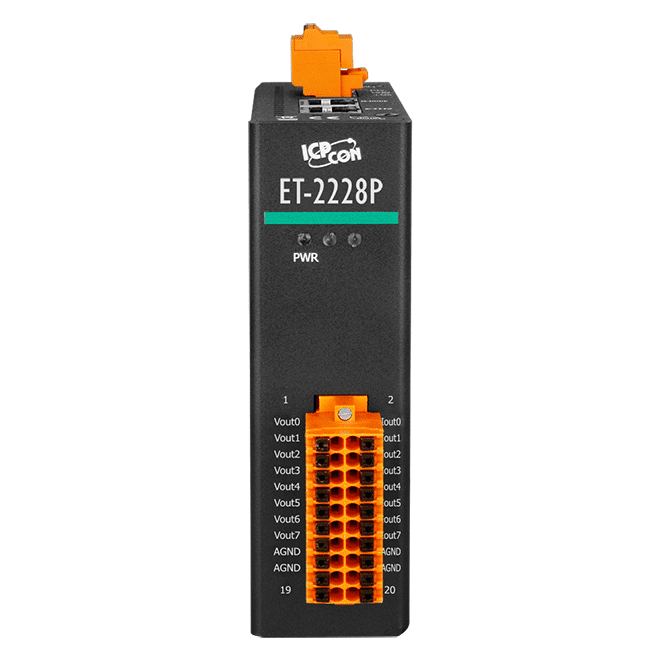

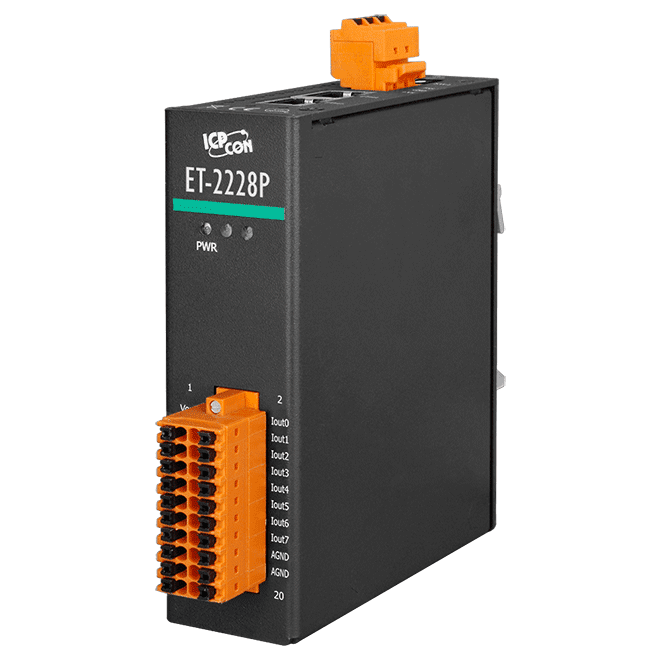

ET-2228P Ethernet I/O Module, 8-ch 16-bit Analog Output with 2-port Switch
16-bit, 8-channel analog output module with Modbus TCP/UDP, MQTT and SNMP V2c support and a built-in 2-port Ethernet switch for daisy-chain wiring.
- Eight 16-bit analog output channels with voltage and current ranges
- Programmable power-on and safe values, with individual channel configuration
- Open wire detection for each 4 ~ 20 mA output
- Built-in 2-port Ethernet switch with LAN bypass for daisy-chain topology
- Modbus TCP/UDP, MQTT and SNMP V2c support
- Dual-watchdog, web server configuration and password and IP filter access control
5 572,22 kr per st.
| 1–9 st. | 5 572,22 kr | |
|---|---|---|
| 10–30 st. | 5 406,38 kr | −3 % |
| 31+ st. | 5 295,82 kr | −5 % |
Produktinformation "ET-2228P Ethernet I/O Module, 8-ch 16-bit Analog Output with 2-port Switch"
The ET-2228P CR provides eight analog output channels at 16-bit resolution. Voltage outputs cover 0 ~ +5 VDC, ±5 VDC, 0 ~ +10 VDC and ±10 VDC, while current outputs cover 0 ~ 20 mA and 4 ~ 20 mA. Each channel is configured individually, and both power-on and safe output values are programmable. Open wire detection is available on the 4 ~ 20 mA channels.

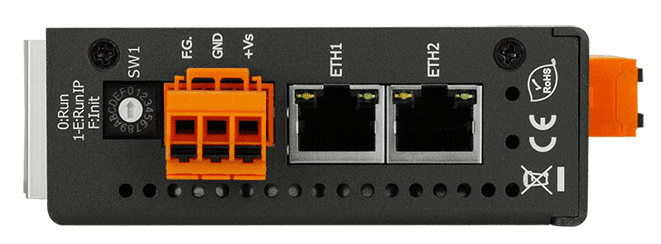

A built-in 2-port 10/100 Base-Tx switch with LAN bypass supports daisy-chain wiring, which simplifies installation and can reduce infrastructure costs. The module offers dual-watchdog support, web-based configuration and password and IP filter access control. EMS protection (EFT, ESD and surge) and 3000 VDC I/O isolation are provided for electrically noisy industrial environments.
Communication options include Modbus TCP/UDP, MQTT and SNMP V2c. As an MQTT publisher and subscriber, the module can publish I/O status as topics to a broker and act on subscribed messages, with automatic reconnection and a Keep-Alive interval. Under SNMP V2c it reports module and I/O information to network management software, and its Trap function can notify administrators of I/O changes or restarts.
Applications
- Factory Automation
- Machine Automation
- Building Automation
- Remote Diagnosis & Maintenance
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP, MQTT, SNMP v2c |
| Analog outputs: | 8 |
| Ports: | 2 |
| Isolation: | 3000 VDC I/O |
| Power input: | +10 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifikationer
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| CPU | 32-bit ARM |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet |
| Analog Output | |
| Channels | 8 |
| Type | Voltage, Current |
| Range | Voltage: 0 ~ +5 VDC, ±5 VDC, 0 ~ +10 VDC, ±10 VDC Current: 0 ~ 20 mA, 4 ~ 20 mA |
| Resolution | 16-bit |
| Accuracy | ±0.1% of FSR |
| Short Circuit Protection | Yes |
| DA Output Response Time | 1 ms per channel |
| Programmable Output Slope | Voltage: 0.0625 ~ 512 V/Second Current: 0.125 ~ 1024 mA/Second |
| Open Wire Detection | For 4 ~ 20 mA only |
| Voltage Output Capability | 10 V @ 10 mA |
| Current Load Resistance | 500 Ω |
| Individual Channel Configuration | Yes |
| Power-on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-Tx, Switch Ports |
| LAN bypass | Yes |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, MQTT, SNMP V2c |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 6.2 W (max.) |
| Powered from Terminal Block | +10 ~ +48 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 33 x 126 x 117 (W x L x H) |

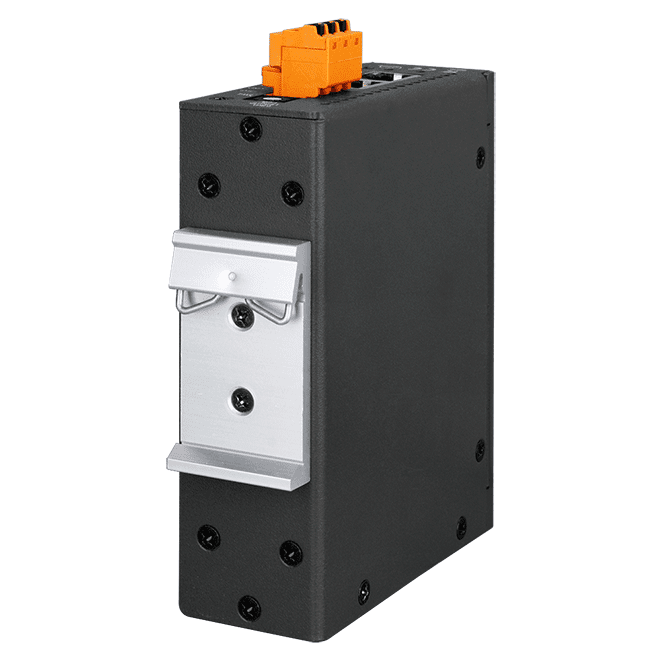

| Installation | DIN-Rail mounting / Wall mounting (Optional ASO-0015) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
