DN-8368MB 3-Axis Motion Control Terminal Board for Mitsubishi MELSERVO-J2
Three-axis stepper and servo terminal board with high-speed photo-coupling isolation, designed for Mitsubishi MELSERVO-J2 servo amplifiers and ICP DAS 6-axis motion controllers.
- Three axes of pulse command output for stepper or servo motors, matched to Mitsubishi MELSERVO-J2 servo amplifiers
- High-speed photo-coupling isolation to protect the controller
- Screw terminal connectors with interchangeable axis connectors, avoiding rewiring when reassigning axes
- Encoder feedback, home, near-home and limit switch inputs, plus servo signals such as Srv_On, ERC, ALM_RST, RDY, Alarm and INP
- On-board power module supplying internal voltages; 20 to 26 VDC input, 0.5 A, 12 W consumption at 24 VDC
- Power LED and status LEDs for home and limit switches
2 598,16 kr per st.
| 1–9 st. | 2 598,16 kr | |
|---|---|---|
| 10–30 st. | 2 520,77 kr | −3 % |
| 31+ st. | 2 465,49 kr | −5 % |
Produktinformation "DN-8368MB 3-Axis Motion Control Terminal Board for Mitsubishi MELSERVO-J2"

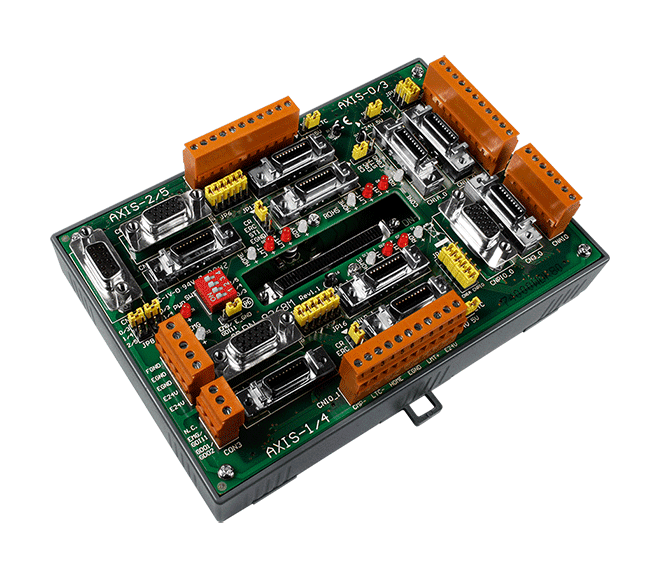

The DN-8368MB CR is a three-axis daughter board that connects pulse-command stepper or servo drives to ICP DAS motion controllers. It is built for Mitsubishi MELSERVO-J2 servo amplifiers, and each axis group carries pulse output, encoder feedback, mechanical switch inputs and the servo signals needed for wiring to the amplifier.
Two boards are required to drive six axes on ICP DAS 6-axis controllers such as the PISO-PS600, PISO-VS600 and PMDK. Each axis is wired through screw terminal connectors, and the connectors can be swapped between axes to change the axis assignment without rewiring. High-speed photo-coupling isolation helps protect the controller.
The board includes an on-board power module that supplies the voltages required by its own circuitry, along with a power LED and status LEDs for home, limit and other switch signals. It is rated for 20 to 26 VDC input and operates from -20 to +75 °C.
Applications
- Three-axis stepper or servo positioning with Mitsubishi MELSERVO-J2 servo amplifiers
- Motion axis expansion for ICP DAS 6-axis controllers such as PISO-PS600, PISO-VS600 and PMDK
| Product type: | Motion control daughter board |
|---|---|
| Interface: | Screw terminal |
| Isolation: | High-speed photo-coupling |
| Power input: | 20 ~ 26 VDC |
| Operating temperature: | -20 ~ +75 °C |
Specifikationer
| Power | |
|---|---|
| Input Range | 20 ~ 26 VDC, 0.5 A |
| Consumption | 12 W (24 VDC) |
| Mechanical | |
| Dimensions (mm) | 162 mm X 107 mm |
| Environment | |
| Operating Temperature | -20 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
