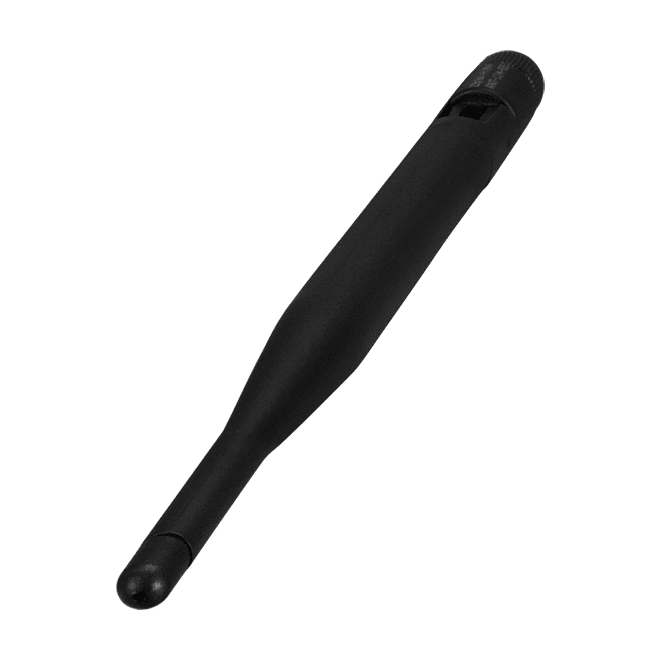

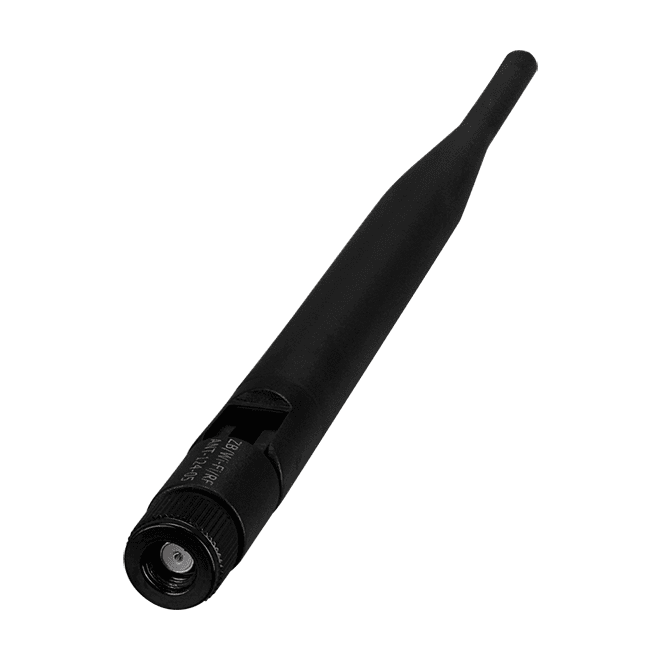

ANT-124-05 5 dBi 2.4 GHz RP-SMA Omni-directional Dipole Antenna
5 dBi omni-directional dipole antenna for the 2.4 to 2.5 GHz band, with an RP-SMA male plug connector and an operating range of -30 °C to +85 °C.
- 5 dBi gain omni-directional dipole antenna
- Covers 2.4 to 2.5 GHz band
- RP-SMA male plug connector
- Operating temperature -30 °C to +85 °C
- Dimensions φ13 x 196 mm, weight 23 ± 2 g
- Listed as RoHS and WEEE
165,84 kr per st.
| 1–9 st. | 165,84 kr | |
|---|---|---|
| 10–30 st. | 165,84 kr | |
| 31+ st. | 165,84 kr |
Produktinformation "ANT-124-05 5 dBi 2.4 GHz RP-SMA Omni-directional Dipole Antenna"
The ANT-124-05 is a 5 dBi omni-directional dipole antenna for 2.4 GHz wireless links. It terminates in an RP-SMA male plug, so it attaches directly to equipment with a matching reverse-polarity SMA socket.
Why choose it: the antenna covers the 2.4 to 2.5 GHz band and is rated for an operating temperature of -30 °C to +85 °C, which suits outdoor-facing or enclosed installations where the wider temperature range matters.
- Dipole element, 5 dBi gain
- Dimensions φ13 x 196 mm, weight 23 ± 2 g
- Listed as RoHS and WEEE compliant
Applications
- 2.4 GHz wireless links on equipment with an RP-SMA socket
| Product type: | Antenna |
|---|---|
| Interface: | RP-SMA |
| Operating temperature: | -30 ~ +85 °C |
Specifikationer
| Mechanical | |
|---|---|
| Dimensions (mm) | φ13 x 196 mm |
| Weight | 23 ± 2 g |
| Environment | |
| Operating Temperature | -30 °C ~ +85 °C |
| Antenna | |
| Type | Dipole |
| Connector | RP SMA Male (Plug) |
| Gain (dBi) | 5 |
| Band | 2.4 ~ 2.5GHz |
Specifikationer enligt tillverkaren. Ändringar förbehålls.
